Transition Networks CFETF1011-205 User Manual

Cfetf10xx-205 series slide-in-module media converter
Hide thumbs Also See for CFETF1011-205:
Table of Contents

Advertisement

Quick Links

Enlarged version
Trademark Notice
All trademarks and registered trademarks are the property of their respective owners.
Copyright Restrictions
© 2002 - 2005 Transition Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any
means - graphic, electronic, or mechanical - without written permission from Transition
Networks.
Printed in the U.S.A.
Part Number
CFETF1011-205
CFETF1013-205
CFETF1014-205
CFETF1015-205
CFETF1016-205
CFETF1017-205
CFETF1018-205
CFETF1019-205
CFETF1039-205
The CFETF1029-2xx model is the single mode, single fiber version of the media
converter. For more information, see the CFETF1029-2xx user's guide #33244 at:
www.transition.com.
* Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network
installation.
33234.J
User's Guide
CFETF10xx-205
Slide-in-Module Media Converter
•
Fast Ethernet
•
Copper to Fiber
•
100Base-TX to 100Base-FX

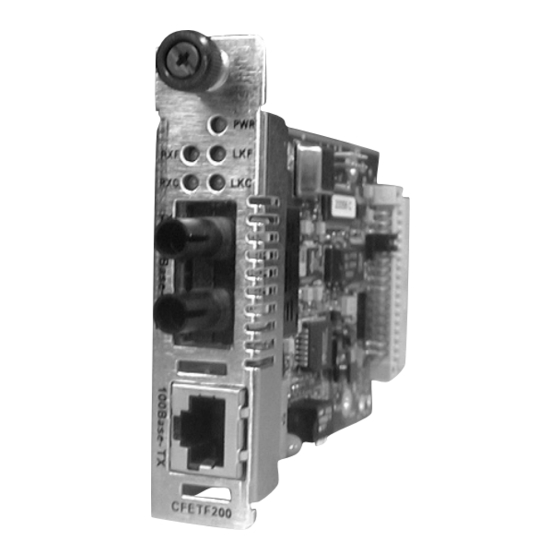

Transition Networks CFETF10xx-205 series Fast
Ethernet 100Base-TX to 100Base-FX media
converters connect 100Base-TX twisted-pair copper
cable to multimode or single mode 100Base-FX
fiber-optic cable. The CFETF10xx-205 is also
designed to be installed in a PointSystem™ chassis.
Port One - Copper
Port Two - Duplex Fiber-Optic
100Base-TX
100Base-FX
RJ-45
ST, 1300 nm multimode
100 m (328 ft)*
2 km (1.2 miles)*
RJ-45
SC, 1300 nm multimode
100 m (328 ft)*
2 km (1.2 miles)*
RJ-45
SC, 1310 nm single mode
100 m (328 ft)*
20 km (12.4 miles)*
RJ-45
SC, 1310 nm single mode
100 m (328 ft)*
40 km (24.9 miles)*
RJ-45
SC, 1310 nm single mode
100 m (328 ft)*
60 km (32.3 miles)*
RJ-45
SC, 1550 nm single mode
100 m (328 ft)*
80 km (49.7 miles)*
RJ-45
MT-RJ, 1300 nm multimode
100 m (328 ft)*
2 km (1.2 miles)*
RJ-45
LC, 1310 nm single mode
100 m (328 ft)*
20 km (12.4 miles)*
RJ-45
LC, 1300 nm multimode, 2 km (1.2
100 m (328 ft)*
miles)*
Installation . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . .10
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . .15
