CAPTF33xx-1xx
Installation
-- Continued

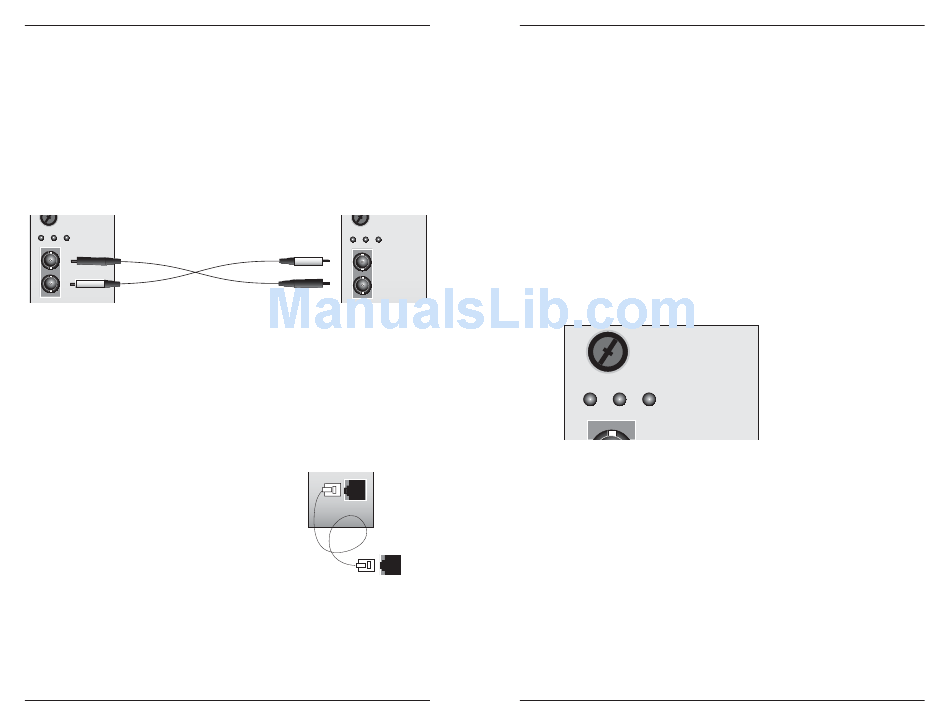

Install the Cable -- Automatic Ring-Down Configuration
NOTE: Both Unit B's must be configured for Automatic Ring-Down (see page 4).
Fiber
1. Locate or build fiber cable with male, two-stranded TX to RX connectors
installed at both ends.
2. Connect the fiber cables to the first Unit B (CAPTF33xx-110) as described:
• Connect the male TX cable connector to the female TX port.
• Connect the male RX cable connector to the female RX port.
Unit B
ACT SDF PWR
TX
RX
Copper
3. Connect the fiber cables to the second Unit B (CAPTF33xx-110) as
described:
• Connect the male TX cable connector to the female RX port.
• Connect the male RX cable connector to the female TX port.
Copper
1. Locate or build copper cables with male, RJ-11C connectors installed at
both ends.
2. Connect the copper cables to both Unit B's (CAPTF33xx-110) as
described:
• Connect the RJ-11C connector at one end
of the cable to the RJ-11C port on the
first Unit B.
• Connect the RJ-11C connector at the
other end of the cable to the RJ-11C port
on the telephone device.
3. Connect the copper cables to the second Unit
B (CAPTF33xx-110) as described in step 2.
8
24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600
Unit B
ACT SDF PWR
TX
RX
Unit B
Copper
Connect to the
RJ-11C connector
on the telephone device.

Operation

Power the Media Converter
The CAPTF33xx-1xx media converter is powered through the Transition
Networks PointSystem™ chassis..
Status LEDs
Use the status LEDs to monitor the CAPTF33xx-1xx media converter operation
in the network.
PWR (Power)
On = The media converter is connected to external power.
SDF (Signal Detect Fiber Link)
On = The fiber link is active.
ACT (Activity)
On = The telephone device is in use (off-hook).
Flashing = The telephone device is ringing or pulse-dialing.
ACT SDF PWR
SNMP
Use SNMP at an attached terminal or at a remote location to monitor the
media converter by monitoring:
• Media converter power.
• Copper and fiber link status.
• Copper in-use status.
• Media converter speed.
Also, use SNMP to enter network commands that:
• Disable the media converter.
See the on-line documentation that comes with Transition Networks
FocalPoint™ software for applicable commands and usage at
www.transition.com.
