Transition Networks ARCNET C/AR-CF-02(SC) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
ANSI/ATA 878
Delay
300ns one-way
Case dimensions
4.75" x 3.0" x 1.0"
Shipping Weight
2 pounds
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
CAUTION: Wear a grounding device and observe electrostatic discharge
precautions when installing Media Converter Slide-in-Module(s) in the
Media Conversion Center. Failure to observe this caution could result in
damage to, and subsequent failure of, the Media Converter Slide-in-
Module(s).
NOTE: Media Converter Slide-in-Modules can be installed in any installation slot,
in any order.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
ARCNET is a registered trademark of Datapoint Corporation.
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kilograms)
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
33096.A
®
ARCNET Coax Copper/Fiber
Slide-In-Module Media Converters
C/AR-CF-02, C/AR-CF-02(SC), C/AR-CF-02(SM)

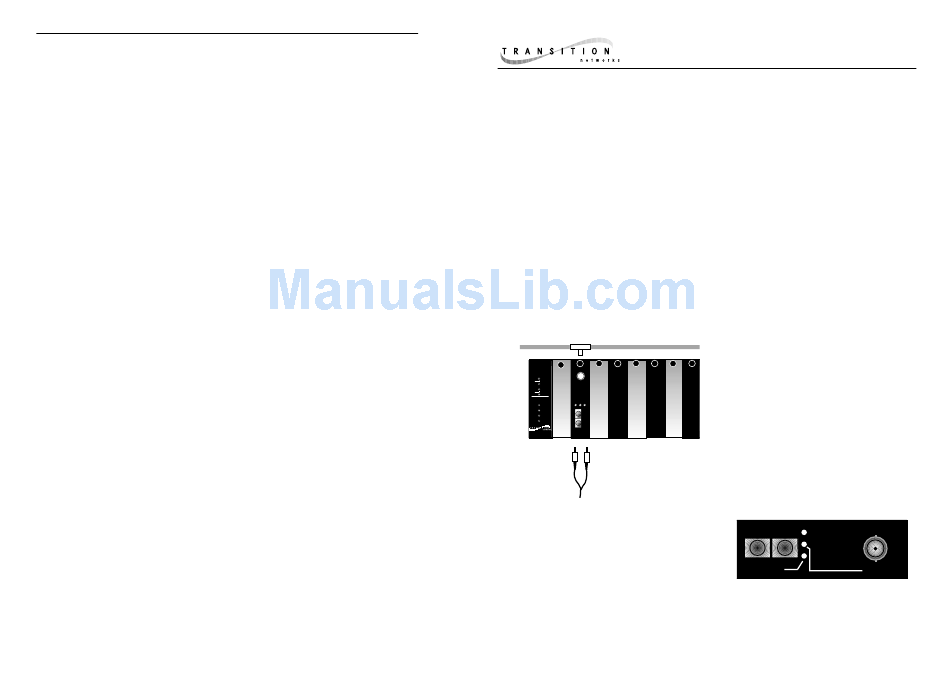

USER'S GUIDE
®
The TRANSITION Networks ARCNET
C/AR-CF-02), designed to be installed in the TRANSITION Networks Media
Conversion Center, E-MCC-1600, extends the signal distance of an ARCNET
segment or node link up to 2 kilometers over fiber*, up to 600 meters over coax cable in a
star topology, and up to 300 meters over coax cable in a bus topology. A switch on the
media converter allows the media converter to terminate the link or node signal.
Coax
STAR - to 600 meters (no minimum)
BUS - to 300 meters (1.8 meter minimum
Media
Conversion
Center
Power Modules
Power
1
In Use
Power
2
In Use
Management
Module
Power
Link
TX
RX
E-MCC-1600
Fiber
Multimode - to 2 kilometers
Singlemode - to 8 kilometers
STATUS LEDS
Power Steady green LED indicates
connection to external AC power.
Coax Blinking green LED indicates
network traffic on coaxial cable
link.
Fiber Blinking green LED indicates network traffic on fiber link.
*Consider carefully the network constraints imposed by the maximum latency
response time of installed equipment. Some equipment cannot handle the extended
response time that 2 kilometers of fiber introduces.
Minneapolis, MN 55344 USA
Coax Copper/Fiber Media Converter (series
®
C/AR-CF-02
Provides a BNC connector to coaxial
cable and a set of RX (receive) and TX
(transmit) ST connectors to multimode
fiber-optic cable.
C/AR-CF-02(SC)
Provides a BNC connector to coaxial
cable and an RX (receive) and TX
(transmit) SC connector to multimode
fiber-optic cable.
C/AR-CF-02(SM)
Provides a BNC connector to coaxial
cable and an RX (receive) ST and TX
(transmit) SC connector to singlemode
fiber-optic cable.
Power
TX RX
10BASE-T
Coax
Fiber
