Transition Networks C4TEF1011-110 User Manual

Slide-in-module device

Advertisement

Quick Links

T1/E1 network ports over fiber. The Ethernet, RS-232, and T1/E1 interfaces are
independent of each other and the signals from these ports can be sent over the
fiber interface simultaneously.
The C4TEF10xx-11x is designed to be installed in pairs. For example, install one
C4TEF1011-110 as the local Device and another C4TEF1011-110 as the remote
Device.
All C4TEF10xx-11x models have the following copper connectors:
Connector Type
Number
Ethernet
one (1)
RS-232
one (1)
T1/E1
four (4)
The various fiber connectors are available on separate models. Both duplex and
single mode fiber opticDevices are available:
Part Number
Duplex Fiber-Optic - 100Base-FX
C4TEF1011-110
ST, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1013-110
SC, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1014-110
SC, 1310 nm single mode, 20 km (12.4 miles)*
C4TEF1015-110
SC, 1310 nm single mode, 40 km (24.8 miles)*
C4TEF1016-110
SC, 1310 nm single mode, 60 km (37.2 miles)*
C4TEF1017-110
SC, 1550 nm single mode, 80 km (49.7 miles)*
C4TEF1018-110
MT-RJ, 1300 nm multimode, 2 km (1.2 miles)*
C4TEF1029-11x
(Single mode, single fiber models are listed on page 2.)
*Typical maximum cable distance.
Actual distance is dependent upon the
physical characteristics of the network.

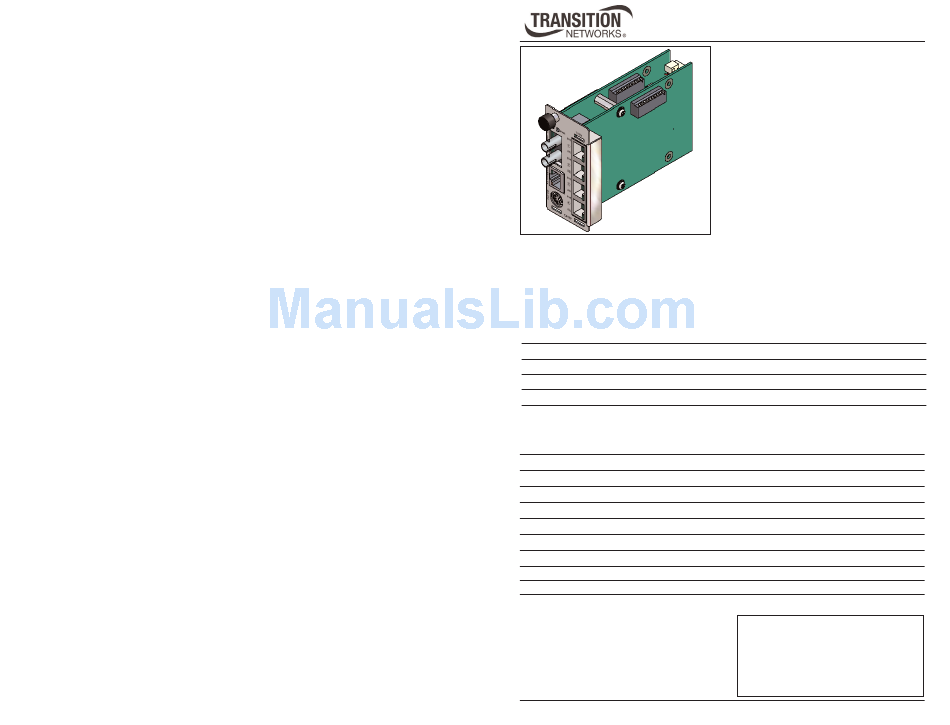

User's Guide
C4TEF10xx-11x
Slide-in-Module Device
Twisted-Pair Copper to Fiber
10/100Base-TX to 100Base-FX
RS-232 to Fiber
(4) T1/E1 to Fiber
The C4TEF10xx-11x Device is designed
to install into a Transition Networks
PointSystem™ chassis and can extend
signals from a 10Base-T
Ethernet/100Base-TX Fast Ethernet port,
an RS-232 data port, and up to four (4)
Description
RJ-45, 100 Mb/s, 100 m (328 ft.)*
6-pin, DIN serial, 3.2 m (10 ft.)*
RJ-48
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . .10
Cable Specifications . . . . . . . . . .13
Technical Specifications . . . . . . .15
Troubleshooting . . . . . . . . . . . . .16
Compliance Information . . . . . . .20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C4TEF1011-110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Transition Networks C4TEF1011-110

  • Page 1 The C4TEF10xx-11x is designed to be installed in pairs. For example, install one C4TEF1011-110 as the local Device and another C4TEF1011-110 as the remote Device. All C4TEF10xx-11x models have the following copper connectors:...
  • Page 2: Installation

    C4TEF10xx-11x Part Number Fiber-Optic - Single Fiber, Single Mode, 100Base-FX C4TEF1029-110 SC, 1310 mn (TX)/1550 nm (RX), 20 km (12.4 miles)* C4TEF1029-111 SC, 1550 mn (TX)/1310 nm (RX), 20 km (12.4 miles)* Note: C4TEF1029-110 and C4TEF1029-111 are intended to be installed in the same link where one is the localDevice and the other is the remoteDevice.
  • Page 3 C4TEF10xx-11x Installation -- Continued Switch set #1 - T1/E1 options 5, 6, 7, 8 - Loop-Back settings The loop-back setting is used for installation and network debugging procedures. Each of the T1/E1 ports can be individually set for loop-back mode: •...
  • Page 4 C4TEF10xx-11x Installation -- Continued Switch Set #2 - Serial and Ethernet Options 6 - Twisted-Pair Auto-Negotiation up (Enabled) - The Device “advertises” ALL rate and mode capabilities to the network: • 100 Mb/s full- or half-duplex • 10 Mb/s full- or half-duplex The Device brings up the Ethernet link to the highest speed and mode possible for all the attached network devices.
  • Page 5: Install The Slide-In-Module

    C4TEF10xx-11x Installation -- Continued Hardware/Software Jumper • The hardware/software jumper is located near the back end on the upper circuit board. • Use small needle-nose pliers to set the jumper. Hardware The Device mode is determined by the switch settings. Software The Device mode is determined by the most- recently saved, on-board microprocessor...
  • Page 6: Operation

    C4TEF10xx-11x Installation -- Continued Install the RS-232 Data Cable (included) Use the enclosed RS-232 data cable with a male, DIN 6-pin connector on one end and a DB-9 connector installed on the other end. Connect the DIN 6-pin connector to the RS-232 port on the C4TEF10xx- 11x Device.
  • Page 7: Cable Specifications

    <10-9 Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm C4TEF1011-110 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB...
  • Page 8: Ethernet Cable

    C4TEF10xx-11x Cable Specifications -- Continued The fiber optic transmitters on this device meets Class I Laser safety requirements per IEC- 825/CDRH standards and complies with 21 CFR1040.10 and 21CFR1040.11. Ethernet Cable Category 3: (minimum requirement for 10 Mb/s operation) Gauge 24 to 22 AWG Attenuation 11.5 dB/100m @ 5-10 MHz...
  • Page 9: Troubleshooting

    C4TEF10xx-11x Troubleshooting If the Device fails, isolate and correct the failure by determining the answers to the following questions and then taking the indicated action: Is the “PWR” LED illuminated? • Is the slide-in-module installed properly in the chassis? • Is the power cord properly installed in the chassis? •...
  • Page 10: Declaration Of Conformity

    Name of Mfg: Transition Networks 10900 Red Circle Drive, Minnetonka MN 55343 U.S.A. Model: C4TEF10xx-11x Series Devices Part Number(s): C4TEF1011-110, C4TEF1013-110, C4TEF1014-110, C4TEF1015-110, C4TEF1016-110, C4TEF1017-110, C4TEF1018-110, C4TEF1029-110, C4TEF1029-111, C4TEF1029-112, C4TEF1029-113, C4TEF1035-110 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the C4TEF10xx-11x to which this declaration refers is in conformity with the following standards.
  • Page 11: Compliance Information

    Compliance Information CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
