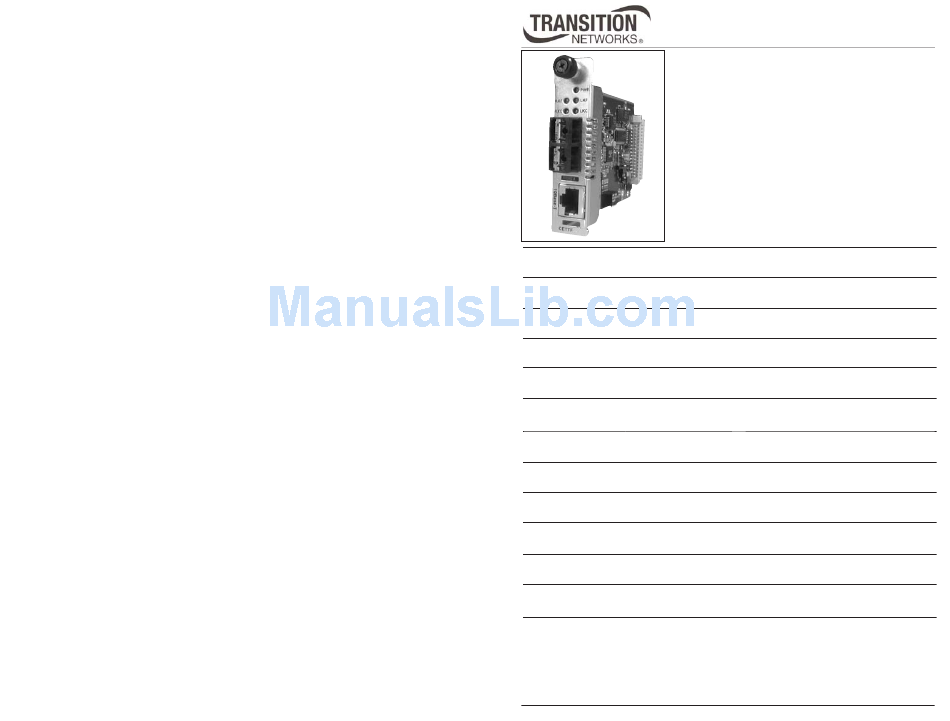

Transition Networks CETTF10XX-105 User Manual

User's Guide
CETTF10xx-105
Slide-in-Module Media Converter
• Ethernet
• Copper to Fiber
• 10Base-T to 10Base-FL

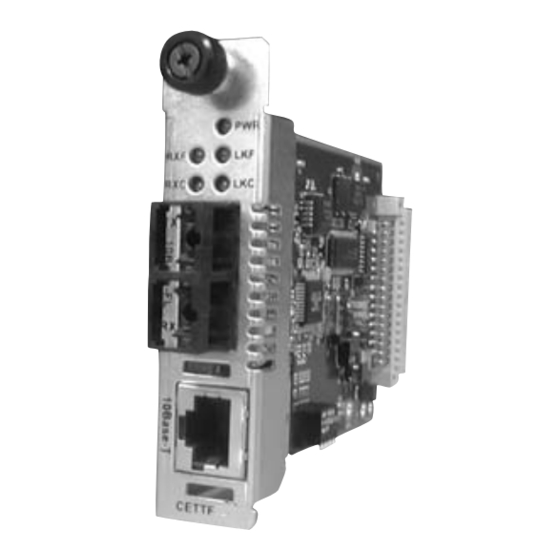

Transition Networks CETTF10xx-105 series Ethernet
10Base-T to 10Base-FL media converters (designed
to be installed in a PointSystem™ chassis) connect
10Base-T twisted-pair copper cable to multimode or
single mode 10Base-FL fiber-optic cable.
Part Number Port One - Copper
10Base-T
CETTF1011-105 RJ-45
100 m (328 ft)*
CETTF1012-105 RJ-45
100 m (328 ft)*
CETTF1013-105 RJ-45
100 m (328 ft)*
CETTF1014-105 RJ-45
100 m (328 ft)*
CETTF1014-106 RJ-45
100 m (328 ft)*
CETTF1015-105 RJ-45
100 m (328 ft)*
CETTF1018-105 RJ-45
100 m (328 ft)*
CETTF1022-105 RJ-45
100 m (328 ft)*
CETTF1027-105 RJ-45
100 m (328 ft)*
CETTF1029-105* RJ-45
100 m (328 ft)*
CETTF1029-106* RJ-45
100 m (328 ft)*
* CETTF1029-105 and CETTF1029-106 are designed to be installed in the same
network where one is the local converter and the other is the remote converter.
The distances listed are the typical maximum cable distance. Actual distance is
dependent upon the physical characteristics of the network installation.
Port Two - Fiber-Optic
10Base-FL
ST, 850 nm multimode, duplex
2 km (1.2 miles)
ST, 1310 nm single mode, duplex
20 km (12.4 miles)
SC, 850 nm multimode, duplex
2 km (1.2 miles)
SC, 1310 nm single mode, duplex
20 km (12.4 miles)
SC, 1310 nm single mode, duplex
20 km (12.4 miles)
SC, 1310 nm single mode, duplex
40 km (24.9 miles)
MT-RJ, 850 nm multimode, duplex
2 km (1.2 miles)
ST, 1310 nm single mode, duplex
40 km (24.9 miles)
ST, 1300 nm multimode, duplex
5 km (3.1 miles)
SC, 1310 nm (TX) / 1550 nm (RX)
single fiber, 20 km (12.4 miles)
SC, 1550 nm (TX) / 1310 nm (RX)
single fiber, 20 km (12.4 miles)
