User's Guide
CFETF1029-2xx
Slide-in-Module Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX

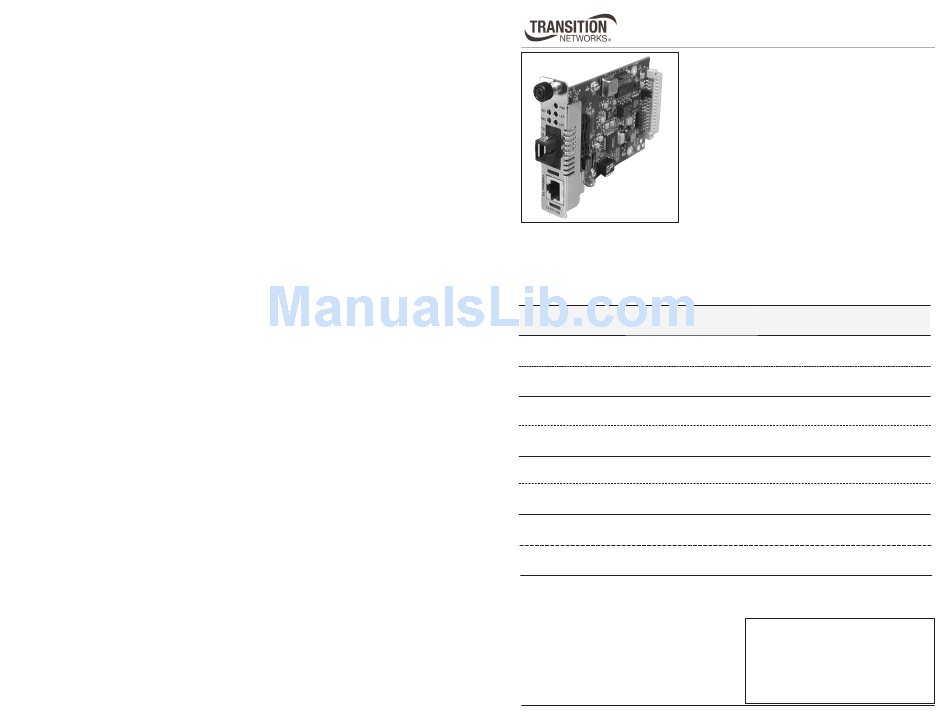

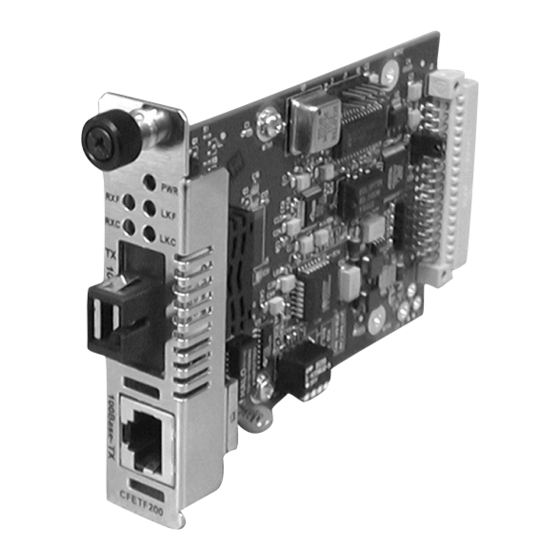

Transition Networks CFETF1029-2xx series Fast
Ethernet 100Base-TX to 100Base-FX media
converters connect 100Base-TX twisted-pair
copper cable to single fiber 100Base-FX fiber-
optic cable.
Note:
C
FETF1029-205 and CFETF1029-206 are network installed as a local and romote pair.
CFETF1029-207 and CFETF1029-208 are network installed as a local and romote pair.
CFETF1029-209 and CFETF1029-210 are network installed as a local and romote pair.
CFETF1029-211 and CFETF1029-212 are network installed as a local and romote pair.
Part Number
Port One - Copper
100Base-TX
CFETF1029-205
RJ-45
100 m (328 ft)*
CFETF1029-206
RJ-45
100 m (328 ft)*
CFETF1029-207
RJ-45
100 m (328 ft)*
CFETF1029-208
RJ-45
100 m (328 ft)*
CFETF1029-209
RJ-45
100 m (328 ft)*
CFETF1029-210
RJ-45
100 m (328 ft)*
CFETF1029-211
RJ-45
100 m (328 ft)*
CFETF1029-212
RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the
physical characteristics of the network. (TX) = transmit, (RX) = receive
The CFETF10xx-205 model is the duplex
fiber-optic version of the media
converter. For more information, see the
CFETF10xx-205 user's guide on-line at:
www.transition.com.
Port Two - Simplex Fiber-Optic
100Base-FX
SC, 1310 nm (TX), 1550 (RX)**
20 km (12.4 miles)*
SC, 1550 nm (TX), 1310 (RX)**
20 km (12.4 miles)*
SC, 1310 nm (TX), 1550 (RX)**
40 km (24.9 miles)*
SC, 1550 nm (TX), 1310 (RX)**
40 km (24.9 miles)*
SC, 1310 nm (TX), 1550 (RX)**
60 km (37.3 miles)*
SC, 1550 nm (TX), 1310 (RX)**
60 km (37.3 miles)*
SC, 1310 nm (TX), 1550 (RX)**
80 km (49.7 miles)*
SC, 1550 nm (TX), 1310 (RX)**
80 km (49.7 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .5
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Troubleshooting . . . . . . . . . . . . .10
Compliance Information . . . . . . .12
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CFETF1029-205
Summary of Contents for Transition Networks CFETF1029-205
- Page 1 CFETF1029-211 and CFETF1029-212 are network installed as a local and romote pair. Part Number Port One - Copper Port Two - Simplex Fiber-Optic 100Base-TX 100Base-FX CFETF1029-205 RJ-45 SC, 1310 nm (TX), 1550 (RX)** 100 m (328 ft)* 20 km (12.4 miles)* CFETF1029-206...
-
Page 2: Installation
CFETF1029-2xx Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position switch and the jumpers. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. Set the 4-Position Switch •... -
Page 3: Operation
CFETF1029-2xx Installation -- Continued Connect the fiber cable Locate or build 100Base-FX compliant fiber cable with male, single- stranded simplex connectors installed at both ends. Connect the simplex connector at one end of the cable to the single- strand fiber port on the first CFETF1029-2xx media converter. Connect the simplex connector at the other end of the cable to the single- strand fiber port on the second CFETF1029-2xx media converter. -
Page 4: Cable Specifications
CFETF1029-2xx Operation -- Continued Full-duplex network In a full-duplex network, maximum cable lengths are determined by the type of cables that are used. See page 1 (front cover) for the cable specifications for the different CFETF1029-2xx models. The 512-Bit Rule does not apply in a full-duplex network. Pause control frame The pause control feature can improve network performance by allowing one end of the link to signal the other to discontinue frame transmission for a set... -
Page 5: Technical Specifications
The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 Single mode fiber (recommended): 9 µm CFETF1029-205 Fiber Optic Transmitter Power: min: -13.0 dBm Fiber Optic Receiver Sensitivity: min: -32.0 dBm Link Budget: 19.0 dB... -
Page 6: Troubleshooting
6475 City West Parkway, Minneapolis MN 55344 U.S.A. Model: CFETF1029-2xx Series Media Converters Part Number(s): CFETF1029-205, CFETF1029-206, CFETF1029-207, CFETF1029-208, CFETF1029-209, CFETF1029-210, CFETF1029-211, CFETF1029-212 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CFETF1029-2xx to which this declaration refers is in conformity with the following standards. -
Page 7: Compliance Information
Compliance Information CISPR22/EN55022 Class A & B + EN55024 CE Mark FCC regulations This equipment has been tested and found to comply with the limits for a Class A & B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
