Transition Networks C/A-CF-02(SM) User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
ATM UNI 3.1 #AF-PHY-0015
Environment
Temperature:
Humidity
Altitude
Warranty
Five years
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Copyright Restrictions
© 1999 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
0-40°C (32° to 104° F )
10-90%, non condensing
0-10,000 feet
33099.B
25/155 Mb/s ATM
Copper-to-Fiber Media Converter
C/A-CF-02, C/A-CF-02(SM)
USER'S GUIDE

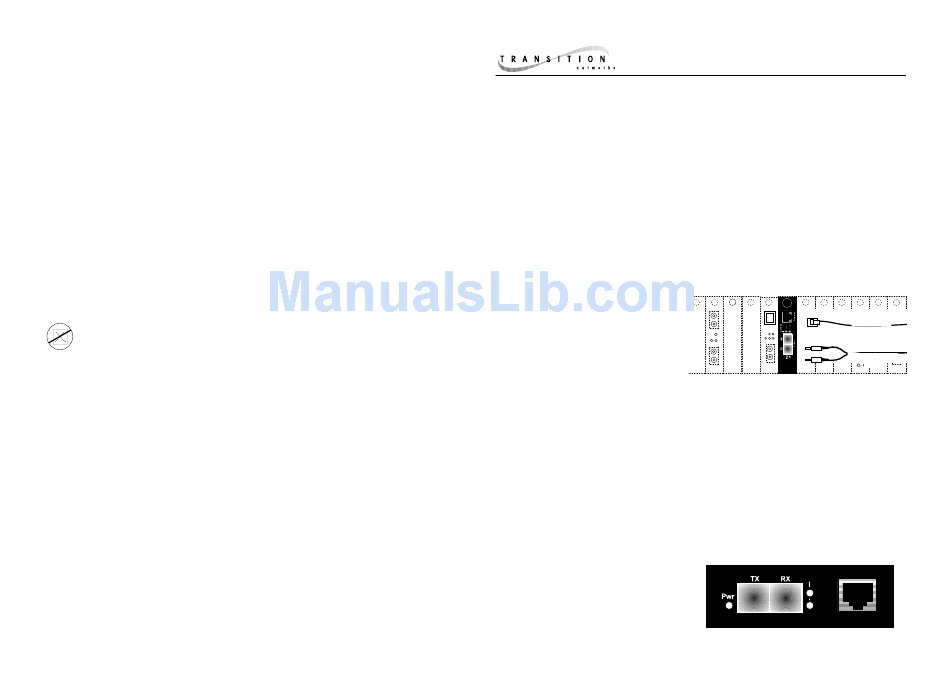

The TRANSITION Networks ATM (Asynchronous Transfer Mode) C/A-CF-02
series Slide-In-Module media converters, designed to be installed in the
TRANSITION Networks Media Conversion Center, E-MCC-1600, connect
pair copper cable to multimode OR to singlemode fiber optic cable.
NOTE: Effective cable distances are
determined by ambient RF noise and
by signal loss in the cable. The fiber
connection, with low signal loss and
high resistance to radio frequency
noise, allows extended distances
between ATM devices. Twisted-pair
runs are best kept as short as possible
to preserve signal integrity.
C/A-CF-02
The ATM media converters provide
network connection using an RJ-45
twisted-pair ATM connector and a
set of RX (receive) and TX (transmit)
SC connector to multimode fiber-
optic cable.
Status LEDs
Pwr (Power)
Illuminated green
LED indicates
connection to
external AC
power.
Activity Steady green LED indicates the fiber port is active.
(Fiber)
Activity Steady green LED indicates the twisted-pair port is active.
(Copper)
Minneapolis, MN 55344 USA
twisted-
UTP or STP
Copper
Multimode
or Singlemode
Fiber
C/A-CF-02
C/A-CF-02
C/A-CF-02(SM)
The ATM media converters provide
network connection using an RJ-45
twisted-pair ATM connector and a
set of RX (receive) and TX (transmit)
SC connector to singlemode fiber-
optic cable.
Activity
Fiber
Copper
Fiber Copper
Link
