Transition Networks CRS4Fxxxx-10x User Manual

Slide-in-module media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

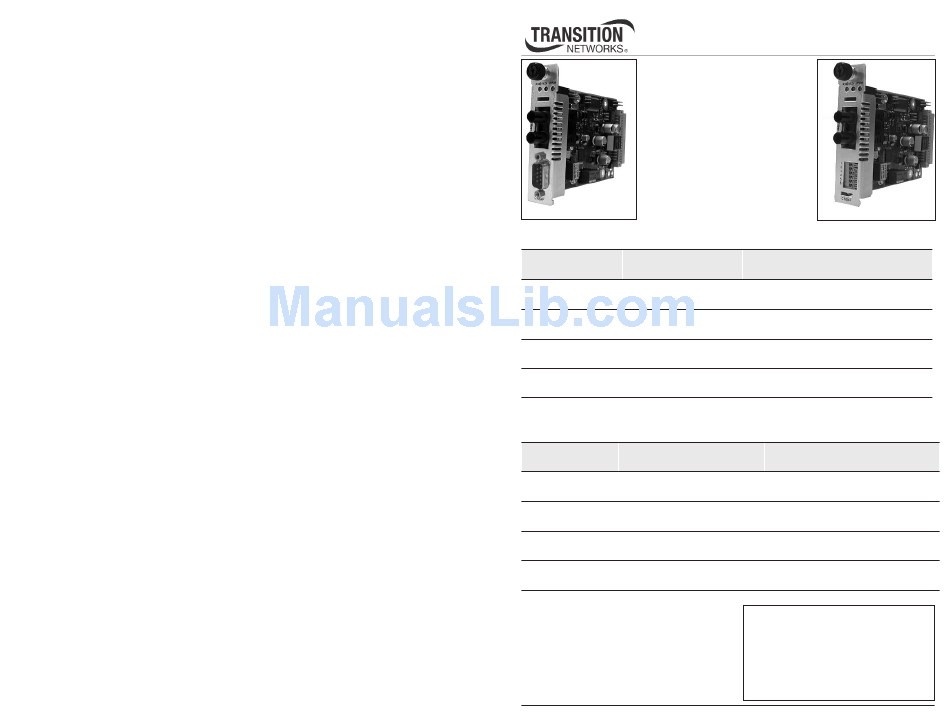

USER'S GUIDE
CRS4Fxxxx-10x
Slide-in-Module Media
Converter
RS485/422 Copper to Fiber
Transition Networks CRS4Fxxxx-
10x series media converters are
designed to be installed in the
PointSystem™ chassis and connect
RS485/422 copper cable to fiber-
CRS4F31xx-10x
optic cable at asynchronous data
rates up to 1.25 Mb/s.
Part Number
Port One - Copper
DB-9 port
CRS4F3111-100
RS485/422
1200 m (4000 ft)*
RS485/422
CRS4F3113-100
1200 m (4000 ft)*
CRS4F3114-100
RS485/422
1200 m (4000 ft)*
CRS4F3115-100
RS485/422
1200 m (4000 ft)*
The CRS4F31xx-10x media converters use a male DB-9 port for the copper link:
The CRS4F32xx-10x media converters use a 6-position terminal block for the copper
Part Number
Port One - Copper
6-position terminal block
CRS4F3211-100 RS485/422
1200 m (4000 ft)*
CRS4F3213-100 RS485/422
1200 m (4000 ft)*
CRS4F3214-100 RS485/422
1200 m (4000 ft)*
CRS4F3215-100 RS485/422
1200 m (4000 ft)*
link:
* Maximum cable distance is 1200m (4000 ft)
@ <90 kb/s decreasing logarithmically to
92m (300 ft) @ 500 kb/s.
**Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
CRS4F32xx-10x
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
Port Two - Fiber-Optic
ST, 1300 nm multimode
2 km (1.2 miles)**
SC, 1300 nm multimode
2 km (1.2 miles)**
SC, 1310 nm single mode
20 km (12.4 miles)**
SC, 1310 nm single mode
40 km (24.8 miles)**
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . . . . . .9
Technical Specifications . . . . . . . . . .12
Troubleshooting . . . . . . . . . . . . . . .13
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRS4Fxxxx-10x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks CRS4Fxxxx-10x

Summary of Contents for Transition Networks CRS4Fxxxx-10x

  • Page 1 USER’S GUIDE CRS4Fxxxx-10x Slide-in-Module Media Converter RS485/422 Copper to Fiber Transition Networks CRS4Fxxxx- 10x series media converters are designed to be installed in the PointSystem™ chassis and connect RS485/422 copper cable to fiber- CRS4F31xx-10x CRS4F32xx-10x optic cable at asynchronous data rates up to 1.25 Mb/s.

  • Page 2: Installation

    CRS4Fxxxx-10x Installation The CRS4F3129-10x media converters use a male DB-9 port for the copper link: CAUTION: Wear a grounding device and observe electrostatic discharge precautions Part Number Part One - Copper Port Two - Fiber Optic when setting the switches. Failure to observe this caution could result in damage to, DB-9 Port and subsequent failure of, the media converter.

  • Page 3: Install The Slide-In-Module

    Install the Fiber Cable Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the CRS4Fxxxx-10x media converter as described: • Connect the male TX cable connector the female TX port.

  • Page 4: Power The Media Converter

    CRS4Fxxxx-10x Install the Fiber Cable Installation -- Continued Locate or build fiber cable with male, two-stranded TX to RX connectors Install the Copper Cable (DB-9 port) installed at both ends. Install the copper cable as instructed if the media converter has a Connect the fiber cables to the CRS4Fxxxx-100 media converter as described: DB-9 copper port (CRS4F31xx-10x models).

  • Page 5: Operation

    Receive data activity on the copper link • Local switch settings (Network commands cannot be entered via SNMP.) See the on-line documentation that comes with Transition Networks FocalPoint™ software for applicable commands and usage on-line at: www.transition.com Tech Support: 1-800-260-1312 International: 00-1-952-941-7600 (24 hours)

  • Page 6: Fiber Cable

    CRS4Fxxxx-10x Cable Specifications Cable Specifications -- Continued -- Continued Fiber Cable Fiber Cable Bit Error Rate: <10-9 CRS4F3129-100 1310TX/1550TR nm single mode Single mode fiber (recommended): 9 µm CRS4F3129-101 1550TX/1310TR nm single mode Multimode fiber (recommended): 62.5/125 µm Fiber Optic Transmitter Power: min: -13.0 dBm...

  • Page 7: Technical Specifications

    Contact Technical Support: US/Canada: 1-800-260-1312, International: installed. 00-1-952-941-7600. The information in this user’s guide is subject to change. For the most up-to-date information on the CRS4Fxxxx-10x media converter, view the user’s guide on-line at: • Proceed to step 3. www.transition.com Is the RXF (fiber link) LED illuminated? Note: The stand-alone version of the media converter is SRS4Fxxxx-10x.

  • Page 8: Compliance Information

    Regulation: EMC Directive 89/336/EEC Konformität. Purpose: To declare that the CRS4Fxxxx-10x to which this declaration refers is in conformity with the following standards. In accordance with European Union Directive 2002/96/EC of the European EMC Directive 2004/108/EC; EN 55022:2006+A1:2007 Class A;...
  • Page 9 © 2004-2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. Printed in the U.S.A.
