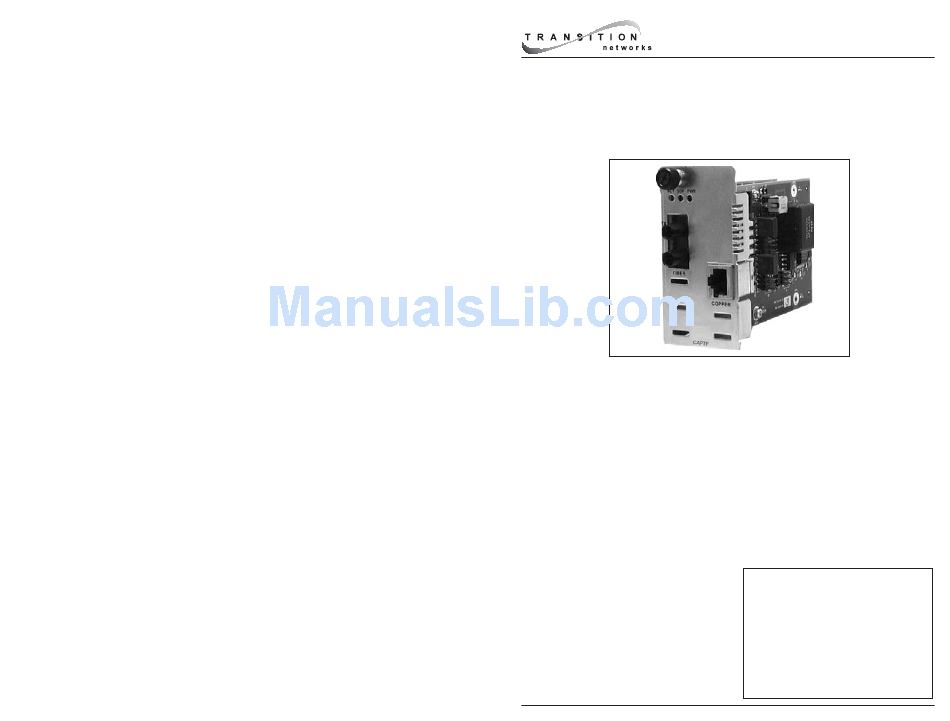

POTS to Fiber Optic
Slide-in-Module Media Converter
CAPTF33xx-1xx
User's Guide
Transition Networks CAPTF33xx-1xx POTS to fiber-optic media converter connects
central-office voice-grade signals to distant POTS (Plain Old Telephone Service)
equipment using standard telephone signaling.
distance between two voice path communication devices by up to 40 km using
either single mode or multimode fiber cable.
The CAPTF33xx-1xx provides audio transmission, caller ID, ringing at the distant
end and automatic ring-down. Two units are required to implement an end-to-end
system. An RJ-11 female connector provides the electrical interface between the
media converter and the telephone device.
The CAPTF33xx-1xx is designed to be installed in the Transition Networks
PointSystem™ chassis.
NOTE: The the stand alone version of
the media converter is SAPTF33xx-1xx.
For
more
information,
see
SAPTF33xx-1xx user's guide on-line at:
www.transition.com.
It can extend, over fiber, the
Installation . . . . . . . . . . . . . . . . . .5
the
Operation . . . . . . . . . . . . . . . . . . .9
Cable Specifications . . . . . . . . . .11
Technical Specifications . . . . . . .12
Troubleshooting . . . . . . . . . . . . .13
Consumer Information . . . . . . . .14
Compliance Information . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks CAPTF3311-100
Summary of Contents for Transition Networks CAPTF3311-100
-
Page 1: Table Of Contents
POTS to Fiber Optic Slide-in-Module Media Converter CAPTF33xx-1xx User’s Guide Transition Networks CAPTF33xx-1xx POTS to fiber-optic media converter connects central-office voice-grade signals to distant POTS (Plain Old Telephone Service) equipment using standard telephone signaling. distance between two voice path communication devices by up to 40 km using either single mode or multimode fiber cable. - Page 2 The available models are: Product Number Port One - Copper Port Two - Duplex Fiber-Optic Twisted-Pair CAPTF3311-100 RJ-11C connector ST connector, 1300 nm multimode 5 km (3.1 miles)* 2 km (1.2 miles)* CAPTF3313-100...
-
Page 3: Captf33Xx-1Xx In The Network
CAPTF33xx-1xx CAPTF33xx-1xx in the Network Standard Configuration One Unit A device (CAPTF33xx-100) and one Unit B device (CAPTF33xx-110) are required for the standard configuration. The Unit A device is connected to the Central Office (CO) while the Unit B device is connected to a telephone device. - Page 4 CAPTF33xx-1xx Installation -- Continued Install the Slide-In-Module CAUTION: Wear a grounding device and observe electrostatic discharge precautions when installing the media converter. Failure to observe this caution could result in damage to, and subsequent failure of, the media converter. To install the CAPTF33xx-1xx media converter slide-in-module: Locate an empty installation slot on the PointSystem™...
-
Page 5: Operation
CAPTF33xx-1xx Installation -- Continued Install the Cable -- Automatic Ring-Down Configuration NOTE: Both Unit B’s must be configured for Automatic Ring-Down (see page 4). Fiber Locate or build fiber cable with male, two-stranded TX to RX connectors installed at both ends. Connect the fiber cables to the first Unit B (CAPTF33xx-110) as described: •... -
Page 6: Cable Specifications
Bit error rate: Single mode fiber (recommended): 9 µm Multimode fiber (recommended): 62.5/125 µm Multimode fiber (optional): 100/140, 85/140, 50/125 µm CAPTF3311-100, CAPTF3311-110 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm Link Budget: 11.0 dB... -
Page 7: Rj-11C Connector Specifications
CAPTF33xx-1xx RJ-11C Connector Specification Unit A (Telephone Emulation) Connector: RJ-11C 600 Ω Impedance: REN: 0.4 B Loop Current: 10 to 100 mA Insertion Loss: 0.0 ± 1.0 dB at 1000 Hz (When both ports are terminated at 600 Ω.) Unit B (Central Office Emulation) Connector: RJ-11C 600 Ω... -
Page 8: Consumer Information
Name of Mfg: Transition Networks 6475 City West Parkway, Minneapolis MN 55344 USA Model: CAPTF33xx-1xx Series Media Converters Part Number(s): CAPTF3311-100, CAPTF3311-110, CAPTF3313-100, CAPTF3313-110, CAPTF3314-100, CAPTF3314-110, CAPTF3315-100, CAPTF3315-110, CAPTF3329-100, CAPTF3329-110, CAPTF3329-101, CAPTF3329-111, CAPTF3329-102, CAPTF3329-112, CAPTF3329-103, CAPTF3329-113 Regulation: EMC Directive 89/336/EEC Purpose: To declare that the CAPTF33xx-1xx to which this declaration refers is in conformity with the following standards. -
Page 9: Compliance Information
Compliance Information CISPR22/EN55022 Class A; CE Mark FCC Regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
