Cortex GS7 User Manual page 21

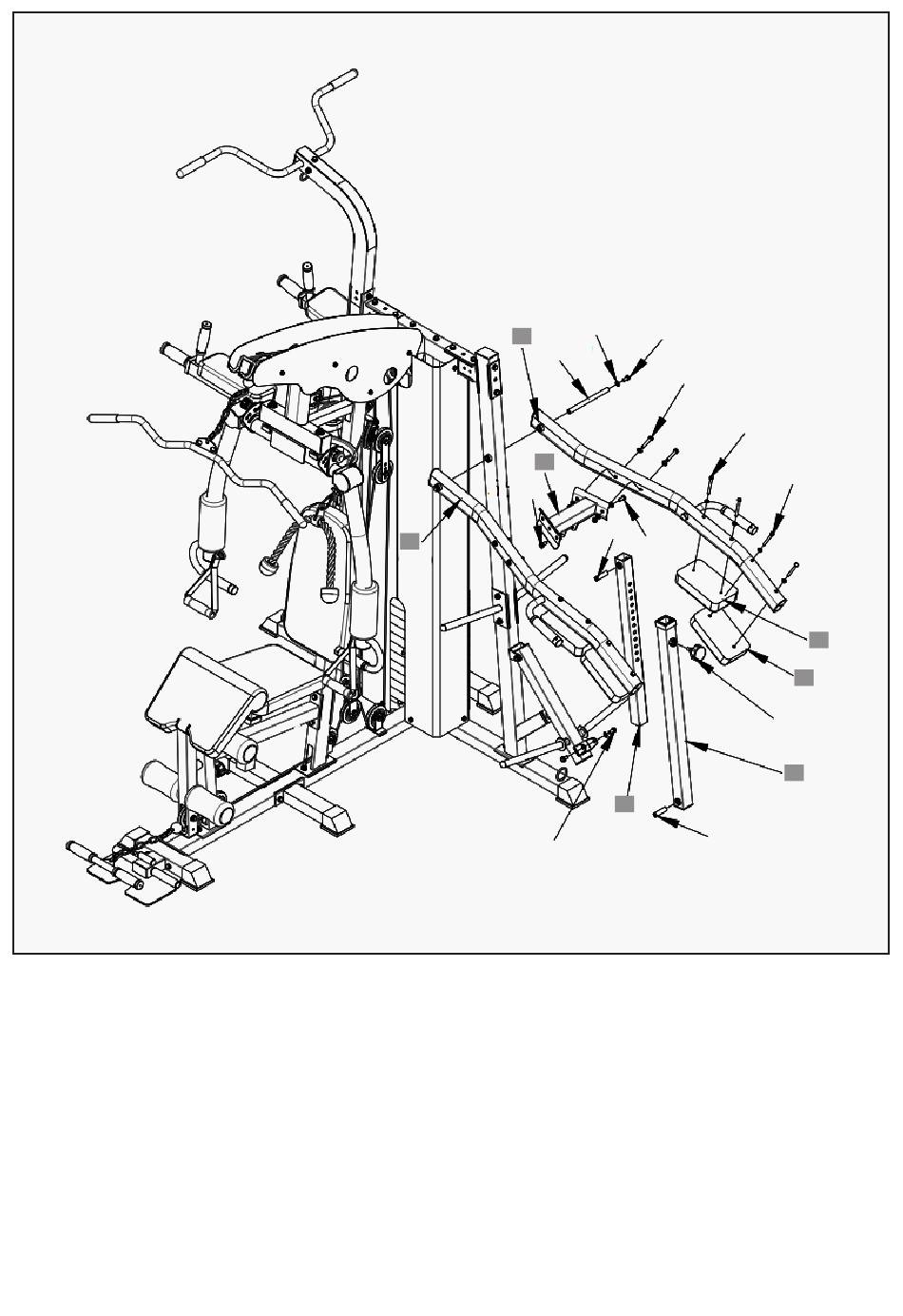

STEP 14
1. Install (#46) and (#47) to both sides of (#45), and secure them with:
- Bolts (#56-5)
- Flat pads (#56-12)
- Nuts (#56-14)
2. Place them onto (#40) and feed part (#53-10) though them then secure with:
- Bolts (#56-3)
- Flat pads (#56-12)
3. Install (#44) to (#43) and tighten with (#54-2).
47
53-10
45
56-3
46
56-3
56-12
56-3
56-5
56-11
53-8
56-3
44
53-8
ASSEMBLY INSTRUCTIONS |
56-11
51
52
54-2
43
21
