Cortex GS7 User Manual page 12

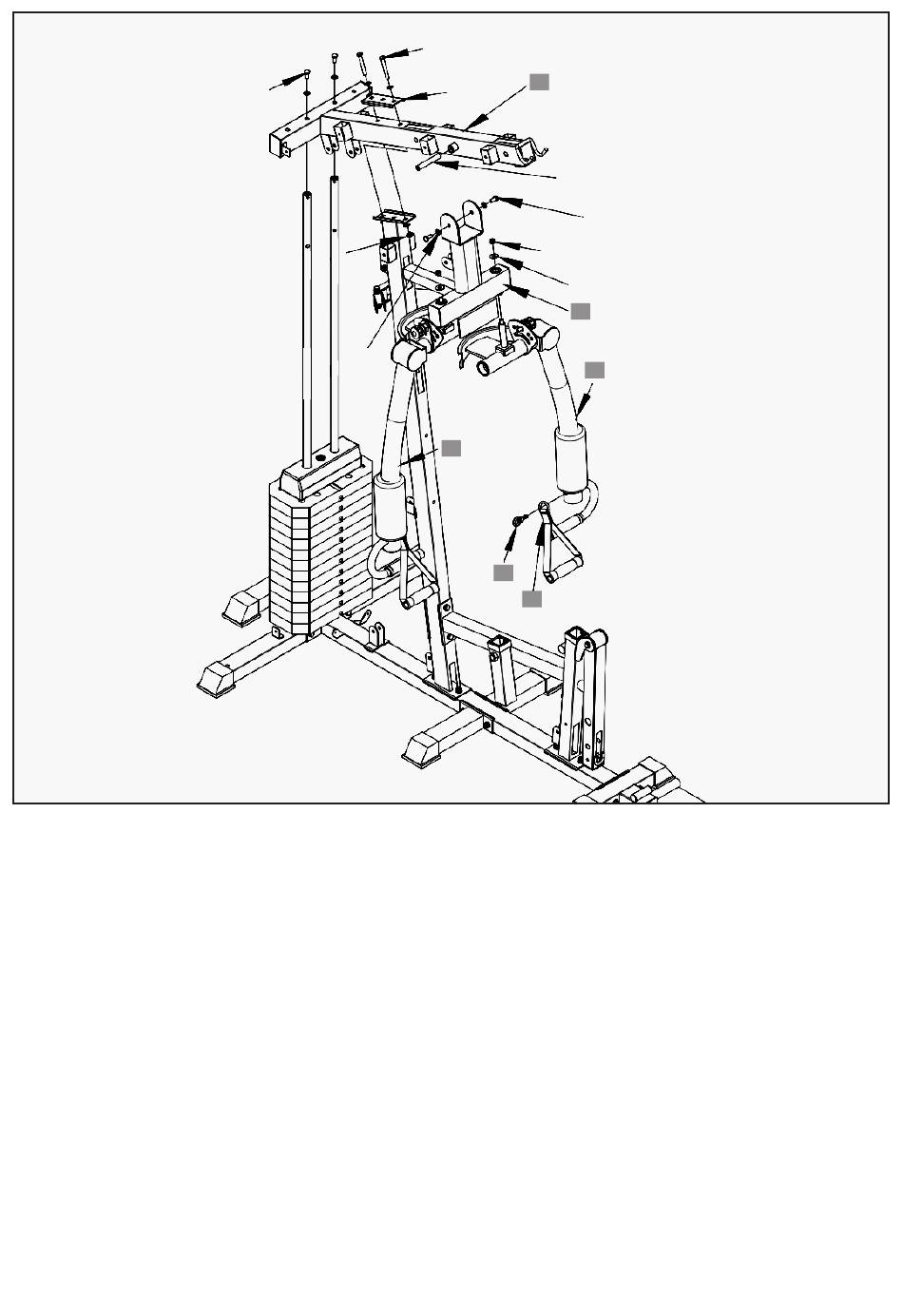

STEP 4
1. Cover (#7) into the (#13) rear square tube mounting hole as shown, secure with:
- Bolts (#56-3)
- Gasket (#56-12)
2. Connect (#53-3) to (#13) and (#13) to (#10) with:
- Bolts (#56-1)
- Gaskets (#56-12)
- Nuts (#56-14)
3. Install (#53-9) into (#13) and install (#14) on (#13) with:
- Bolts (#56-3)
- Pads (#56-12)
4. Apply (#15) into (#14) and lock with:
- Gasket (#56-13)
- Nut (#56-14)
5. Secure part (#55) to part (#15) and (#16) as shown in diagram.
12 | ASSEMBLY INSTRUCTIONS
56-3
56-14
56-12
56-1
13
53-3
53-9
56-3
56-14
56-13
14
15
16
15
55
