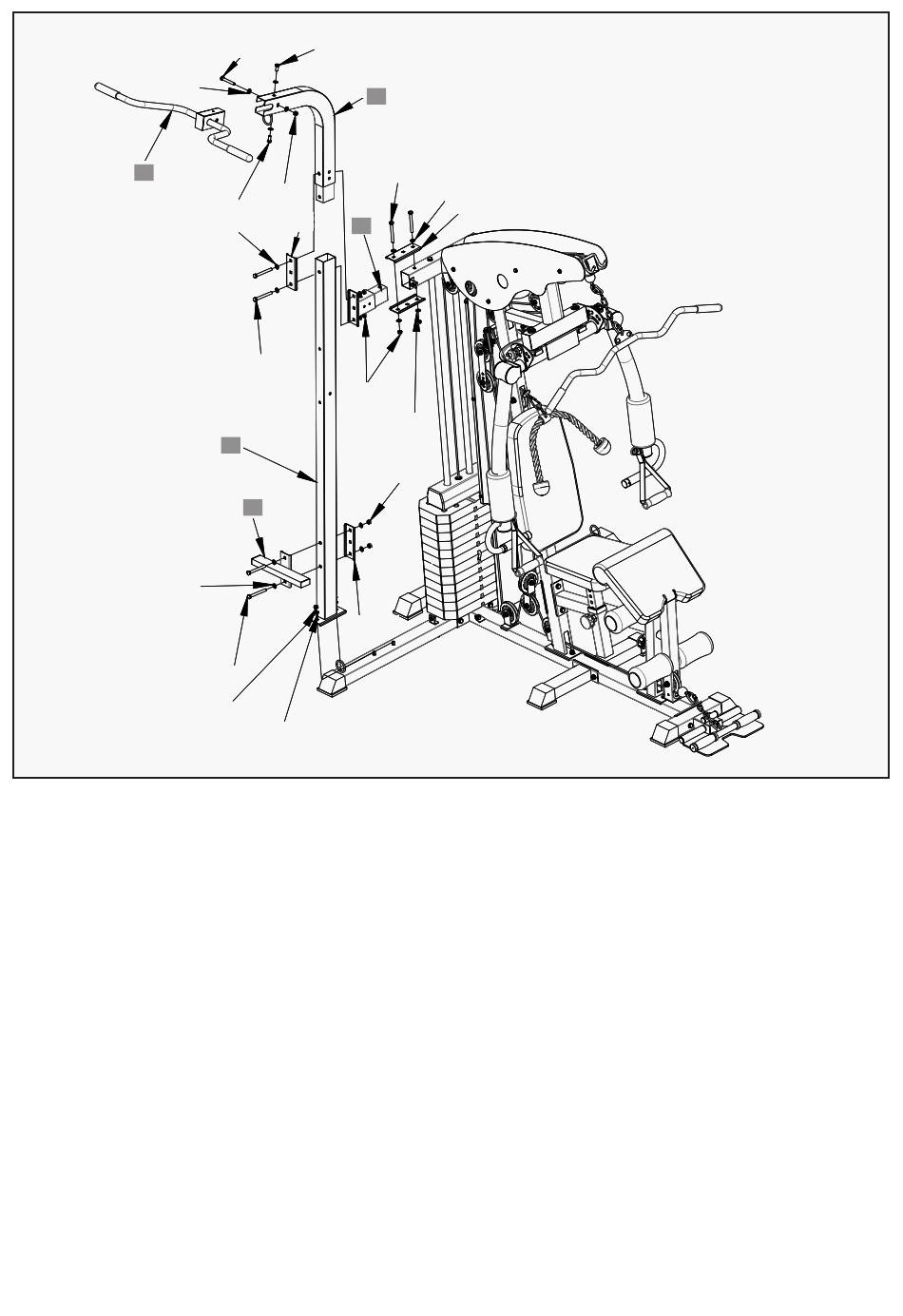

STEP 11
1. Install (#35) on (#34) and secure it with:
- Bolts (#56-2)
- Bolts (#56-3)
- Flat spacers (#56-12)
- Nuts (#56-14)
2. Install (32) on (#13) as shown, and secure it with:
- Plate (#53-3)
- Bolts (#56-1)
- Flat spacers (#56-12)
- Nuts (#56-14)
3. Install (#39) on (#33) and tighten it with:
- Bolts (#56-1)
- Flat spacers (#56-12)
- Nuts (#56-14)
- Plate (#53-3)
18
| ASSEMBLY INSTRUCTIONS
56-2
56-3
34
56-14
56-3
53-3
32
56-12
56-1
56-14
33
39
53-3
56-1
56-14
56-12
56-1
56-12
53-3
56-12
56-14
4. Install the installed (#33) on (#1) and tighten
it with:
- Flat pads (#56-12)
- Nut (#56-14)
5. Install the installed (#34) into (#33) as shown
and connect to (#32) with:
- Plate (#53-3)
- Bolts (#56-1)
- Flat pads (#56-12)
- Nuts (#56-14) and tighten.
