Cortex GS7 User Manual page 20

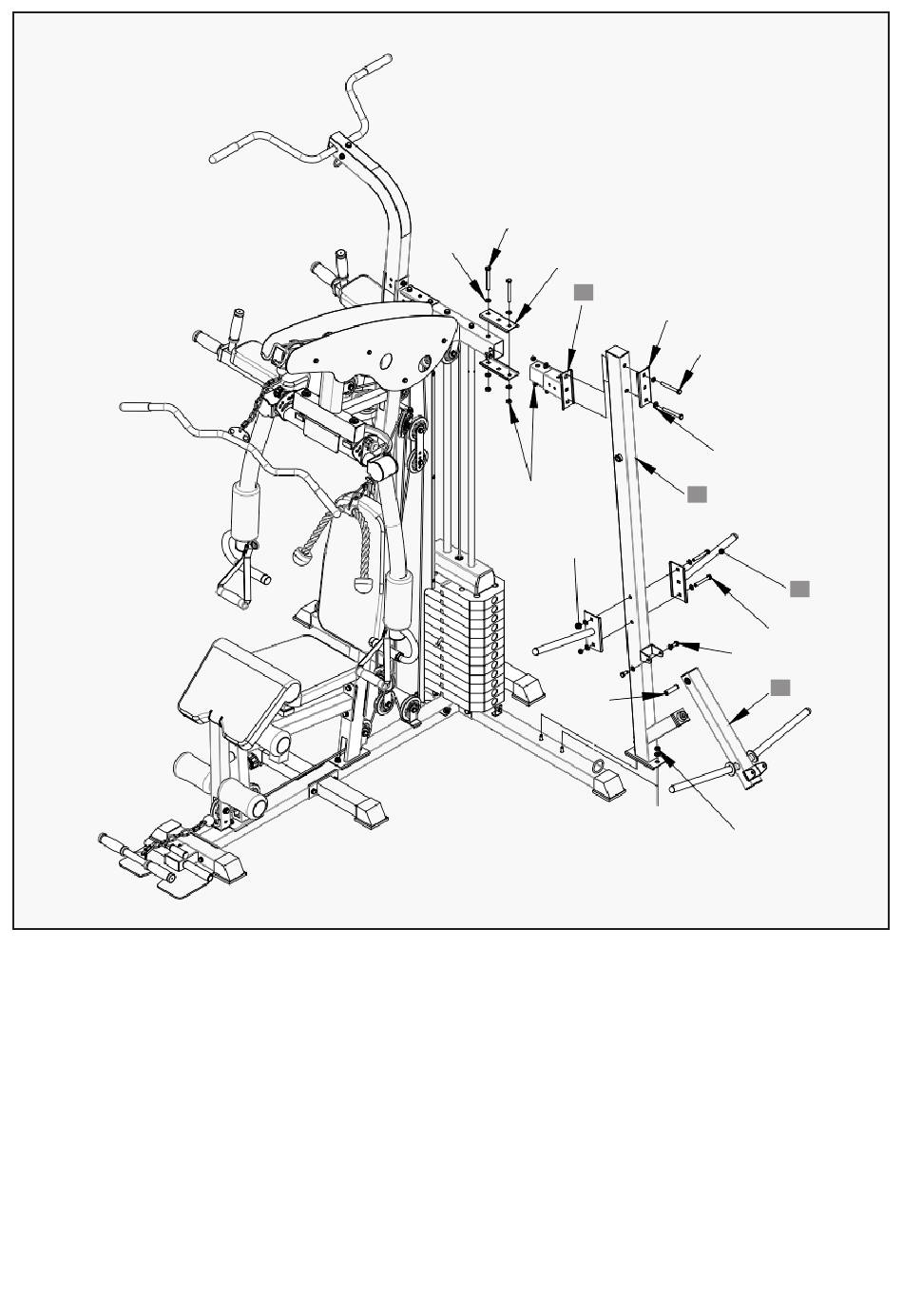

STEP 13
1. Install (#32) on (#13) as shown, and secure
it with:
- Plate (#53-3)
- Bolts (#56-1)
- Flat spacers (#56-12)
- Nuts (#56-14)
2. Install (#40) to (#1) and tighten it with:
- Flat washer (#56-12)
- Nut (#56-14)
20 | ASSEMBLY INSTRUCTIONS
56-1
56-12
53-3
32
56-14
56-14
53-8
3. Installation diagram attaches two (#41) to
(#40) and fixed with:
- Bolts (#56-2)
- Flat spacers (#56-12)
- Nuts (#56-14)
4. Finally place (#53-8) to (#42) and then (#42)
to (#40), tightening both sides with:
- Bolts (#56-3)
- Flat spacers (#56-12)
53-3
56-1
56-12
40
41
56-2
56-3
42
56-14
