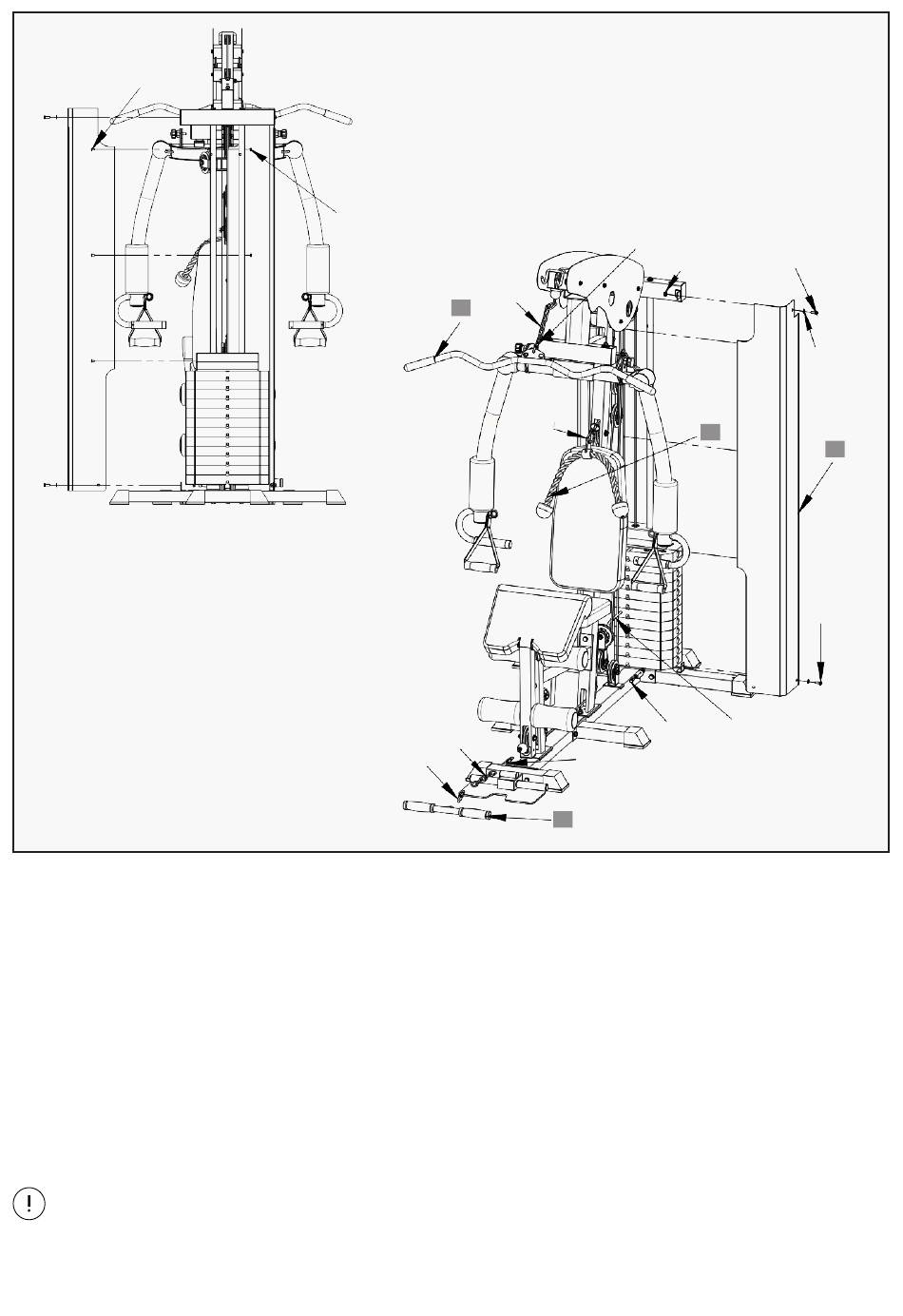

STEP 10
1. Install parts (#30) and (#31) with (#56-7) nuts, (#56-12) gaskets and (#56-15) bolts onto parts (#13),
(#1) and (#2).
Attach the accessories and weight pin:
1. Connect (#54-10) to 2x (#54-11) on each end then secure (#54-11) to (#25) and the other side to the
bottom cable wire.
2. Connect (#54-12) to the middle cable wire and the other end to (#26).
3. Connect (#54-10) to 2x (#54-11) on each end then secure (#54-11) to (#24) and the other end secure
to the top cable wire.
4. Insert (#53-5) into the counterweight block to change your desired weight loading.
NOTE: Make sure to secure (#54-11) and (#54-12) properly when swapping accessories.
