Cortex GS7 User Manual page 10

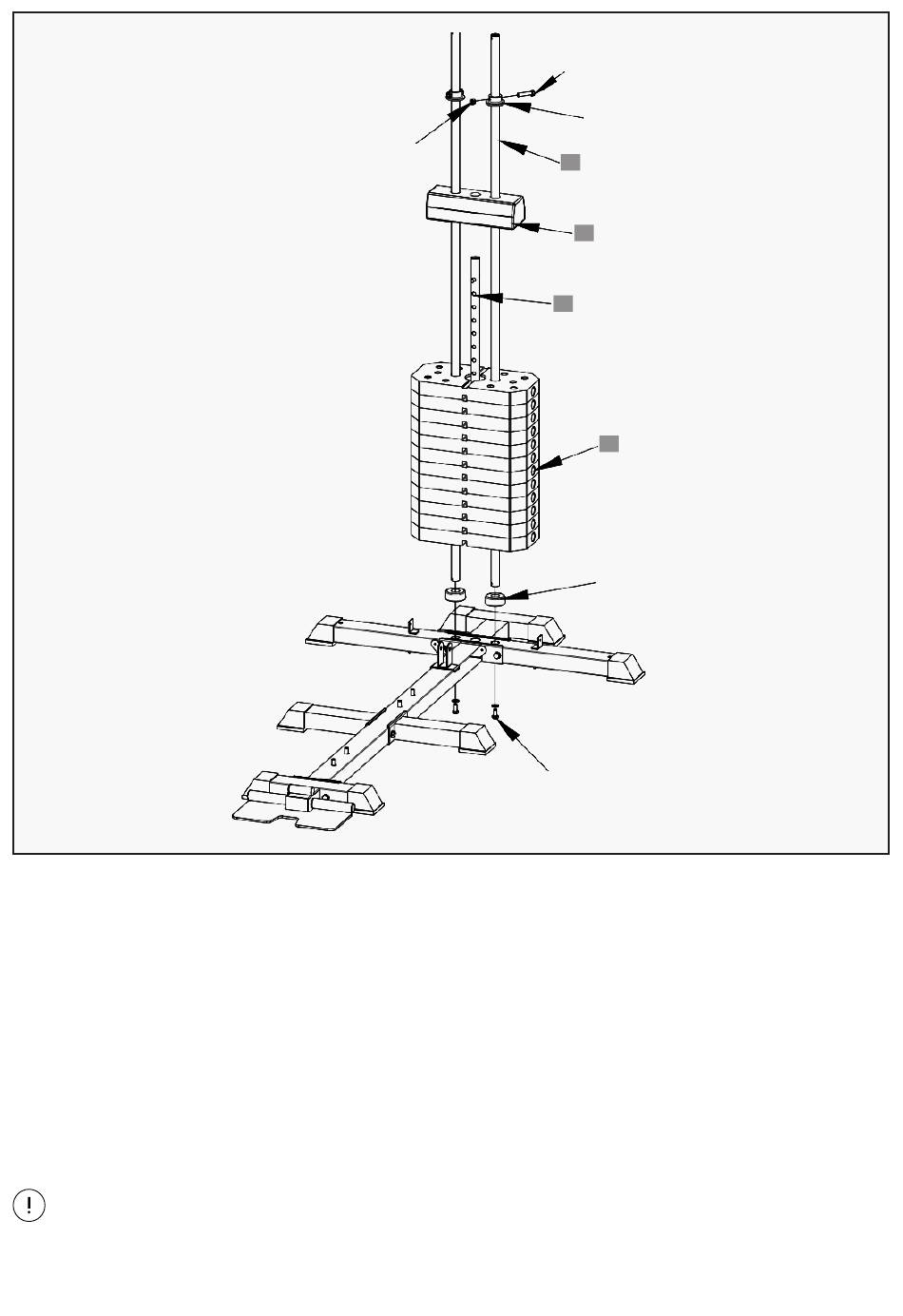

STEP 2
1. With three holes facing up, insert (#7) into the (#1) and secure with mounting hole with:
- 2 Bolts (#56-3)
- 2 spacers (#56-12)
Then insert (#54-1) into (#7).
2. Place the counterweight block (#57) into (#7) one by one (Note that the counterweight block groove
joint is uniformly facing down).
3. Insert the plus bar (#8) in the middle of the (#41) hole.
4. Install the counterweight head (#9) to (#7), then install (#54-6) to (#7) and secure it with:
- Bolts (#56-4)
- Nuts (#56-14)
NOTE: The direction of the weight block gap (the weight pin) must face down.
10 | ASSEMBLY INSTRUCTIONS
56-4
56-14
8
56-3
54-6
7
9
57
54-1
