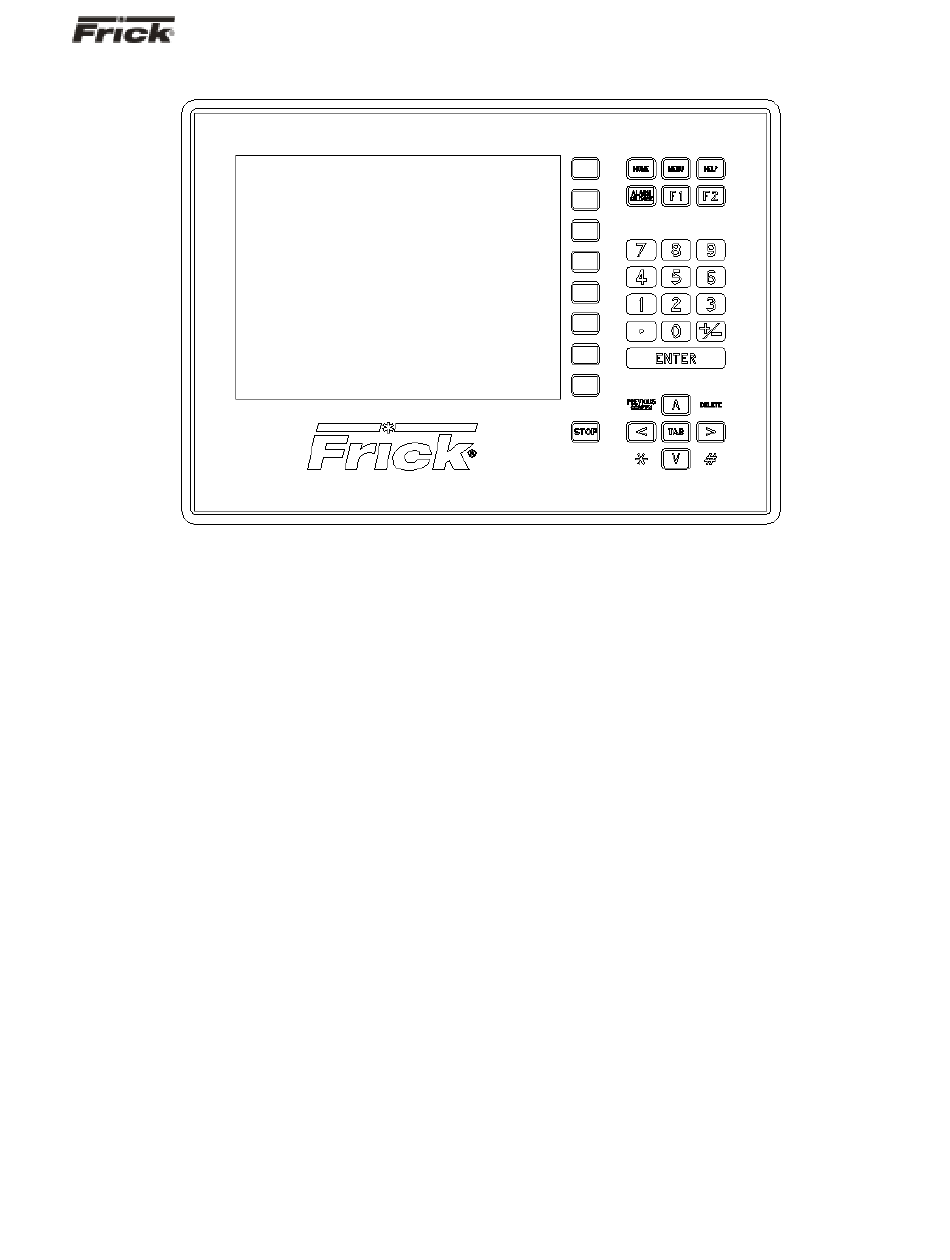

KEYPAD KEYS

Following is a list of the labeled keypad keys and the
actions that occur when they are pressed:
[HOME] – If an operator is logged on to an individual unit
and the "Operating Status" screen is not presently
showing, then this unit's "Operating Status" screen is
shown when this key is pressed. Otherwise, the "Air
Handling Unit Overview" screen is shown. All the pertinent
readings and operational status of a unit is shown on the
"Operating Status" screen. An overview of the most
important information about all the units is shown on the
"Air Handling Unit Overview" screen.
[MENU] - Shows the "Main Menu" screen. This screen
has the main selections for an individual unit, allowing
access to information, setup of options, and setpoint entry.
[HELP] - Displays the on-line "HELP". Information is
shown for the operation of the ACUair control panel.
[F1] - A function key that is only active when a screen
indicates it as a selection key. Its function is dependent on
what the screen indicates will occur.
[F2] - A function key that is only active when a screen
indicates it as a selection key. Its function is dependent on
what the screen indicates will occur.
NUMERALS [0] - [9] - The numerical keys are used to
enter a value in a data field.
DECIMAL [.] - The decimal point is used when entering a
decimal value in a data field.
[+/-] - When changing a value in a data field, this key will
toggle the value between negative and positive.
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION

KEYS AND KEY FUNCTIONS

[ENTER] - When changing data in a data entry field, this
key will input the change.
[PREVIOUS SCREEN] - Shows the screen that was
viewed previously to the current screen. Also is used to
return to the previous set of screen keys when accessing
different sets of screen key selections on the same
screen.
[DELETE] - When changing a value in a data field, this
key will delete the selected character.
Up Arrow [∧ ∧ ∧ ∧ ]- When in the mode of changing setpoints,
this arrow is used to go to the previous data entry field.
Down Arrow [∨ ∨ ∨ ∨ ]- When in the mode of changing setpoints,
this arrow is used to go to the next data entry field.
Right Arrow [> > > > ]- When in the mode of changing setpoints,
this arrow is used to go to the next data entry field. When
in the mode of changing a data entry field, this arrow is
used to go to the next character.
Left Arrow [< < < < ]- When in the mode of changing setpoints,
this arrow is used to go to the previous data entry field.
When in the mode of changing a data entry field, this
arrow is used to go to the previous character.
