The following inputs are shown in the second block (if they
were enabled during the board setup).
•
Flame Failure
•
Auxiliary 1 – (identified by user-defined name)
•
Auxiliary 2 – (identified by user-defined name)
•
Auxiliary 3 – (identified by user-defined name)
ACUair OUTPUT STATUS BOX:
The present operating status of the digital outputs is
shown. One of the following messages is displayed:
•
On – The output is energized or turned on

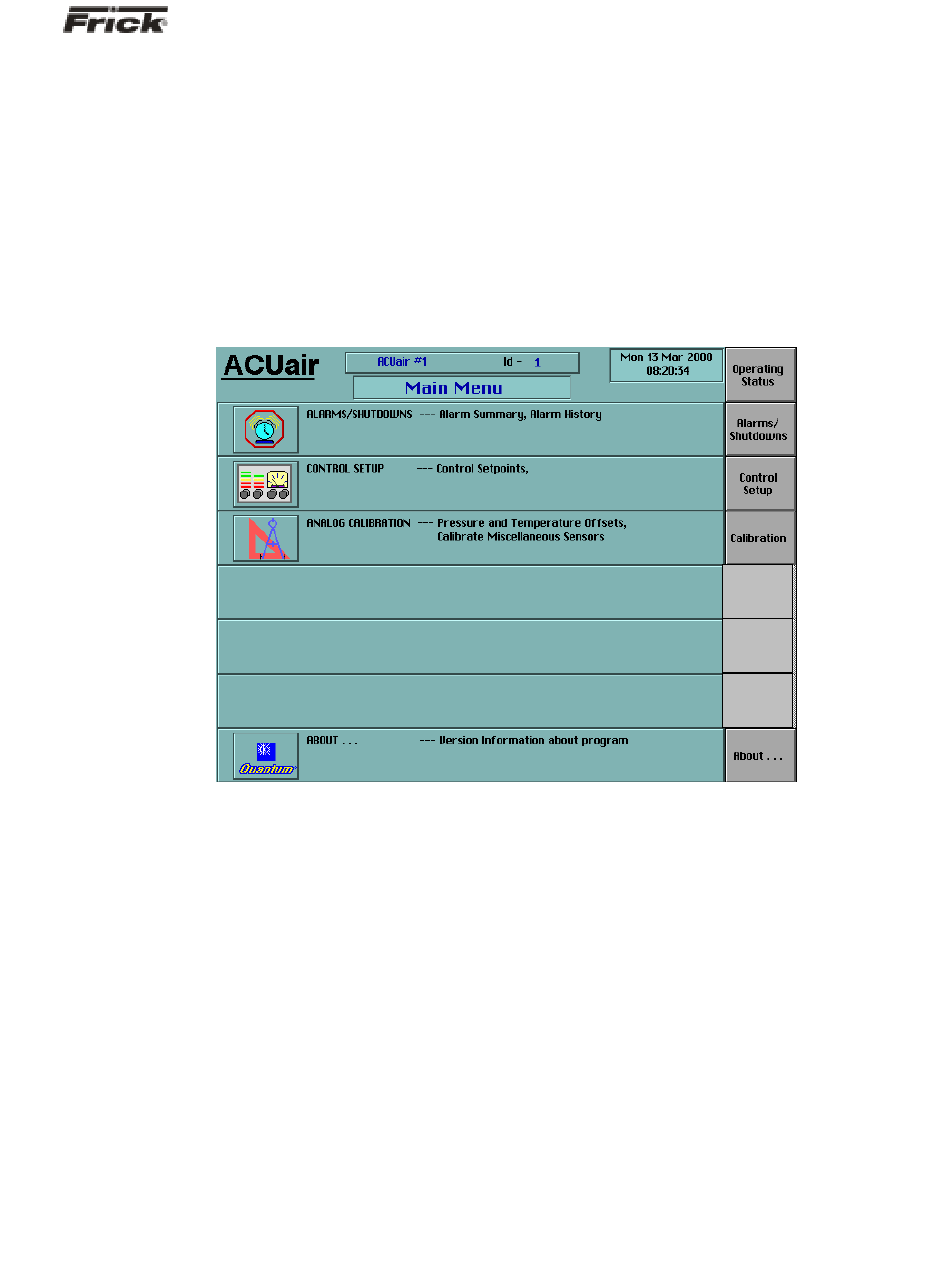

"MAIN MENU" SCREEN -
SCREEN KEY SET
The "Main Menu" screen provides a selection of screen
keys to guide the operator through all the screens. The
following are descriptions of each screen selection and a
listing of further selections:
•
[Operating Status] - Shows the "Operating Status"
screen.
•
[Alarms/Shutdowns]
"Alarms/Shutdowns" screen which shows in red text
the current Failures, and the Date, and Time of the
Failure. The following selections are available:
•
[Clear Alarms]
•
Alarms/Shutdowns History Screen
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION
UNIT SELECTED –
"MAIN MENU" SCREEN
- Shows the
•
Off - The output is de-energized or turned off.
The following outputs are shown in the first block (if they
were enabled during the board setup).
•
Supply Fan Motor
•
Exhaust Fan #1
•
Exhaust Fan #2
•
Burner Command
The following outputs are shown in the second block (if
they were enabled during the board setup).
•
Cooling Stage #1
•
Cooling Stage #2
•
[Control Setup] - Shows the "Control Setup" menu
screen. The following items are selections:
•
[Cooling Control Setup]
•
[Heating Control Setup]
•
[Exhaust Control Setup]
•
[Damper Control Setup]
•
[Safety Setpoints]
•
[Calibration] - Shows the "Analog calibration"
screen. From this screen, the following calibrations
can be selected:
•
Change Temperature Probe Types, Ranges
and Offsets
•
Calibrate Miscellaneous Sensors
S90-500 O
