The current setup is shown at the Panel Setup selection.
The following Panel Setup screens can be selected:
•
Change Current Time and Date
•
Pressure Units -- PSIA, PSIG or SI
•
Temperature Units -- degrees Fahrenheit or Celsius
•
Language – English, Spanish
•
Change Communications
•
Group Setup
•
Screen Setup

"Change Current Time and Date" SCREEN

The following screen keys are provided:
•
[Increase Minutes]
•
[Increase Hours]
•
[Increase Day]
•
[Increase Month]
•
[Increase Year]
•
[Decrease Year]
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION

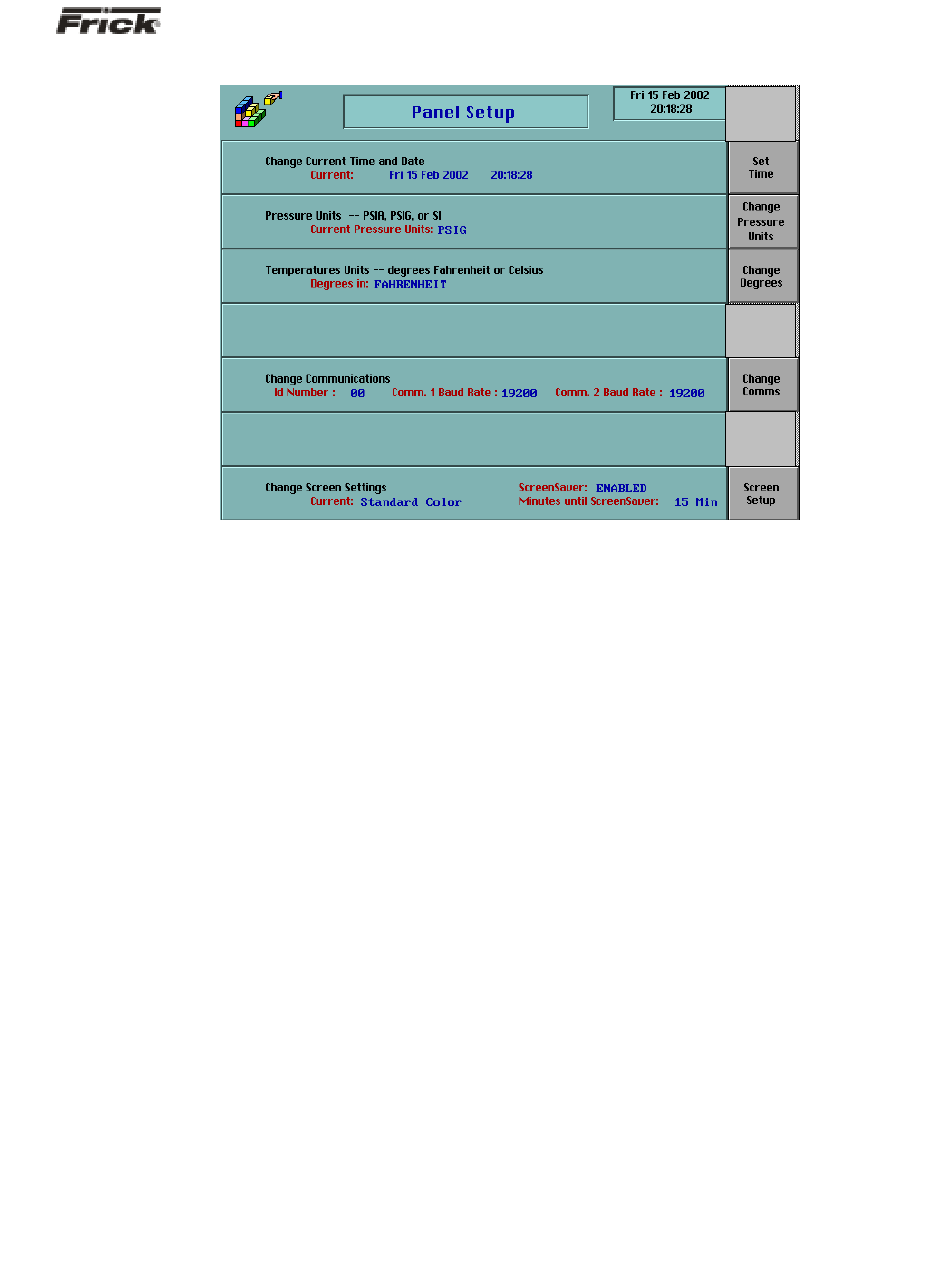

"PANEL SETUP" SCREEN

The following screen keys are provided:
[Change to PSIA]
•
•
"Temperature Units -- degrees Fahrenheit or
The following screen keys are provided:
•
•
The following screen selections are provided:
•
•
"Pressure Units -- PSIA, PSIG or SI"
SCREEN
[Change to PSIG]
[SI Units]
•
[Change to BarA]
•
[Change to Bar]
•
[Change to KPAA]
Celsius" SCREEN
[Change to Fahrenheit]
[Change to Celsius]

"Change Communications" SCREEN

[Change Setpoints] - Select this key to change the
panel ID number.
[Change to 19200 Baud] - A toggle key that changes
between the baud rates of 1200, 2400, 4800, 9600,
19200, 38400, 76800 and 115200 is provided for the
Comm2 setup.
S90-500 O
Page 23
