Main Menu Selection - "Control Setup" (1) Screen - Frick QUANTUM ACUair Operation Instructions Manual

This screen is accessible from the "Main Menu" screen
when Security is set to either "Moderate Access" or "No
Access". These setpoints are the only values that should
need to be changed in the daily operation of the unit.
After responding [OK] to changing these control setpoints,
they are written to the ACUair board's EPROM and read
back from there to be re-displayed. EPROM memory is
non-volatile and all information is retained even if the
power to the panel is lost. This process is used to confirm
that an ACUair control board properly receives control
setpoint changes.

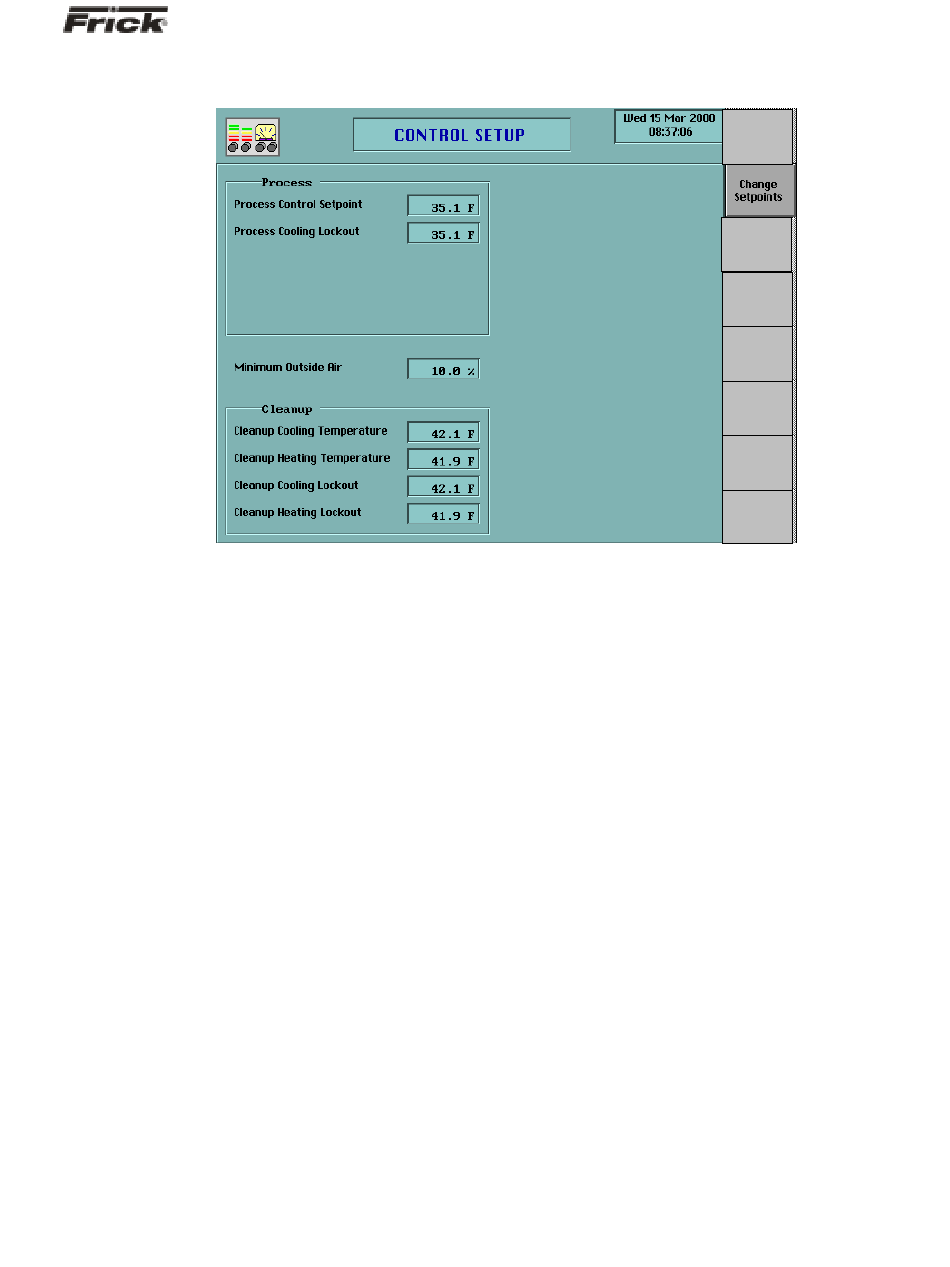

This screen has the following setpoints:
•
Process Control Setpoint - During Process Mode,
Return Air Temperature is maintained at this setpoint.
•
Process Cooling Lockout - During Process Mode, if
Outside Air Temperature drops below this setpoint
cooling is temporarily disabled.
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION
MAIN MENU SELECTION -
"CONTROL SETUP" (1) SCREEN
•
Minimum Outside Air - When the unit is running, this
setpoint defines the minimum percent setting for the
Outside Air Dampers. The range for the Outside Air
Dampers is 100% for fully open and 0% for fully
closed, so a Minimum Outside Air Setpoint of 10%
sets the minimum damper position at 1/10 of the fully
open position.
•
Cleanup Cooling Temperature - During Cleanup
Mode if cooling
Temperature is maintained at this setpoint.
•
Cleanup Heating Temperature - During Cleanup
Mode if heating
Temperature is maintained at this setpoint.
•
Cleanup Cooling Lockout - During Cleanup Mode, if
Outside Air Temperature drops below this setpoint
cooling is temporarily disabled.
•
Cleanup Heating Lockout - During Cleanup Mode, if
Outside Air Temperature rises above this setpoint,
heating is temporarily disabled.
S90-500 O
Page 13
is required, Discharge
is required, Discharge
Air
Air
