DEMAND OUTPUT BOX:
The bottom box on the left side of the screen holds the
demand control values. These values range from 0 -
100% and are the results of PID calculations. Larger
percentages indicate that input readings have moved
away from setpoint and increased air modification is
necessary.
The following demand values are shown:
•
Cooling
•
Damper
•
Exhaust
•
Heating
ANALOG READINGS BOX:
The following analog input readings are possible. They
are shown if they were enabled during the board setup.
•
Outside Air Temperature
•
Room/Return Air Temperature
•
Discharge Air Temperature
•
Coil Air Temperature
•
Outdoor Damper
•
Exhaust Damper 1
•
Exhaust Damper 2

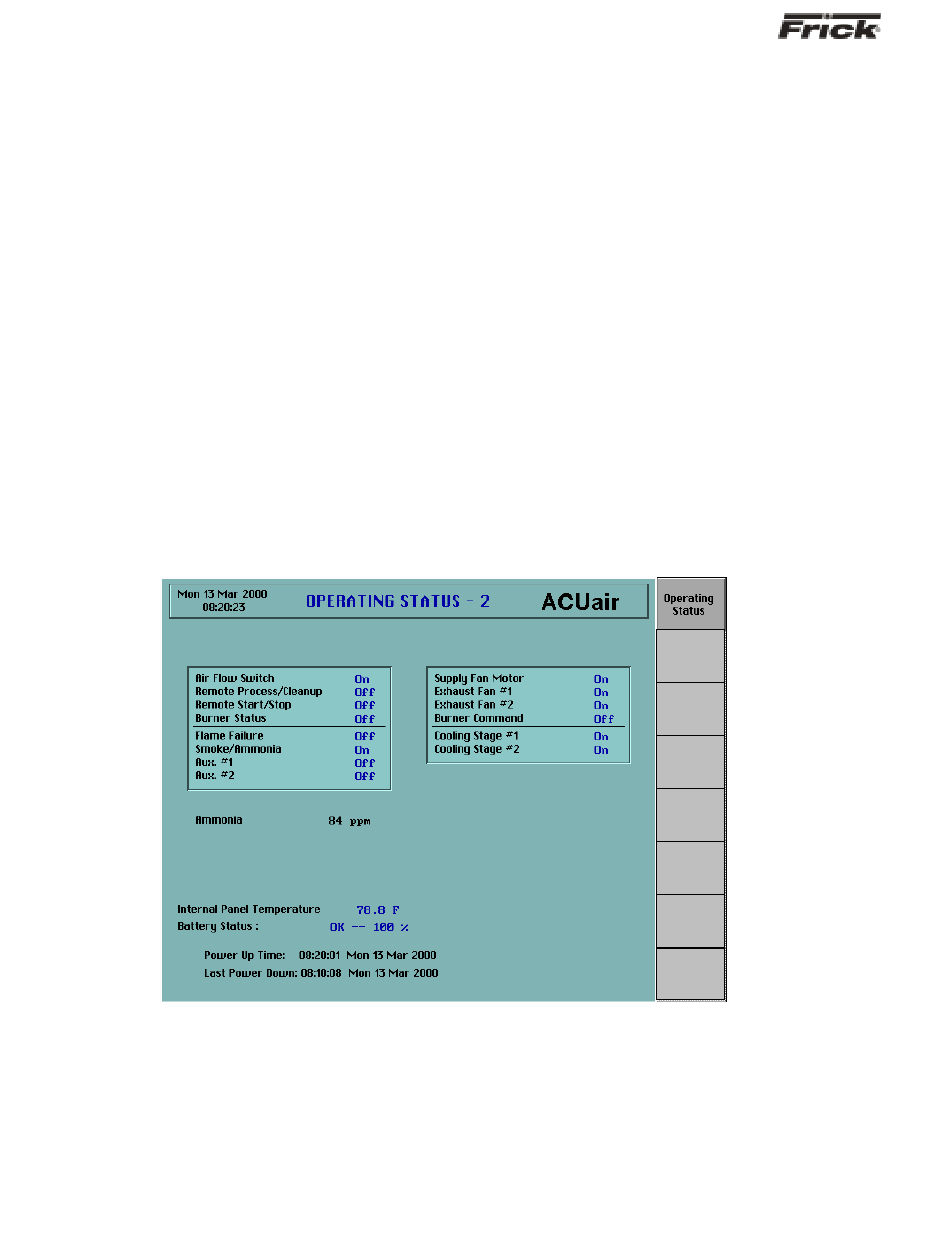

The Operating Status - 2 page displays additional
information that cannot be shown on the first page. Along
the left side of the page is the Input Status Box while on
the right side of the page is the Output Status Box. Below
these boxes, the current Ammonia reading may be
displayed if it is enabled.
ACUair INPUT STATUS BOX:
The present operating status of the digital inputs is shown.
One of the following messages is displayed:
•
On – The input is energized or turned on
•
Off - The input is de-energized or turned off.
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION
UNIT SELECTED –
"OPERATING STATUS - 2" SCREEN
"OPERATING STATUS" SCREEN -
SCREEN KEY SET
Following are the screen key selections for the "Operating
Status" screen:
•
[Menu] – Shows the "Main Menu" screen for the
selected Unit.
•
[Unit Mode] – The following control mode can be
selected:
•
[Remote] – The unit is turned on and off and set
to either Process or Cleanup Mode through
digital inputs. The unit can be returned to local
mode by pressing the "Mode", "Run" or "Stop"
buttons.
•
[Mode] – Toggles the unit between Process and
Cleanup Mode.
•
[Run] - Starts the unit if it is currently stopped.
•
[Stop] - Turns the unit off.
•
[Operating Status Page 2] - Shows the "Operating
Status - 2" page.
The following inputs are shown in the first block (if they
were enabled during the board setup).
•
Air Flow Switch
•
Remote Process/Cleanup
•
Remote Start/Stop
•
Burner Status
