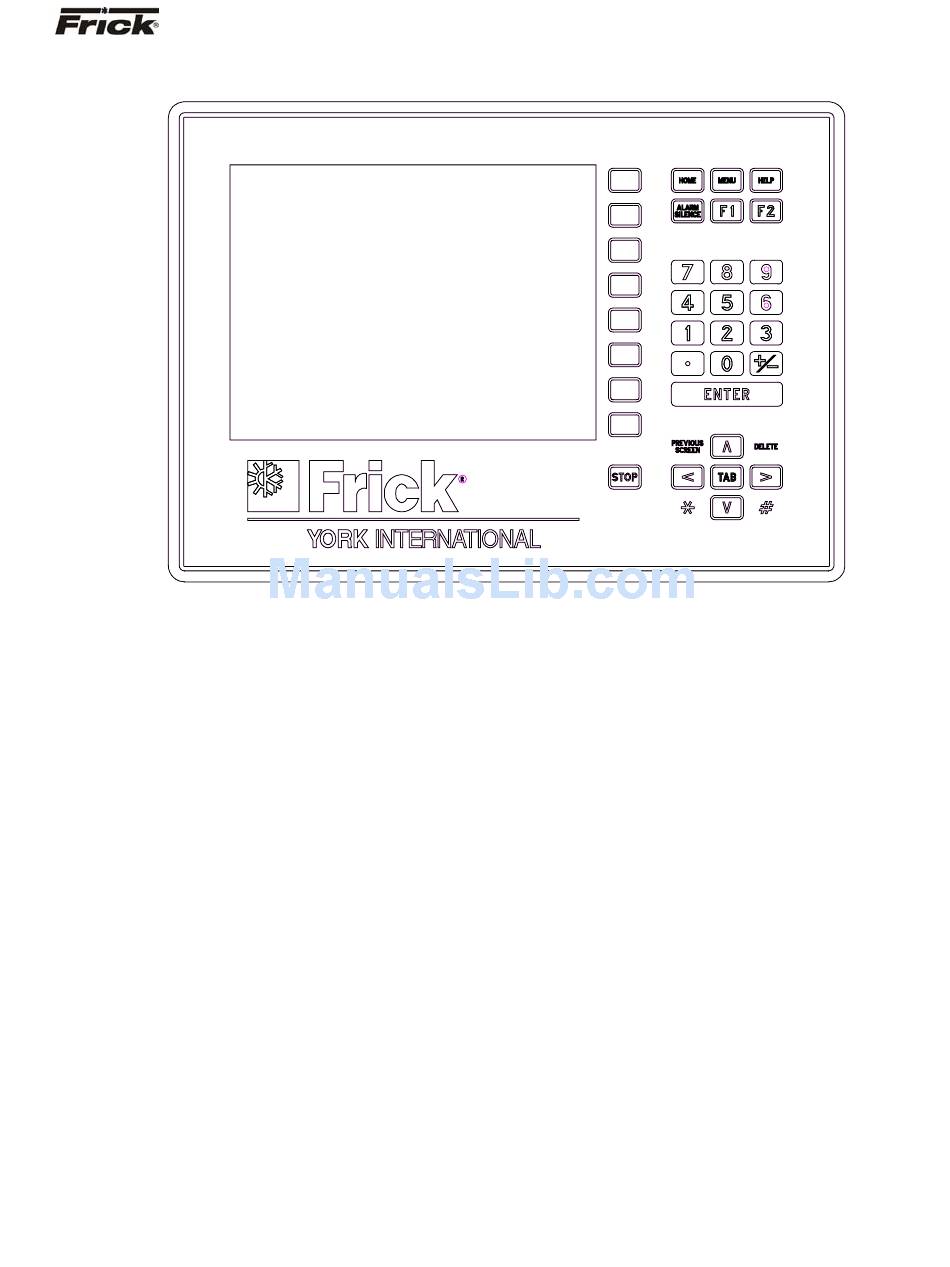

KEYPAD KEYS

Following is a list of the labeled keypad keys and the
actions that occur when they are pressed:
[HOME] – If an operator is logged on to an individual
zone and the "Operating Status" screen is not
presently showing, then this zone's "Operating
Status" screen is shown when this key is pressed.
Otherwise, the "Zone Overview" screen is shown. All
the pertinent readings and operational status of a
zone is shown on the "Operating Status" screen. An
overview of the most important information about all
the zones is shown on the "Zone Overview" screen.
[MENU] - Shows the "Main Menu" screen. This
screen has the main selections for an individual zone,
allowing access to information, setup of options, and
setpoint entry.
[HELP] - Displays the on-line "HELP". Information is
shown for the operation of the evaporator control
panel.
[F1] - A function key that is only active when a screen
indicates it as a selection key. Its function is
dependent on what the screen indicates will occur.
[F2] - A function key that is only active when a screen
indicates it as a selection key. Its function is
dependent on what the screen indicates will occur.
NUMERALS [0] - [9] - The numerical keys are used
to enter a value in a data field.
DECIMAL [.] - The decimal point is used when
entering a decimal value in a data field.
FRICK QUANTUM EVAPORATOR CONTROL PANEL
OPERATION

KEYS AND KEY FUNCTIONS

[+/-] - When changing a value in a data field, this key
will toggle the value between negative and positive.
This key is also used to disable time fields on the
Defrost and Time Schedules.
[ENTER] - When changing data in a data entry field,
this key will input the change.
[PREVIOUS SCREEN] - Shows the screen that was
viewed previously to the current screen. Also is used
to return to the previous set of screen keys when
accessing different sets of screen key selections on
the same screen.
[DELETE] - When changing a value in a data field,
this key will delete the selected character.
Up Arrow [Ù]- When in the mode of changing
setpoints, this arrow is used to go to the previous data
entry field.
Down Arrow [Ú]- When in the mode of changing
setpoints, this arrow is used to go to the next data
entry field.
Right Arrow [>]- When in the mode of changing
setpoints, this arrow is used to go to the next data
entry field. When in the mode of changing a data
entry field, this arrow is used to go to the next
character.
Left Arrow [<]- When in the mode of changing
setpoints, this arrow is used to go to the previous data
entry field. When in the mode of changing a data
entry field, this arrow is used to go to the previous
character.
