S90-500 O
Page 22

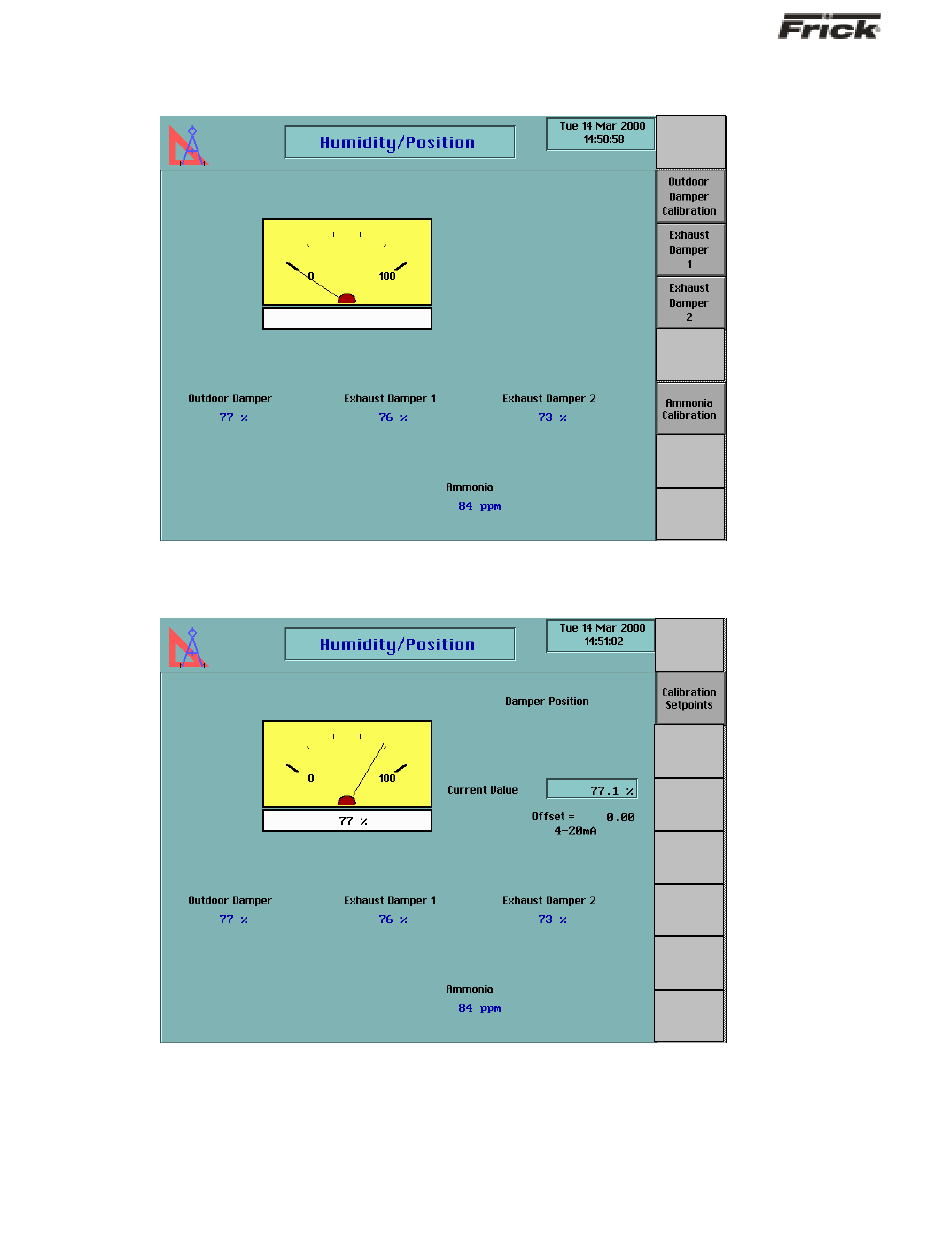

This screen shows a meter and the current analog
readings for:
•
Outdoor Damper
The Setting for the "Current Value" is blank until a value
for calibration is selected from the screen keys. A screen
key exists for each of the displayed analog readings.
When a button is selected, the identification of the analog
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION
ANALOG CALIBRATION -
"HUMIDITY/POSITION CALIBRATION" SCREEN
•
Exhaust Damper 1
•
Exhaust Damper 2
•
Ammonia
sensor and its settings are shown. It is at this time that
the meter will also show the current reading. Select the
[Calibration Setpoints] screen key to modify the present
calibration.
