Security can be setup to allow different operators different
access rights to setpoints. If access is presently denied
when an operator selects to [Change Setpoints] then a
message box will appear prompting the operator to enter
a password. If an operator has not changed any setpoint
within the last 15 minutes, the access level will change to
no access.
Three levels of access rights to changing setpoints is
provided:
1. Full access - allows an operator to change all
setpoints.
2. Moderate access - allows an operator to change
setpoints, but prevents changing safety setpoints.
3. No access - prevents an operator from changing any
setpoint.
To have full access requiring a password, enter a
password other than zero (0) for the full access entry. To
have moderate access, enter a different password for the
moderate access entry than the full access entry. If an
operator does not know an entered password then they
are prevented from changing any setpoints. To disable
security, enter zero (0) for both full and moderate access
entries. Disabling security allows any operator to change
all setpoints without entering a password.
The following information about the current security
access is shown:
Current Security Privilege Level:
1. No Access
2. Moderate Access
3. Full Access
FRICK QUANTUM CONTROL PANEL
ACUair OPERATION

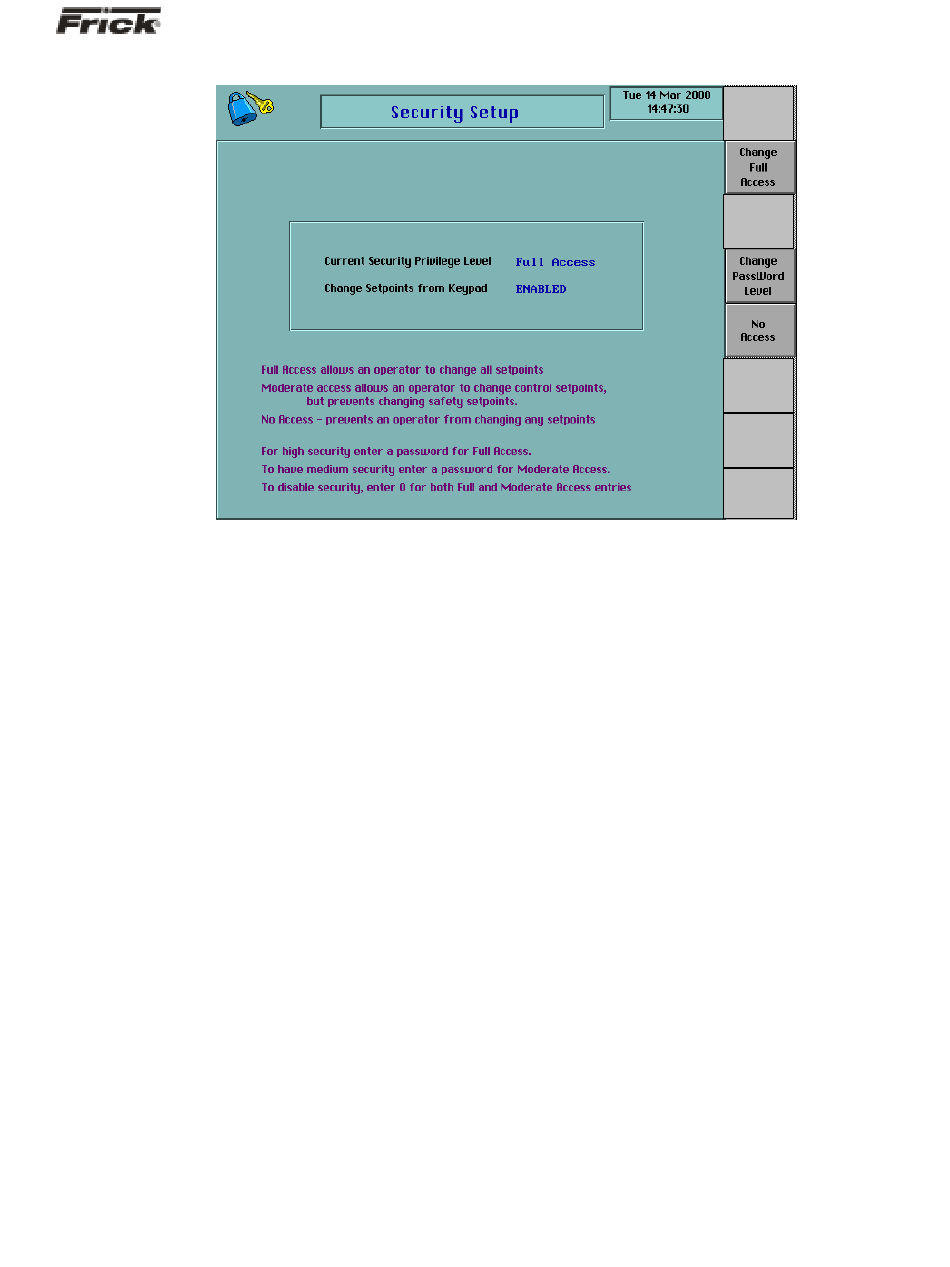

"SECURITY SETUP" SCREEN

Change Setpoints from Keypad:
1.
2.
If a password exists, then selecting a screen key will
cause a password entry box to appear.
password the operator must enter their password and
accept it (OK) which will cause another password entry
box to appear.
password for this access level. Accepting it will cause
another password entry box to appear. It prompts the
operator to re-enter the password to verify it. Properly re-
entering the password will cause a message box to
appear that says "Pass Number Changed". Improperly re-
entering the password will cause a message box to
appear that says, "Bad Verify Pass Number Not
Changed".
The following screen keys are used to setup security.
•
•
•
Change
Moderate
Access
Enabled
Disabled
It prompts the operator to enter the
[Change Full Access] - Select this key to change the
full access password. The operator can also enter
the current password to acquire full access privilege
without changing the password.
[Change Moderate Access] - Select this key to
change the moderate access password.
operator can also enter the current password to
acquire moderate access privilege without changing
the password.
[No Access] - Select this key to change the current
access privilege to no access. This cancels security
access to the system.
entered to gain security access after pressing this
key.
S90-500 O
Page 25
To change a
The
A password must be re-
