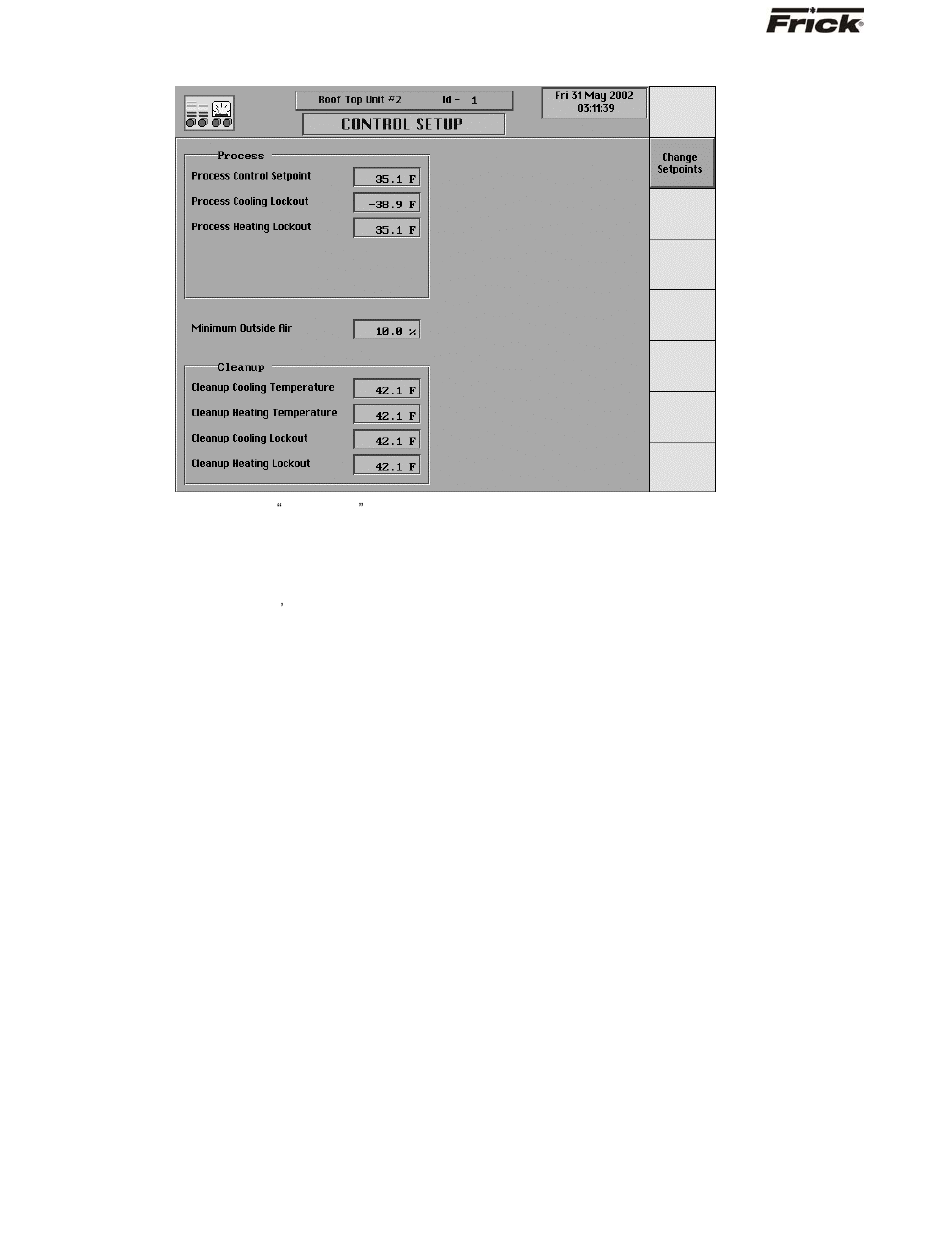

MAIN MENU SELECTION - "CONTROL SETUP" (1) SCREEN

This screen is accessible from the Main Menu screen
when Security is set to either "Moderate Access" or "No
Access". These setpoints are the only values that should
need to be changed in the daily operation of the unit.
After responding [OK] to changing these control setpoints,
they are written to the ACUair
back from there to be re-displayed. EPROM memory is
non-volatile and all information is retained even if the
power to the panel is lost. This process is used to confirm
that an ACUair ® control board properly receives control
setpoint changes.
This screen has the following setpoints:
· Process Control Setpoint - During Process
Mode, Return Air Temperature is maintained at
this setpoint.
· Process Cooling Lockout - During Process
Mode, if Outside Air Temperature drops below
this setpoint cooling is temporarily disabled.
· Minimum Outside Air - When the unit is
running, this setpoint defines the minimum
®
FRICK QUANTUM™ ACUair
OPERATION
®
board s EPROM and read
®
CONTROL PANEL
percent setting for the Outside Air Dampers. The
range for the Outside Air Dampers is 100% for
fully open and 0% for fully closed, so a Minimum
Outside Air Setpoint of 10% sets the minimum
damper position at 1/10 of the fully open position.
· Cleanup Cooling
Cleanup Mode if cooling is required, Discharge
Air Temperature is maintained at this setpoint.
· Cleanup Heating
Cleanup Mode if heating is required, Discharge
Air Temperature is maintained at this setpoint.
· Cleanup Cooling Lockout - During Cleanup
Mode, if Outside Air Temperature drops below
this setpoint cooling is temporarily disabled.
· Cleanup Heating Lockout - During Cleanup
Mode, if Outside Air Temperature rises above
this setpoint, heating is temporarily disabled.
Temperature - During
Temperature - During
