Chapter 2: Jumpers and Connectors

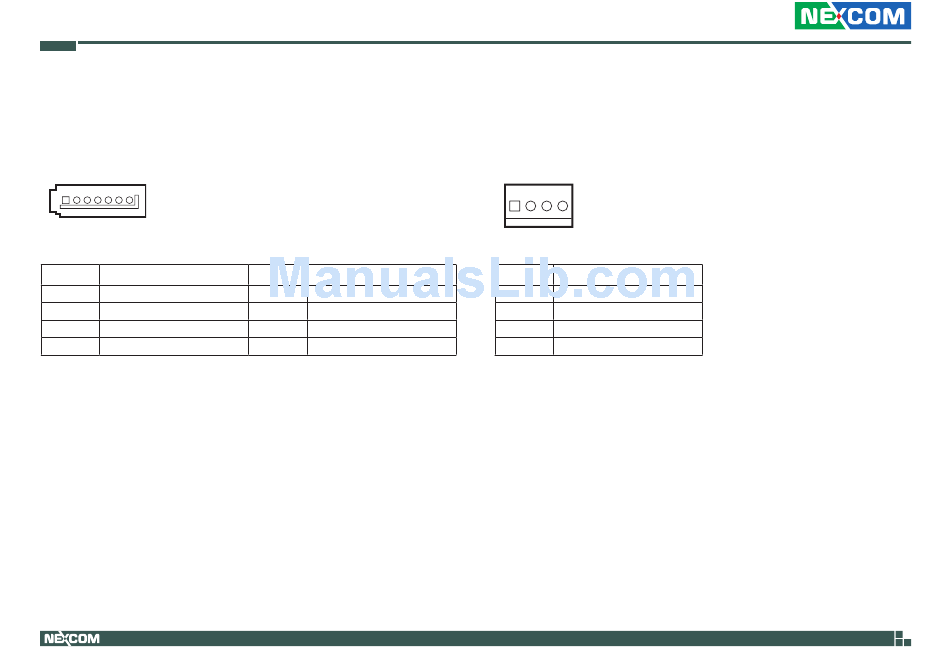

SATA1 Connector
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180)
Connector location: J4
1
7
Pin
Definition
1
GND
2
SATA_TXP0
3
SATA_TXN0
4
GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Pin
Definition
5
SATA_RXN0
6
SATA_RXP0
7
GND
SATA Power Connector
Connector type: 1x4 4-pin header, 2.54mm pitch
Connector location: CN5
1
4
Pin
Definition
1
+12V
2
GND
3
GND
4
VCC5
20
NISE 90 User Manual
