One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluating the
FEATURES
Fully featured evaluation board for the
On-board system demonstration platform (SDP-S) connector
for SPI
5 V operation through LDO
ACE
software interface for SPI control
EQUIPMENT NEEDED
5 V dc power supply
Baseband signal generator(s)
Spectrum analyzer
USB cable
SDP-S
controller board
DOCUMENTS NEEDED
ADMV4530 data sheet
SOFTWARE NEEDED
ACE
software
GENERAL DESCRIPTION
The ADMV4530IQ-EVALZ and the ADMV4530IF-EVALZ are
the two evaluation boards available for the
work in inphase/quadrature (I/Q) mode and intermediate
frequency (IF) mode, respectively. Both boards incorporate the
ADMV4530
Ka band upconverter with low dropout (LDO)
regulators and an interface to the
controller board to allow the simple and efficient evaluation of
the ADMV4530. The on-board LDO regulators allow the
ADMV4530
to be powered on by a single supply.
The
ADMV4530
is a highly integrated upconverter with an
I/Q mixer that is ideally suited for next generation Ka band
satellite communications. The chip can be programmed using a
4-wire serial port interface (SPI). The
user to interface with the
ADMV4530
Devices, Inc.,
Analysis, Control Evaluation
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ
ADMV4530
Dual-Mode, Ka Band Upconverter With Integrated
Fractional-N PLL and VCO
ADMV4530
ADMV4530
that
EVAL-SDP-CS1Z
(SDP-S)
SDP-S
controller allows the
SPI through the Analog
(ACE) software.
Evaluation Board User Guide

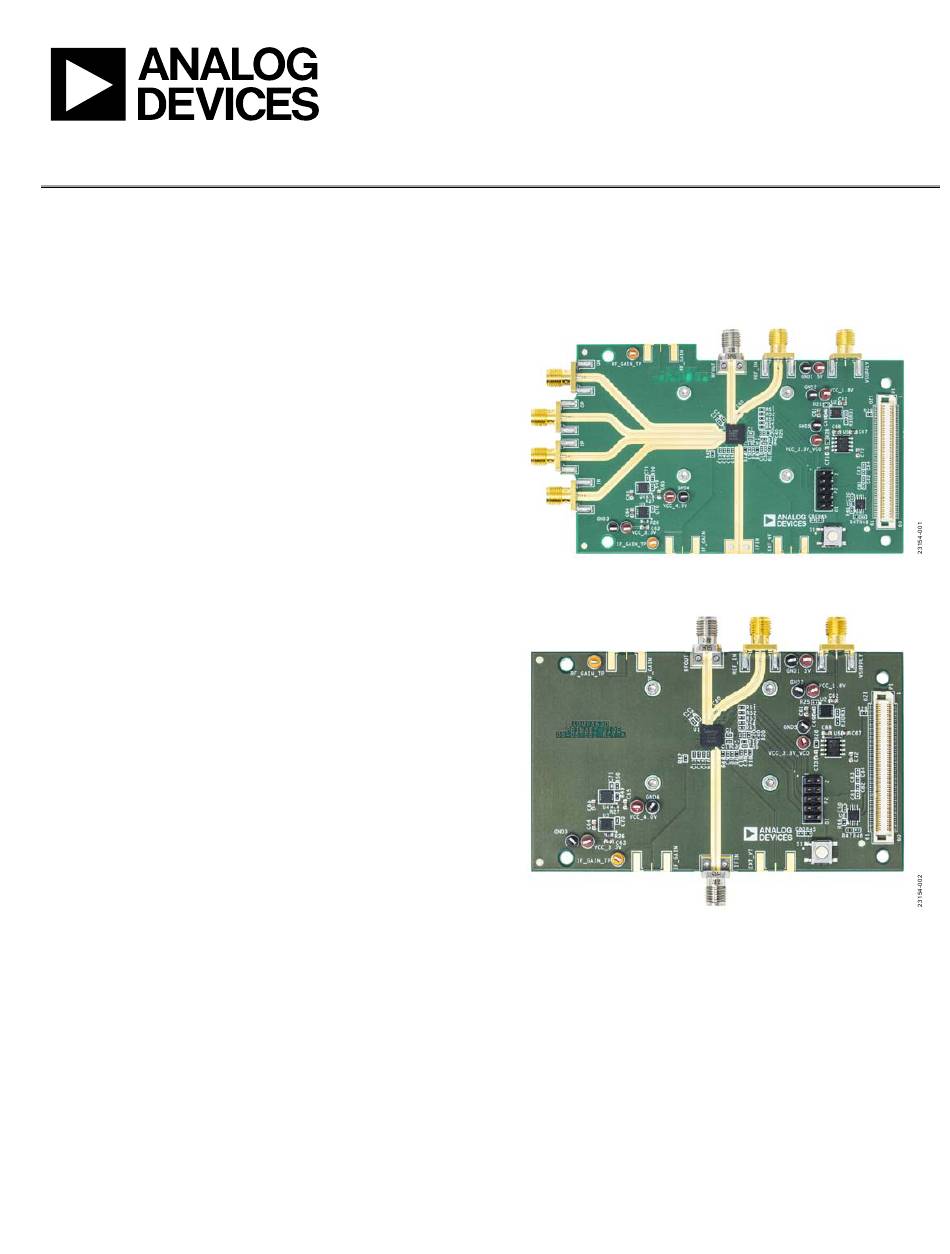

EVALUATION BOARD PHOTOGRAPHS
For full details on the ADMV4530, see the
sheet, which must be consulted in conjunction with this user
guide when using the ADMV4530IQ-EVALZ and the
ADMV4530IF-EVALZ.
Rev. A | Page 1 of 21

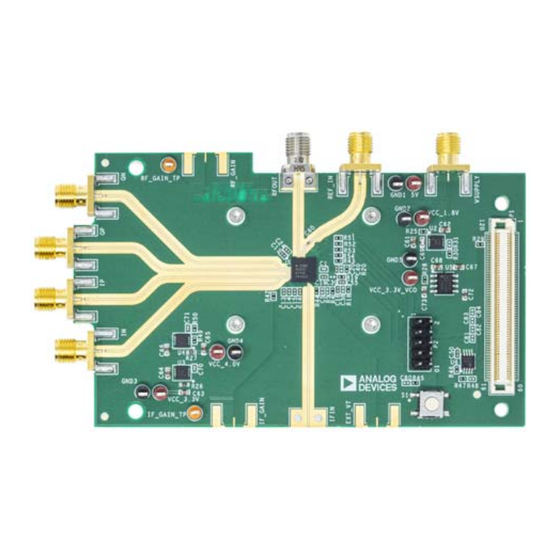

Figure 1. ADMV4530IQ-EVALZ
Figure 2. ADMV4530IF-EVALZ
ADMV4530
UG-1759
data
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Analog Devices ADMV4530IQ-EVALZ
Summary of Contents for Analog Devices ADMV4530IQ-EVALZ
-
Page 1: Features
Devices, Inc., Analysis, Control Evaluation (ACE) software. sheet, which must be consulted in conjunction with this user guide when using the ADMV4530IQ-EVALZ and the ADMV4530IF-EVALZ. PLEASE SEE THE LAST PAGE FOR AN IMPORTANT Rev. A | Page 1 of 21... -
Page 2: Table Of Contents
UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 ADMV4530IQ-EVALZ OR ADMV4530IF-EVALZ Quick Start ....................10 Equipment Needed ................1 Signal Generator Settings ............10 Documents Needed ................1 RF Gain Control ................. 11 ... -
Page 3: Evaluation Board Hardware
ADMV4530IF-EVALZ board, connect a spectrum analyzer (or similar instrument) to the RF output (RFOUT) port. SPECTRUM ANALYZER SIGNAL GENERATOR RF OUTPUT REFERENCE INPUT BASEBAND SIGNAL GENERATOR IQ INPUTS Figure 3. ADMV4530IQ-EVALZ Lab Bench Setup for I/Q Mode Rev. A | Page 3 of 21... - Page 4 UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide SPECTRUM ANALYZER SIGNAL GENERATOR RF OUTPUT REFERENCE INPUT IF SIGNAL GENERATOR IF INPUT Figure 4. ADMV4530IF-EVALZ Lab Bench Setup for IF Mode Rev. A | Page 4 of 21...
-
Page 5: Evaluation Board Software
SOFTWARE, ADMV4530 plug-in appears when the software is open (see Figure 6). PLUG-INS, AND DRIVERS Note that both the ADMV4530IQ-EVALZ and the ADMV4530IF- The ADMV4530IQ-EVALZ and the ADMV4530IF-EVALZ use EVALZ evaluation boards use the same plug-in, which the Analog Devices... -
Page 6: Plug-In Overview
ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide PLUG-IN OVERVIEW When either the ADMV4530IQ-EVALZ or the ADMV4530IQ- EVALZ is connected to the PC, the ADMV4530 Board appears in the Attached Hardware section. Double-clicking on the plug-in opens two tabs, the board level plug-in and the chip level plug-in, which are the ADMV4530 Board (see Figure 7) and the ADMV4530 (see Figure 8), respectively. -
Page 7: Plug-In Details
Block Diagram Label Functions (See Figure 9) Label Function Use the Initial Configuration to initialize the ADMV4530IQ-EVALZ or the ADMV4530IQ-EVALZ evaluation board. Set the following under the Initial Settings section: Mixer Mode Selection: select IF, I/Q, or user defined mode. - Page 8 UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide Label Function Use the Frequency & N Parameters section to change settings for the LO frequency after applying the initial settings in the Initial Configuration (Label A) section. This section includes the following: Requested LO Frequency and VCO Frequency: enter values in these two text boxes to trigger the INT, FRAC1, FRAC2, and MOD2 calculations.
- Page 9 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide UG-1759 Label Function Lock Detect: click the dropdown menu to change the counting cycles for lock detect. Loss of Lock: click the dropdown menu to enable or disable the loss of lock function. VCO_BAND_DIV, SYTNTH_LOCK_TIMEOUT, TIMEOUT, and VCO_ALC_TIMEOUT: use these text boxes to configure the parameters.
-
Page 10: Performing Evaluation
ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide PERFORMING EVALUATION ADMV4530IQ-EVALZ OR ADMV4530IF-EVALZ QUICK START To set up the ADMV4530IQ-EVALZ or the ADMV4530IF- EVALZ evaluation board, take the following steps: Connect the SDP-S to the 120-pin connector on the ADMV4530IQ-EVALZ or the ADMV4530IF-EVALZ evaluation board. -
Page 11: Rf Gain Control
ADMV4530IF-EVALZ evaluation board. Alternatively, There is a reset button (S1) on the ADMV4530IQ-EVALZ the power supply can be connected to the RF_GAIN SMA or the ADMV4530IF-EVALZ evaluation board. Pressing port. The power supply current limit must be set to 1 mA. -
Page 12: Evaluation Board Schematics And Artwork
UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide EVALUATION BOARD SCHEMATICS AND ARTWORK ADMV4530IQ-EVALZ Figure 12. ADMV4530IQ-EVALZ Evaluation Board Schematic, Page 1 Rev. A | Page 12 of 21... - Page 13 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide UG-1759 Figure 13. ADMV4530IQ-EVALZ Evaluation Board Schematic, Page 2 Rev. A | Page 13 of 21...
- Page 14 UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide Figure 14. ADMV4530IQ-EVALZ Evaluation Board Layer 1 Figure 15. ADMV4530IQ-EVALZ Evaluation Board Layer 2 Rev. A | Page 14 of 21...
- Page 15 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide UG-1759 Figure 16. ADMV4530IQ-EVALZ Evaluation Board Layer 3 Figure 17. ADMV4530IQ-EVALZ Evaluation Board Layer 4 Rev. A | Page 15 of 21...
-
Page 16: Admv4530If-Evalz
UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide ADMV4530IF-EVALZ Figure 18. ADMV4530IF-EVALZ Evaluation Board Schematic, Page 1 Rev. A | Page 16 of 21... - Page 17 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide UG-1759 Figure 19. ADMV4530IF-EVALZ Evaluation Board Schematic, Page 2 Rev. A | Page 17 of 21...
- Page 18 UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide Figure 20. ADMV4530IF-EVALZ Evaluation Board Layer 1 Figure 21. ADMV4530IF-EVALZ Evaluation Board Layer 2 Rev. A | Page 18 of 21...
- Page 19 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide UG-1759 Figure 22. ADMV4530IF-EVALZ Evaluation Board Layer 3 Figure 23. ADMV4530IF-EVALZ Evaluation Board Layer 4 Rev. A | Page 19 of 21...
-
Page 20: Ordering Information
UG-1759 ADMV4530IQ-EVALZ/ADMV4530IF-EVALZ Evaluation Board User Guide ORDERING INFORMATION BILL OF MATERIALS The ADMV4530IQ-EVALZ bill of materials is identical to the ADMV4530IF-EVALZ except for one row (see Note 1 of Table 2). Table 2. ADMV4530IQ-EVALZ Quantity Reference Designator Description Manufacturer Part Number 5V, VCC_1.8V, VCC_3.3V,... - Page 21 By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
