One Technology Way • P.O. Box 9106 • Norwood, MA 02062-9106, U.S.A. • Tel: 781.329.4700 • Fax: 781.461.3113 • www.analog.com
Evaluation Board for the
FEATURES
Half-duplex, isolated RS-485 transceiver
PROFIBUS compliant
Suitable for 5 V or 3 V operation on V
Suitable for 5 V operation on V
20 Mbps data rate
50 nodes on bus
V
= 560 V peak
IORM
ADM2486 APPLICATIONS
Isolated RS-485/RS-422 interfaces
PROFIBUS networks
Industrial field networks
Multipoint data transmission systems
EVALUATION KIT CONTENTS
EVAL–ADM2486EBZ
PLEASE SEE THE LAST PAGE FOR AN IMPORTANT
WARNING AND LEGAL TERMS AND CONDITIONS.
ADM2486
RS-485 Transceiver
DD1
DD2

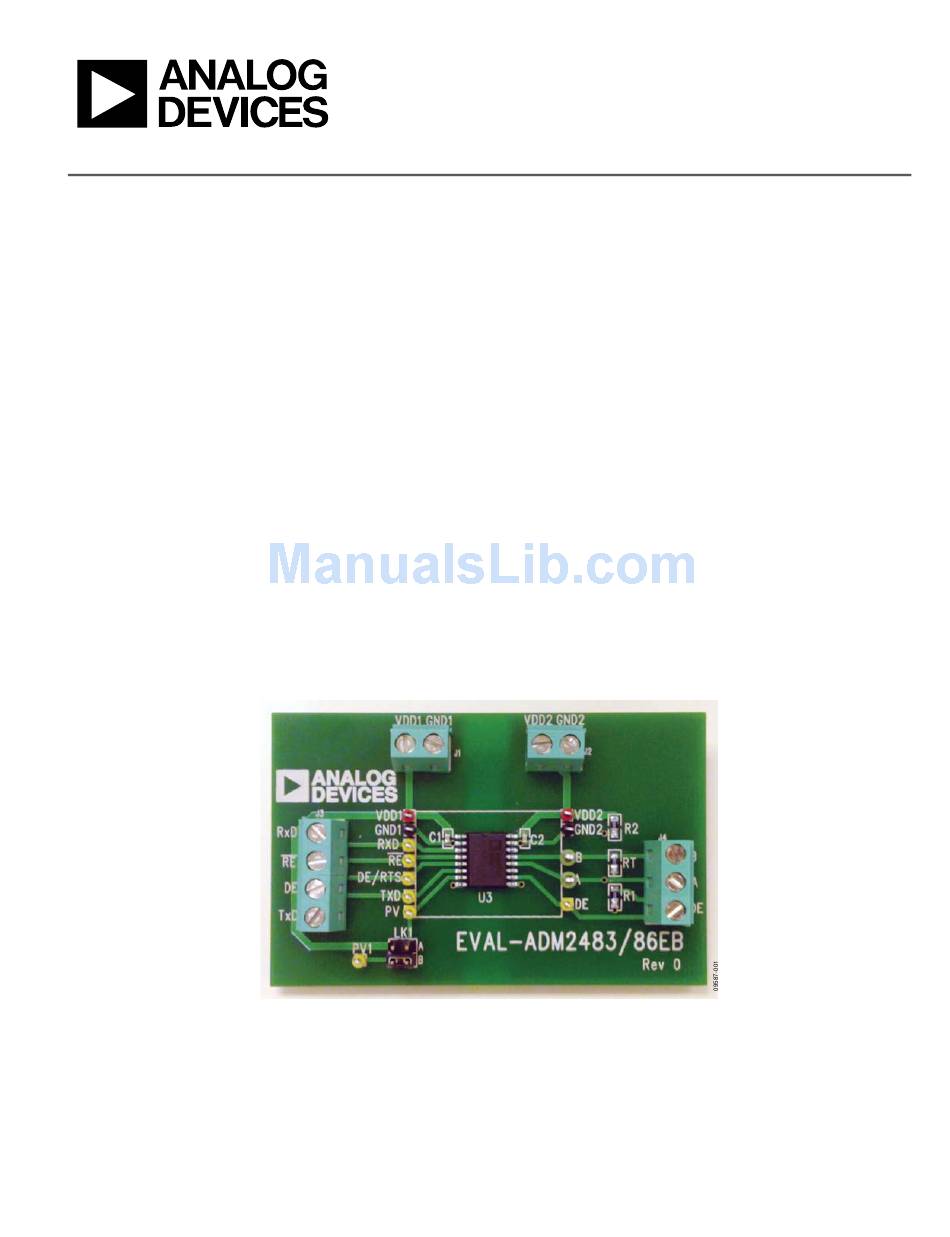

EVALUATION BOARD DIGITAL PHOTOGRAPH
www.BDTIC.com/ADI
Rev. 0 | Page 1 of 8
Evaluation Board User Guide
High Speed, Half-Duplex iCoupler Isolated
GENERAL DESCRIPTION
The EVAL-ADM2486EBZ allows the isolated
transceivers to be easily and quickly evaluated. The evaluation
board allows all of the input and output functions to be exercised
without the need for external components.
The
ADM2486
differential bus transceiver is an integrated,
galvanically isolated component designed for bidirectional data
communication on multipoint bus transmission lines.
The device employs Analog Devices, Inc., iCoupler® technology
to combine a 3-channel isolator, a three-state differential line
driver, and a differential input receiver into a single package.
The logic side of the device is powered with either a 5 V or a
3 V supply, and the bus side uses an isolated 5 V supply.
Figure 1.
UG-240
ADM2486
RS-485
Advertisement
Table of Contents
Related Manuals for Analog Devices EVAL–ADM2486EBZ
Summary of Contents for Analog Devices EVAL–ADM2486EBZ
-
Page 1: Features
= 560 V peak IORM communication on multipoint bus transmission lines. The device employs Analog Devices, Inc., iCoupler® technology ADM2486 APPLICATIONS to combine a 3-channel isolator, a three-state differential line driver, and a differential input receiver into a single package. -
Page 2: Table Of Contents
UG-240 Evaluation Board User Guide TABLE OF CONTENTS Features ....................1 Evaluation Board Configurations ...........3 ADM2486 Applications ..............1 Setting Up the Evaluation Board..........3 Evaluation Kit Contents..............1 Evaluation Board Schematic and Artwork........4 ... -
Page 3: Evaluation Board Configurations
Evaluation Board User Guide UG-240 EVALUATION BOARD CONFIGURATIONS SETTING UP THE EVALUATION BOARD The logic side is suitable for 5 V or 3 V operation on VDD1. There is a 0.1 μF decoupling capacitor, C1, fitted between VDD1 and The EVAL-ADM2486EBZ allows the isolated ADM2486 GND1. -
Page 4: Evaluation Board Schematic And Artwork
UG-240 Evaluation Board User Guide EVALUATION BOARD SCHEMATIC AND ARTWORK Figure 2. EVAL-ADM2486EBZ Evaluation Board Circuit Diagram DE/RTS DE/RTS Figure 3. EVAL-ADM2486EBZ Evaluation Board Silkscreen Figure 4. EVAL-ADM2486EBZ Evaluation Board Component Side www.BDTIC.com/ADI Rev. 0 | Page 4 of 8... - Page 5 Evaluation Board User Guide UG-240 Figure 5. EVAL-ADM2486EBZ Evaluation Board Solder Side www.BDTIC.com/ADI Rev. 0 | Page 5 of 8...
-
Page 6: Ordering Information
Lumberg/KRM 03 CON\POWER4, 4-pin terminal block Lumberg/KRM 04 Board-to-board connector header, 4-way, SPC Technology/SPC20499 2-row and Jumper ×2 HARWIN/M7566-05 SO16WB Analog Devices/ADM2486BRWZ GND1, GND2 Test point, black Vero Technologies/20-2137 VDD1, VDD2 Test point, red Vero Technologies/20-313137 A, B Test point, green... - Page 7 Evaluation Board User Guide UG-240 NOTES www.BDTIC.com/ADI Rev. 0 | Page 7 of 8...
-
Page 8: Www.bdtic.com/Adi Rev. 0 | Page 2 Of
By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation Board until you have read and agreed to the Agreement.
