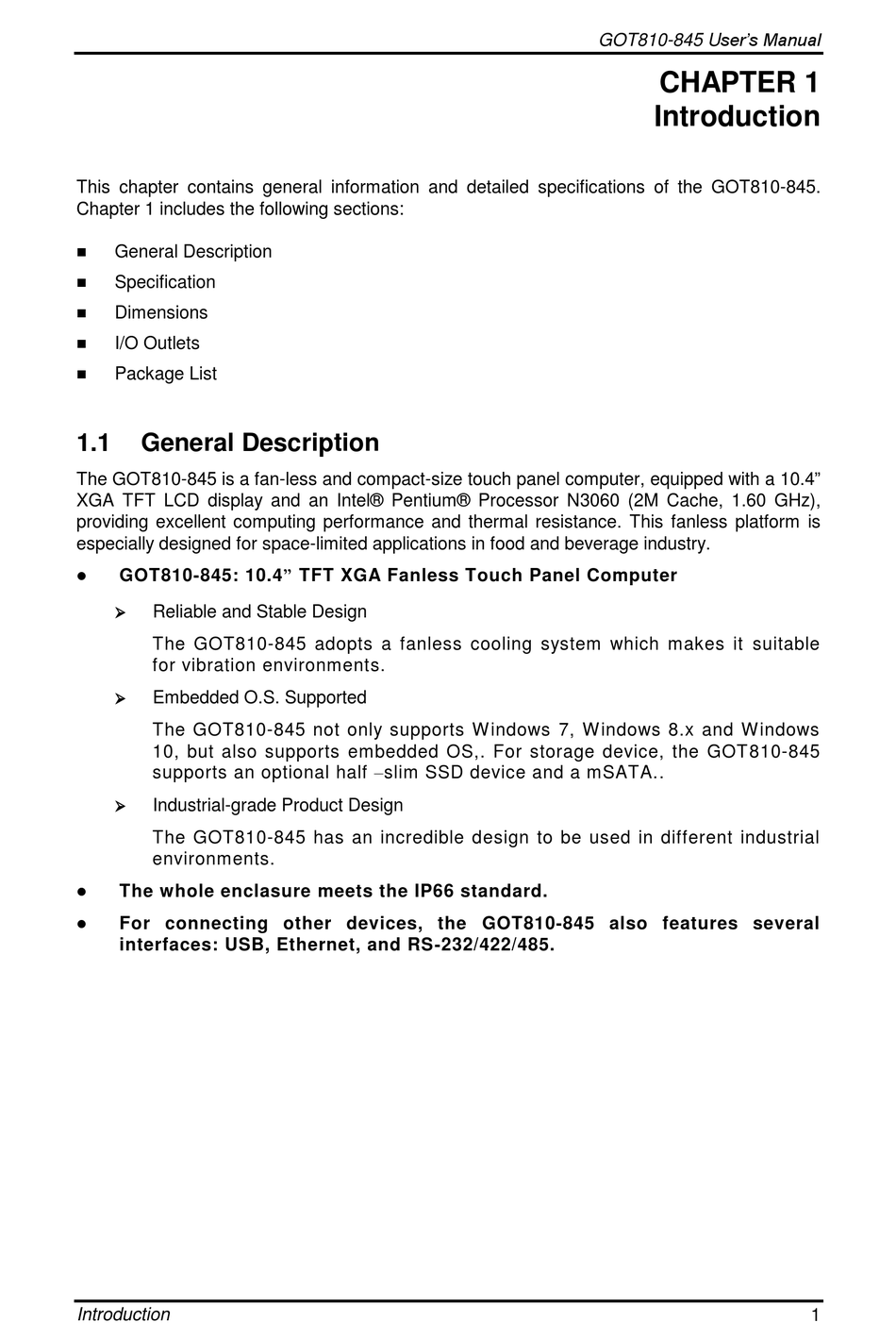

Chapter 1 Introduction; General Description - AXIOMTEK GOT810 User Manual

This chapter contains general information and detailed specifications of the GOT810-845.
Chapter 1 includes the following sections:


General Description

 Specification
 Dimensions
 I/O Outlets
 Package List
1.1 General Description
The GOT810-845 is a fan-less and compact-size touch panel computer, equipped with a 10.4"
XGA TFT LCD display and an Intel® Pentium® Processor N3060 (2M Cache, 1.60 GHz),
providing excellent computing performance and thermal resistance. This fanless platform is
especially designed for space-limited applications in food and beverage industry.
 GOT810-845: 10.4" TFT XGA Fanless Touch Panel Computer
 Reliable and Stable Design
The GOT810-845 adopts a fanless cooling system which makes it suitable
for vibration environments.
 Embedded O.S. Supported
The GOT810-845 not only supports W indows 7, W indows 8.x and W indows
10, but also supports embedded OS,. For storage device, the GOT810-845
supports an optional half –slim SSD device and a mSATA..
 Industrial-grade Product Design
The GOT810-845 has an incredible design to be used in different industrial
environments.
 The whole enclasure meets the IP66 standard.
 For connecting other devices, the GOT810-845 also features several
interfaces: USB, Ethernet, and RS-232/422/485.
Introduction
GOT810-845 User's Manual
CHAPTER 1
Introduction
1
