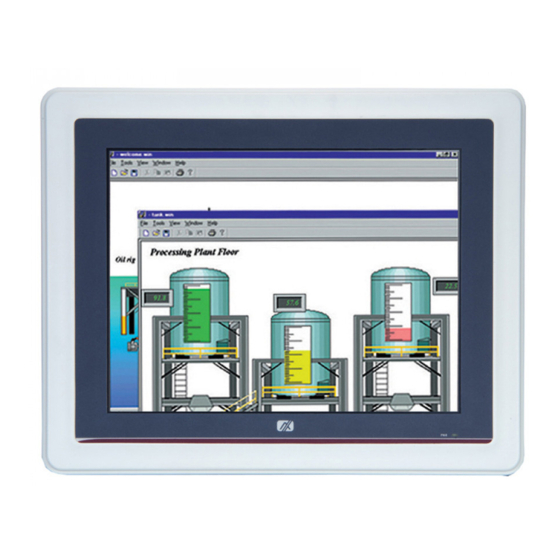

GOT5100T-845
All-in-One
10.4" XGA/SVGA TFT Fanless Touch Panel
Computer with Intel® Celeron® Processor
N3060 onboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT5100T-845 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK GOT5100T-845

Summary of Contents for AXIOMTEK GOT5100T-845

  • Page 1 GOT5100T-845 All-in-One 10.4” XGA/SVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3060 onboard User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Disconnect the power cords from the GOT5100T-845 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT5100T-845 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Section 1 Introduction ..........1 General Description ................1 Specifications ..................2 Dimensions ..................4 I/O Outlets .................... 6 Packing List ..................7 Section 2 Hardware and Installation ...... 9 SBC87845 Jumpers and Connectors..........
  • Page 5 Section 4 Drivers Installation ......45 System ....................45 4.1.1 Driver Content ................... 45 Touch Screen ..................46 4.2.1 Specification ....................46 4.2.2 Driver Installation- Windows 7/8.x ............. 47 Embedded O.S................... 49 4.3.1 WES 7 & WE8S ..................49 Appendix A Watchdog Timer &...
  • Page 6 This page is intentionally left blank.

  • Page 7: Introduction

    10.4” TFT LCD display and low power consumption Intel® Celeron® Processor N3060 (2M Cache, up to 2.48 GHz). The GOT5100T-845 supports Windows 7, Windows 8.x, Windows 10 and Windows embedded OS. The panel computer is able to install mSATA and provide two Mini card slots for wireless module.

  • Page 8: Specifications

    ◼ 1 x Mini-card slot (supports mSATA, optional) ⚫ Storage ◼ One mSATA ◼ One 2.5” SSD ⚫ Power connector ◼ GOT5100T-845-J: 12VDC w/external 60W AC Adapter with screw type connector or ◼ GOT5100T-845-24VDC: 24VDC with phoenix power connector Introduction...
  • Page 9 GOT5100T-845 User’s Manual System Specification ⚫ 10.4” XGA/SVGA (1024x768/800x600) LCD with LED backlight ⚫ 5 wired Resistive Touch ⚫ Fanless Heat Dispensing Design ⚫ Disk drive housing: ◼ One 2.5” SATA drive ⚫ Net Weight ◼ 1.8 Kgs (3.96 lb) ⚫...

  • Page 10: Dimensions

    GOT5100T-845 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT5100T-845. Introduction...
  • Page 11 GOT5100T-845 User’s Manual Introduction...

  • Page 12: I/O Outlets

    GOT5100T-845 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT5100T-845. Function Function POWER SWITCH (ATX) COM 2(RS-232) Power Input connector (Screw) HDMI Power Input connector (Phoenix) Dual USB 3.0 ports Dual USB 2.0 ports...

  • Page 13: Packing List

    ⚫ Phoenix connector x1 (for GOT5100T-845-24VDC) ⚫ Power Adapter & power cord (for GOT5100T-845-J) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. ： CAUTION There are 4 pieces of HDD sponge in packing list when shipment without HDD/SDD pre-installed.
  • Page 14 GOT5100T-845 User’s Manual This page is intentionally left blank. Introduction...

  • Page 15: Hardware And Installation

    GOT5100T-845 User’s Manual Section 2 Hardware and Installation The GOT5100T-845 provides rich I/O ports and flexible expansions for you to meet different demands. The chapter will show you how to install the hardware. It includes: ⚫ SBC87845 Jumpers and Connectors ⚫...

  • Page 16: Sbc87845 Jumpers And Connectors

    GOT5100T-845 User’s Manual SBC87845 Jumpers and Connectors Component Side Hardware and Installation...
  • Page 17 GOT5100T-845 User’s Manual Solder Side Hardware and Installation...

  • Page 18: Jumper Settings

    GOT5100T-845 User’s Manual 2.1.1 Jumper Settings Making the proper jumper settings configure the SBC87845 to match the needs of your application. The following table shows the default jumper settings for the onboard devices. ★ Default Setting Jumper Jumper Setting ★ OSD function: LCD ON/OFF...

  • Page 19: Connectors

    GOT5100T-845 User’s Manual 2.1.2 Connectors The connectors allow the CPU Board to connect with other parts of the system. Ensure that all connectors are in place and firmly attached. The following table lists the function of each connector on the SBC87845...
  • Page 20 GOT5100T-845 User’s Manual LVDS connector: CN2 Pin Assignment Description Description LVDSA_DATAN0 LVDSB_DATAN2 LVDSA_DATAP0 LVDSB_DATAP2 Resolution selection [0] Resolution selection [1] LVDSA_DATAN1 LVDSA_DATAN3 LVDSB_DATAN3 LVDSA_DATAP1 LVDSB_DATAN0 LVDSA_DATAP3 LVDSB_DATAP3 LVDSB_DATAP0 LVDSA_DATAN2 LVDSA_CLKN LVDSB_CLKN LVDSA_DATAP2 LVDSB_DATAN1 LVDSA_CLKP LVDSB_CLKP Resolution selection [2] LVDSB_DATAP1 Resolution selection [3]...
  • Page 21 GOT5100T-845 User’s Manual HDD power connector: CN6 Description +12V SIM card connector: CN8 Description Description UIM PWR UIM RST UIM VPP UIM CLK UIM DATA DIO connector: CN9 Description GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 +3.3V GPIO7 Hardware and Installation...
  • Page 22 GOT5100T-845 User’s Manual Power connector: CN10 Description DCIN (+12V) DCIN (+12V) Power button connector: CN12 Description Description PWBTN TOUCH connector: CN13 Description Sense Lin/Mic In connector: CN16 Description Description LIN IN R LIN IN L MIC IN Speaker connector: CN17...
  • Page 23 GOT5100T-845 User’s Manual System Fan connector: CN18 Description +12V / Speed control output Fan speed detect USB2.0 connector: CN19 Description Description USB- USB- USB+ USB+ +5V Standby Power connector: CN28, CN29 Description Description +5V_SBY ⚫ COM port Connector The pin assignment of RS-232/RS-422/RS-485 is listed on the following table.

  • Page 24: Ethernet

    GOT5100T-845 User’s Manual Ethernet The GOT5100T-845 is equipped with two high performance Plug and Play Ethernet interfaces, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 25: Mountings - Panel/Wall/Desktop/Vesa

    GOT5100T-845 User’s Manual Mountings – Panel/Wall/Desktop/VESA There are several mounting ways for the GOT5100T-845, Panel, Wall, Desktop and VESA mountings. 2.3.1 Panel Mounting (optional) The GOT5100T-845 is designed for panel mount application. Hardware and Installation...

  • Page 26: Wall-Mounting (Optional)

    GOT5100T-845 User’s Manual 2.3.2 Wall-Mounting (optional) The GOT5100T-845 is designed for Wall mounting application. Please refer to the following steps: Fix wall mount bracket on the back of the unit. 2.3.3 Desktop-Mounting The GOT5100T-845 is designed for desktop mounting application. Please refer to the following...
  • Page 27 GOT5100T-845 User’s Manual Step 2 Assemble the desktop stand to the chassis and fix the screws. ： CAUTION Use recommended/suitable mounting apparatus to avoid risk of injury. Hardware and Installation...

  • Page 28: Vesa-Arm Mounting

    GOT5100T-845 User’s Manual 2.3.4 VESA-ARM Mounting Step 1 Find out the screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis and fix the screws. Step 3 VESA mounting Installation completed.

  • Page 29: Hdd Installation

    GOT5100T-845 User’s Manual HDD Installation The GOT5100T-845 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: Step 1 Unscrew eight screws to open the back cover. Step 2 Find out the HDD slot in back cover.
  • Page 30 GOT5100T-845 User’s Manual Step 3 Unscrew the thumbscrew. → ： CAUTION When the HDD thickness is less than 9.5mm, please add HDD sponges. Step 4 Insert the 2.5” SATA HDD to the connector. Hardware and Installation...

  • Page 31: Dram Installation

    Step 5 Screw the thumbscrew. Installation completed. DRAM Installation The GOT5100T-845 provides one 204-pin DDR3L SODIMM socket that support system memory up to 8GB. Please follow steps below to install the memory modules: Step 1 Open the back cover and find out the DIMM socket on main board (SBC87845).
  • Page 32 GOT5100T-845 User’s Manual Step 2 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket. Step 3 Install the memory module into the socket and push it firmly down until it is fully seated.

  • Page 33: Mini Cards Card Installation

    Mini cards Card Installation 2.6.1 Wireless LAN Card Installation The GOT5100T-845 provides two Mini card slots for user to install wireless LAN cards. You can choose either slot 1 or slot 2 to install the wireless LAN card and refer to the following...
  • Page 34 GOT5100T-845 User’s Manual Step 3 Find the built-in Antenna cable. There are two connectors on wireless LAN card. One is MAIN, and the other is secondary. Connect antenna cable to MAIN connector on wireless LAN card. Hardware and Installation...

  • Page 35: Msata Card Installation

    GOT5100T-845 User’s Manual 2.6.2 mSATA Card Installation The GOT5100T-845 provides one Mini card slot for user to install mSATA. Please choose the slot 2 when installing the mSATA card and refer to the following instructions and illustration: Step 1 Open the back cover and find out the mini-card slot on main board.

  • Page 36: Power Input (Phoenix Type)

    GOT5100T-845 User’s Manual Power Input (Phoenix type) GOT5100T-845 equips with a phoenix type power connector. It adopts 24VDC. Please follow the signs on power connector to connect DC power source. －:Power negative +: Power positive Hardware and Installation...

  • Page 37: Ami Bios Setup Utility

    GOT5100T-845 User’s Manual Section 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process.

  • Page 38: Main Menu

    GOT5100T-845 User’s Manual Main Menu System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the <Arrow> keys. Enter new values through the keyboard. Press the <Tab> key or the <Arrow> keys to move between fields. The date must be entered in MM/DD/YY format. The time is entered in HH:MM:SS format.

  • Page 39: Advanced Menu

    GOT5100T-845 User’s Manual Advanced Menu The Advanced menu allows users to set configuration of the CPU and other system devices. You can select any of the items in the left frame of the screen to go to the sub menus: ⚫...
  • Page 40 GOT5100T-845 User’s Manual NCT6106D Super IO Configuration Use this screen to select options for the Super IO Configuration, and change the value of the selected option AMI BIOS Setup Utility...
  • Page 41 GOT5100T-845 User’s Manual ⚫ Serial Port 1-2 configuration Serial port This option used to enable or disable the serial port. Device Setting This item specifies the base I/O port address and Interrupt Request address of serial port. The port 1 Optimal setting is 3F8/IRQ4.
  • Page 42 GOT5100T-845 User’s Manual Hardware Monitor This screen shows the Hardware Health Status in real time. ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 43 GOT5100T-845 User’s Manual CPU Configuration This screen shows the CPU Configuration and intel virtualization technology enable/disable selected. SATA Configuration You can use this screen to select options for the SATA Configuration, and change the value of the selected option. ⚫...
  • Page 44 GOT5100T-845 User’s Manual USB Configuration This screen shows the USB Configuration. Utility Configuration This screen shows the Utility Configuration. AMI BIOS Setup Utility...
  • Page 45 GOT5100T-845 User’s Manual PCIE/mSATA Mini Card Configuration This screen shows the PCIE/mSATA Mini Card Configuration. Here are the options for your selection, PCIE, mSATA. AMI BIOS Setup Utility...

  • Page 46: Chipset Menu

    GOT5100T-845 User’s Manual Chipset Menu The Chipset menu gives the North Bridge memory information and South Bridge TXE information. North Bridge This screen shows the North Bridge memory information. AMI BIOS Setup Utility...
  • Page 47 GOT5100T-845 User’s Manual South Bridge This screen shows the South Bridge TXE information. AMI BIOS Setup Utility...

  • Page 48: Security

    GOT5100T-845 User’s Manual Security AMI BIOS Setup Utility...

  • Page 49: Boot Menu

    GOT5100T-845 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. You can select any of the items in the left frame of the screen to go to the sub menus: Setup Prompt Timeout...

  • Page 50: Save & Exit

    GOT5100T-845 User’s Manual Save & Exit AMI BIOS Setup Utility...

  • Page 51: Drivers Installation

    GOT5100T-845 User’s Manual Section 4 Drivers Installation System GOT5100T-845 supports Windows 7, Windows 8/8.1, WES 7 and WE8S. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. 4.1.1 Driver Content Please download the following GOT5100T-845 driver from Axiomtek official website”.

  • Page 52: Touch Screen

    GOT5100T-845 User’s Manual Touch Screen The GOT5100T-845 uses the 5-wire analog resistive. There are the specification and driver installation which are listed below. 4.2.1 Specification Touch Screen 5-wire Analog Resistive type Touch Screen Controller PenMount 6000 USB Touch Screen Controller IC...

  • Page 53: Driver Installation- Windows 7/8.X

    GOT5100T-845 User’s Manual 4.2.2 Driver Installation- Windows 7/8.x The GOT5100T-845 provides a touch screen driver that users can install it under the operating system Windows 7/8.x. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 54 GOT5100T-845 User’s Manual Select the “Standard Calibrate” tab. Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...

  • Page 55: Embedded O.s

    GOT5100T-845 User’s Manual Embedded O.S. The GOT5100T-845 provides the WES 7 and WE8S Embedded. The O.S. is supported devices which are listed below. 4.3.1 WES 7 & WE8S Here are supported onboard devices: Onboard Multi I/O ◼ SATA HDD ◼...
  • Page 56 GOT5100T-845 User’s Manual This page is intentionally left blank. Drivers Installation...

  • Page 57: Appendix A Watchdog Timer & Dio Programming

    GOT5100T-845 User’s Manual Appendix A Watchdog Timer & DIO Programming About Watchdog Timer Software stability is major issue in most application. Some embedded systems are not watched by human for 24 hours. It is usually too slow to wait for someone to reboot when computer hangs.

  • Page 58: Wdt Sample Program

    GOT5100T-845 User’s Manual WDT Sample Program Enable WDT 1.Enable configuration -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 08 3. WDT Device Enable -O 2E 30 -O 2F 01 4. Set timer unit -O 2E F0 -O 2F 00 ➔...

  • Page 59: How To Use Dio Software Programming

    GOT5100T-845 User’s Manual How to Use DIO Software Programming Digital I/O Software Programming ⚫ I2C to GPIO PCA9554 ⚫ I2C address: 0b01000000. Watchdog Timer & DIO Programming...
  • Page 60 GOT5100T-845 User’s Manual Watchdog Timer & DIO Programming...
