GOT817-834 User's Manual
1.2

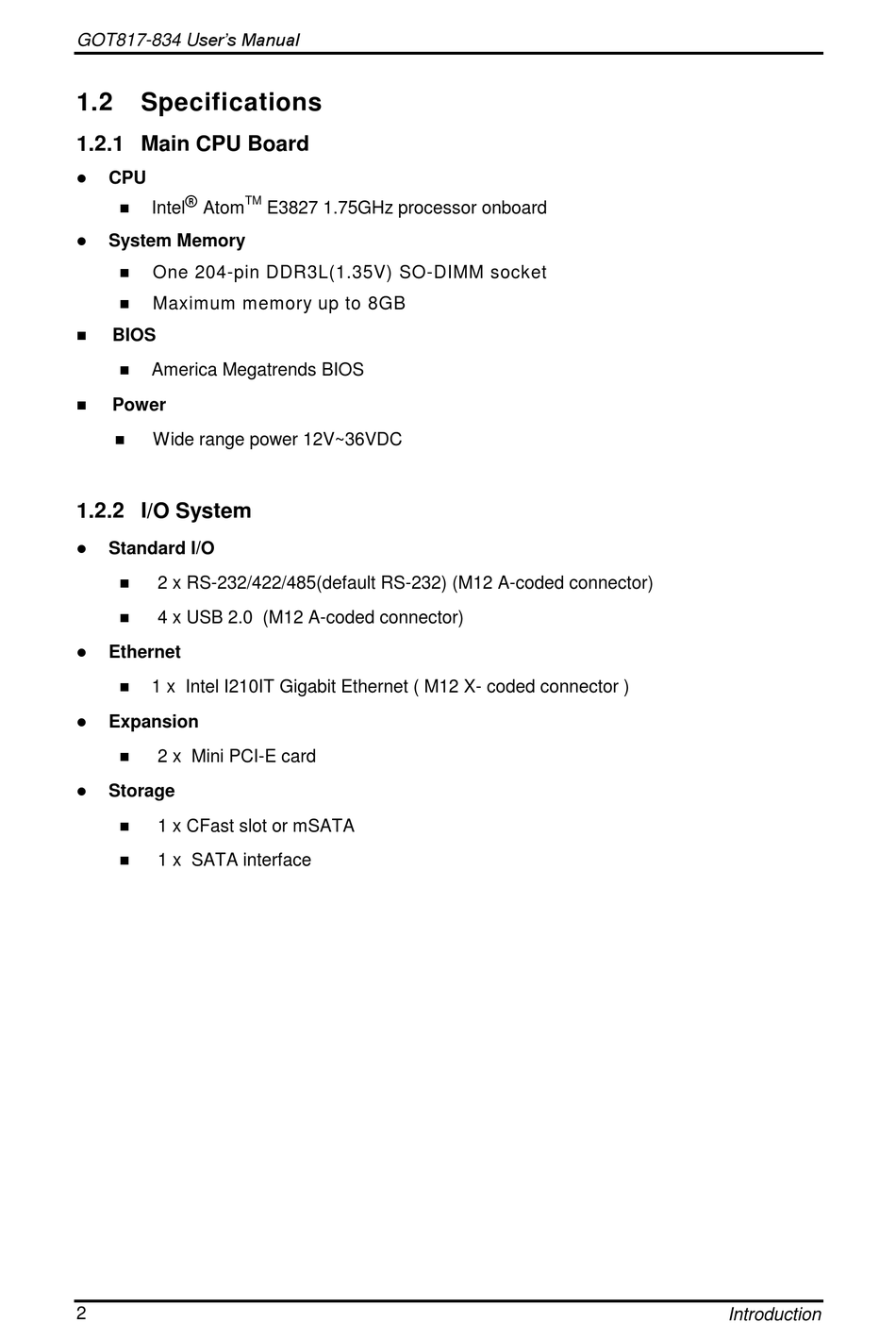

Specifications

1.2.1 Main CPU Board

 CPU
®
TM

Intel Atom
 System Memory
 One 204-pin DDR3L(1.35V) SO-DIMM socket
 Maximum memory up to 8GB
 BIOS
 America Megatrends BIOS
 Power
 Wide range power 12V~36VDC

1.2.2 I/O System

 Standard I/O
 2 x RS-232/422/485(default RS-232) (M12 A-coded connector)
 4 x USB 2.0 (M12 A-coded connector)

Ethernet
 1 x Intel I210IT Gigabit Ethernet ( M12 X- coded connector )
 Expansion
 2 x Mini PCI-E card
 Storage

1 x CFast slot or mSATA
 1 x SATA interface
2
E3827 1.75GHz processor onboard
