AXIOMTEK GOT5100T-832 User Manual

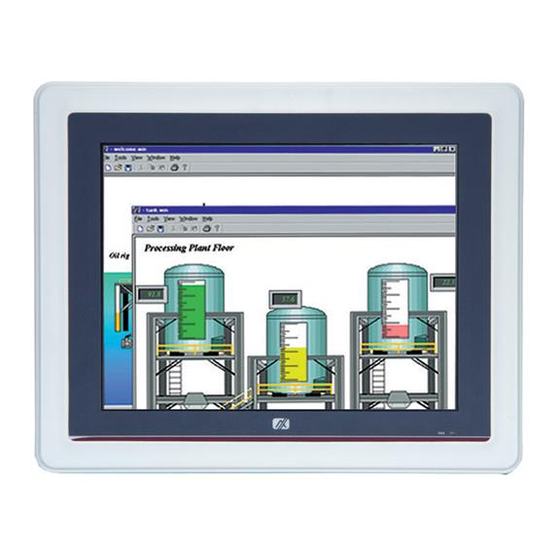

All-in-one 10.4” svga tft fanless touch panel computer with intel atomtm n2600 processor onboard
Hide thumbs Also See for GOT5100T-832:
Table of Contents

Advertisement

Quick Links

Download this manual
GOT5100T-832
All-in-One
10.4" SVGA TFT Fanless Touch Panel Computer with
®
TM
Intel
Atom
N2600 Processor Onboard
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT5100T-832 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT5100T-832

Summary of Contents for AXIOMTEK GOT5100T-832

  • Page 1 GOT5100T-832 All-in-One 10.4” SVGA TFT Fanless Touch Panel Computer with ® Intel Atom N2600 Processor Onboard User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Most electronic components are sensitive to static electrical charge. Disconnect the power cord from the GOT5100T-832 before any installation. Be sure both the system and external devices are turned OFF. A sudden surge of power could ruin sensitive components that the GOT5100T-832 must be properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..........................ii Safety Precautions ........................iii CHAPTER 1 INTRODUCTION ......................1 General Description ....................1 Specifications ......................2 1.2.1 Main CPU Board ......................2 1.2.2 I/O System ......................... 2 1.2.3 System Specification ....................3 Dimensions ........................ 4 I/O Outlets ........................

  • Page 5: Chapter 1 Introduction

    Dimensions  I/O Outlets  Package List General Description The GOT5100T-832 is a fan-less and compact-size touch panel computer, equipped with a 10.4” ○ TFT LCD display and low power consumption Intel Atom N2600 1.6GHz processor with FSB ® 533MHz. The GOT5100T-832 supports Windows 7 32-bit,, WES 7.

  • Page 6: Specifications

    1 x PCIe mini card(optional)  Storage  One 2.5” SATA HDD One slot for CompactFlash™ (optional)   Power connector  GOT5100T-832 : DC power 10~30VDC (phoenix type)  GOT5100T-832-J : AC 100~240V to DC 12V adapter(Screw type) Introduction...

  • Page 7: System Specification

    GOT-5100T User’s Manual 1.2.3 System Specification  10.4” TFT LCD  Heat Dispensing Design  Disk drive housing:  One 2.5” SATA drive  Net Weight  1.8 Kgs (3.96 lb)  Dimension (Main Body Size)  292.5x 45.8 x 235.8mm ...

  • Page 8: Dimensions

    GOT5100T-832 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT5100T-832. Introduction...
  • Page 9 GOT-5100T User’s Manual Introduction...

  • Page 10: I/O Outlets

    GOT5100T-832 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the GOT5100T-832. Introduction...

  • Page 11: Packing List

    Panel Mount Kit x 6  Driver CD x1  Wall-Mount Kit x1  HDD Mylar x 1  Power Adapter & power cord (for GOT5100T-832-J) If you can not find the package or any items are missing, please contact AXIOMTEK distributors immediately. Introduction...
  • Page 12 GOT5100T-832 User’s Manual MEMO: Introduction...

  • Page 13: Chapter 2 Hardware Installation

    GOT5100T-832 User’s Manual CHAPTER 2 HARDWARE INSTALLATION The GOT5100T-832 provides rich I/O ports and flexible expansions for you to meet different demand. The chapter will show you how to install the hardware. It includes: ™  CompactFlash Card  Serial Port ...

  • Page 14: Serial Ports Interface

    GOT5100T-832 User’s Manual Serial Ports Interface The GOT5100T-832 has two onboard serial ports, COM1 (RS-232/ 422/ 485) and COM2 (RS- 232). The following table shows you the pin assignments of this connector: The following table shows you the pin assignments of this connector:...

  • Page 15: Com1&Com2 Connector

    GOT5100T-832 User’s Manual 2.2.1 COM1&COM2 Connector The COM1 and COM2 is a standard DB-9 connector. This connector is equipped with +5V level power capability on DCD and +12V level on RI by setting JP10 and JP11. The pin assignment of RS-232/RS-422/RS-485 is listed on the following table.

  • Page 16: Ethernet

    GOT5100T-832 User’s Manual Ethernet The GOT5100T-832 is equipped with two high performance Plug and Play Ethernet interfaces, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...

  • Page 17: Mountings - Panel/Wall/Desktop/Vesa

    There are several mounting ways for the GOT5100T-832, Panel, Wall, Desktop and VESA mountings. 2.4.1 Panel Mounting The GOT5100T-832 is designed for panel mount application. A set of standard mounting kit are bundled with the system package that you can use it to mount the GOT5100T-832. Hardware Installation...

  • Page 18: Wall-Mounting

    GOT5100T-832 User’s Manual 2.4.2 Wall-Mounting The GOT5100T-832 is designed for Wall mounting application. Please refer to the following steps: Find out the screws as marked on the back side of chassis. 2.4.3 Desktop-Mounting The GOT5100T-832 is designed for desktop mounting application. Please refer to the following...
  • Page 19 GOT5100T-832 User’s Manual Step 2 Assemble the desktop stand to the chassis, and fix the screws. Hardware Installation...

  • Page 20: Vesa-Arm Mounting

    GOT5100T-832 User’s Manual 2.4.4 VESA-ARM Mounting Step 1 Find out the screws as marked on the back side of chassis. Step 2 Assemble the VESA-ARM to the back side of the chassis, and fix the screws. Hardware Installation...
  • Page 21 GOT5100T-832 User’s Manual Step 3 VESA mounting Installation completed. Caution：Use recommended/suitable mounting apparatus to avoid risk of injury. Hardware Installation...

  • Page 22: Hdd Installation

    GOT5100T-832 User’s Manual HDD Installation The GOT5100T-832 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5” SATA HDD. Please follow the steps: 1. Unscrew six screws to remove the rear chassis. 2. Unscrew 4 screws from the HDD bracket, and take out HDD bracket.
  • Page 23 GOT5100T-832 User’s Manual 3. Screw the 2.5” HDD, together with the HDD Mylar, to the HDD bracket. 4. Fix the HDD bracket into the system, and plug the data and power cable to HDD. Installation complete. Hardware Installation...

  • Page 24: Dram Installation

    GOT5100T-832 User’s Manual DRAM Installation The GOT5100T-832 provides one 204-pin DDR3 800MHz SO-DIMM socket that support system memory up to 2GB. Please follow steps below to install the memory modules: 1. Open the back cover and find mainboard (SBC87832). 2. Push down latches on each side of the DIMM socket.
  • Page 25 GOT5100T-832 User’s Manual 3. Install the memory module into the socket and push it firmly down until it is fully seated. The socket latches are levered upwards and clipped on to the edges of the DIMM. Hardware Installation...

  • Page 26: Wireless Lan Card Installation

    GOT5100T-832 User’s Manual Wireless LAN Card Installation The GOT5100T-832 provides one Mini card slot for user to install one wireless LAN card. When installing the wireless LAN card, refer to the following instructions and illustration: 1. Open the back cover and find mainboard (SBC87832).
  • Page 27 GOT5100T-832 User’s Manual NOTE: Please have the extented bracket when using half-size mini card. Hardware Installation...
  • Page 28 GOT5100T-832 User’s Manual MEMO: Hardware Installation...

  • Page 29: Chapter 3 Ami Bios Setup Utility

    GOT5100T-832 User’s Manual CHAPTER 3 AMI BIOS SETUP UTILITY This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS8 BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del> key immediately.

  • Page 30: Navigation Keys

    GOT5100T-832 User’s Manual Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, <Arrow> keys, and so on.

  • Page 31: Main Menu

    GOT5100T-832 User’s Manual Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section.

  • Page 32: Advanced Menu

    GOT5100T-832 User’s Manual Advanced Menu  Launch PXE OpROM Use this item to enable or disable the boot ROM function of the onboard LAN chip when the system boots up.  Launch Storage OpROM Enable or disable boot option for legacy mass storage devices with Option ROM.
  • Page 33 GOT5100T-832 User’s Manual  ACPI Settings You can use this screen to select options for the ACPI Settings, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 34 GOT5100T-832 User’s Manual  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option.  Hyper Threading Technology Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 35 GOT5100T-832 User’s Manual  IDE Configuration  SATA Controller(s) The optional settings are: [Disabled]; [Enabled].  Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
  • Page 36 GOT5100T-832 User’s Manual  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 37 GOT5100T-832 User’s Manual  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen ...
  • Page 38 GOT5100T-832 User’s Manual  PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...

  • Page 39: Chipset Menu

    GOT5100T-832 User’s Manual Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus:  Host Bridge Host Bridge For items marked with “”, please press <Enter> for more options.
  • Page 40 GOT5100T-832 User’s Manual  Memory Frequency and Timing This item is for memory frequency and timing settings. Press <Enter> to go to the sub menu. AMI BIOS Setup Utility...

  • Page 41: Boot Menu

    GOT5100T-832 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system.  Boot Settings Configuration  Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. ...

  • Page 42: Security Menu

    GOT5100T-832 User’s Manual Security Menu The Security menu allows users to change the security settings for the system.  Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 43: Exit Menu

    GOT5100T-832 User’s Manual Exit Menu The Save & Exit menu allows users to load system configuration with optimal or failsafe default values.  Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 44 GOT5100T-832 User’s Manual  Save Changes When you have completed the system configuration changes, select this option to save changes. Select Save Changes from the Save & Exit menu and press <Enter>. Select yes to save changes.  Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration.

  • Page 45: Chapter 4 Drivers Installation

    CHAPTER 4 DRIVERS INSTALLATION System GOT5100T-832 supports Windows7 32-bit. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Drivers”. Select all files and follow the installing procedure.

  • Page 46: Touch Screen

    4.2.2 Driver Installation- Windows 7 The GOT5100T-832 provides a touch screen driver that users can install it under the operating system Windows 7. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.
  • Page 47 GOT5100T-832 User’s Manual Click Start menu and select “PenMount Utilities”; and then, a “PenMount Control Panel” pops out. Select the “Standard Calibrate” tab. Drivers Installation...
  • Page 48 GOT5100T-832 User’s Manual Calibration: To adjust the display with touch panel, click “Calibration” and follow the calibrate point to do calibration; there are five points on screen for calibration. Press OK. Drivers Installation...

  • Page 49: Embedded O.s

    GOT5100T-832 User’s Manual Embedded O.S. The GOT-5100T provides the WES 7. The O.S. is supported devices which are listed below. 4.3.1 WES 7 Here are supported onboard devices: Onboard Multi I/O  SATA HDD   PS2 Keyboard and mouse ...
  • Page 50 GOT5100T-832 User’s Manual MEMO: Drivers Installation...
