1.2

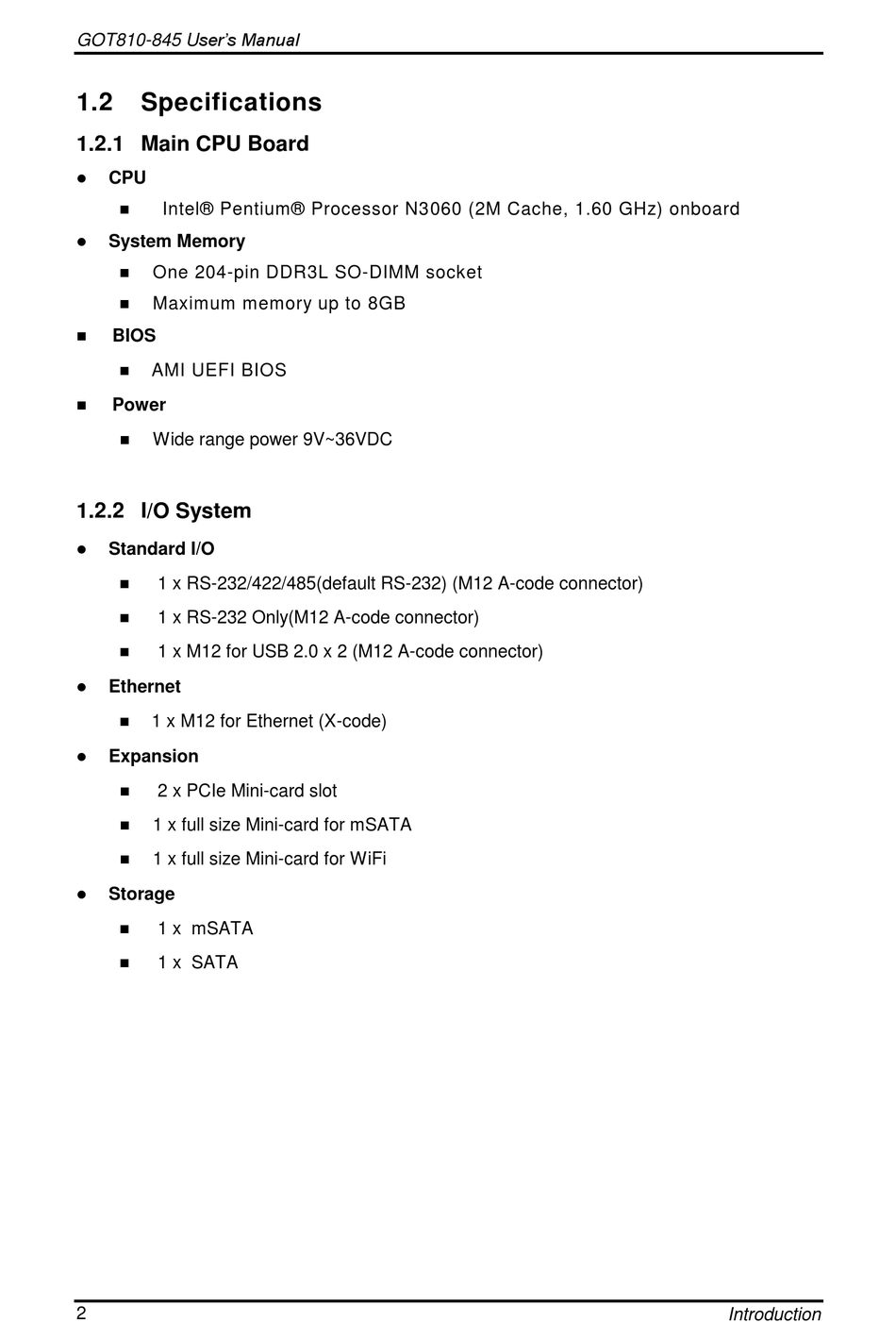

Specifications

1.2.1 Main CPU Board

 CPU
 Intel® Pentium® Processor N3060 (2M Cache, 1.60 GHz) onboard
 System Memory
 One 204-pin DDR3L SO-DIMM socket
 Maximum memory up to 8GB
 BIOS
 AMI UEFI BIOS

Power
 Wide range power 9V~36VDC

1.2.2 I/O System

 Standard I/O

1 x RS-232/422/485(default RS-232) (M12 A-code connector)
 1 x RS-232 Only(M12 A-code connector)
 1 x M12 for USB 2.0 x 2 (M12 A-code connector)
 Ethernet
 1 x M12 for Ethernet (X-code)
 Expansion
 2 x PCIe Mini-card slot
 1 x full size Mini-card for mSATA
 1 x full size Mini-card for WiFi
 Storage

1 x mSATA
 1 x SATA
