GOT821A-TGL-WCD User's Manual
1.2

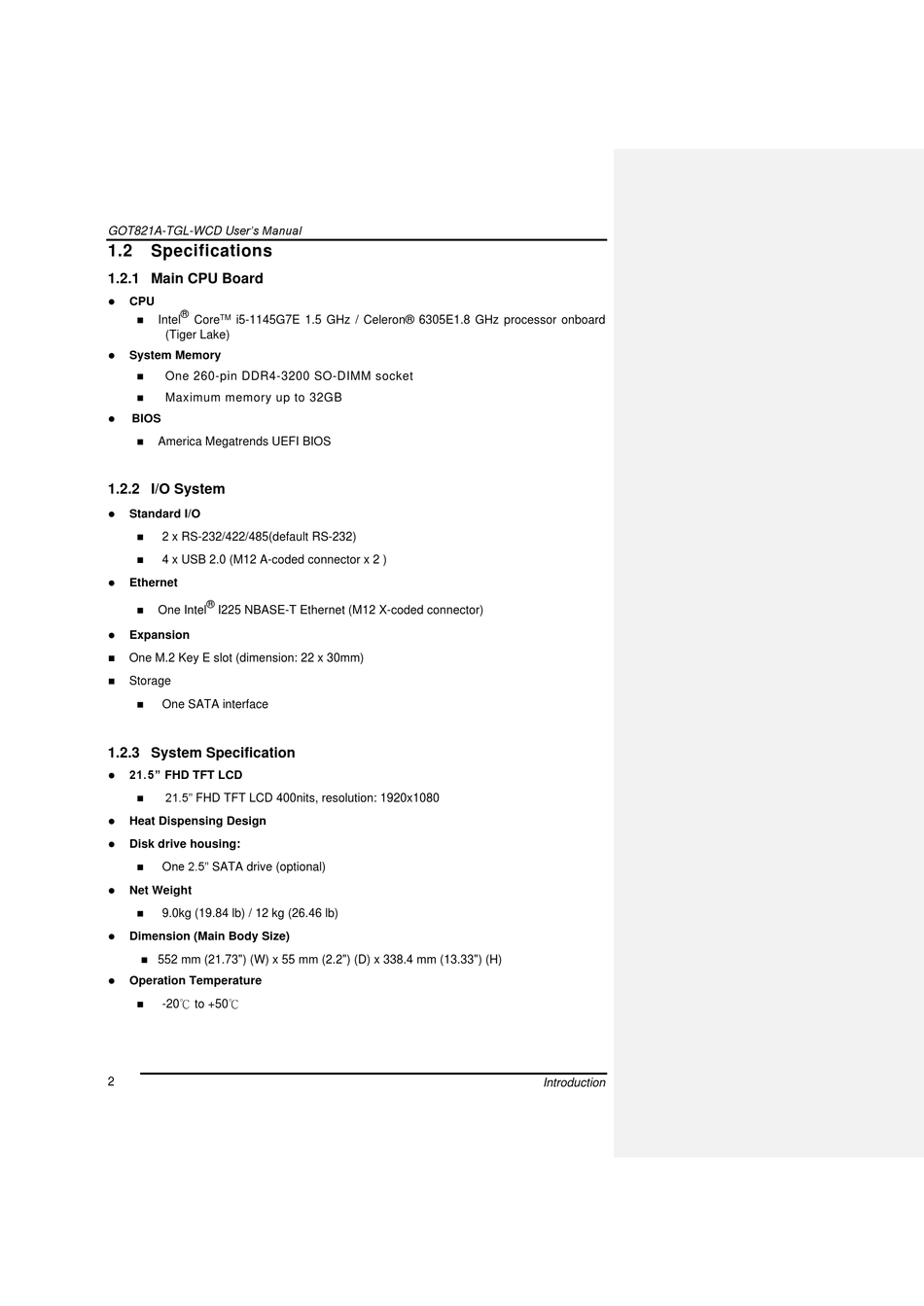

Specifications

1.2.1 Main CPU Board

⚫ CPU
®
TM
◼ Intel Core i5-1145G7E 1.5 GHz / Celeron® 6305E1.8 GHz processor onboard
(Tiger Lake)
⚫ System Memory
◼ One 260-pin DDR4-3200 SO-DIMM socket
◼ Maximum memory up to 32GB
⚫ BIOS
◼ America Megatrends UEFI BIOS

1.2.2 I/O System

⚫ Standard I/O
◼ 2 x RS-232/422/485(default RS-232)
◼ 4 x USB 2.0 (M12 A-coded connector x 2 )
⚫ Ethernet
®
◼
One Intel I225 NBASE-T Ethernet (M12 X-coded connector)
⚫ Expansion
◼ One M.2 Key E slot (dimension: 22 x 30mm)
◼ Storage
◼ One SATA interface

1.2.3 System Specification

21.5" FHD TFT LCD
⚫
21.5" FHD TFT LCD 400nits, resolution: 1920x1080
◼
⚫ Heat Dispensing Design
⚫ Disk drive housing:
One 2.5" SATA drive (optional)
◼
⚫ Net Weight
◼ 9.0kg (19.84 lb) / 12 kg (26.46 lb)
⚫ Dimension (Main Body Size)
◼ 552 mm (21.73") (W) x 55 mm (2.2") (D) x 338.4 mm (13.33") (H)
⚫ Operation Temperature
◼ -20℃ to +50℃
2
Introduction
