Santak ARRAY User Manual page 51

2. Installation
2.4.5 Normal connection of communication of XP1K(S)/2K(S)/3(S)

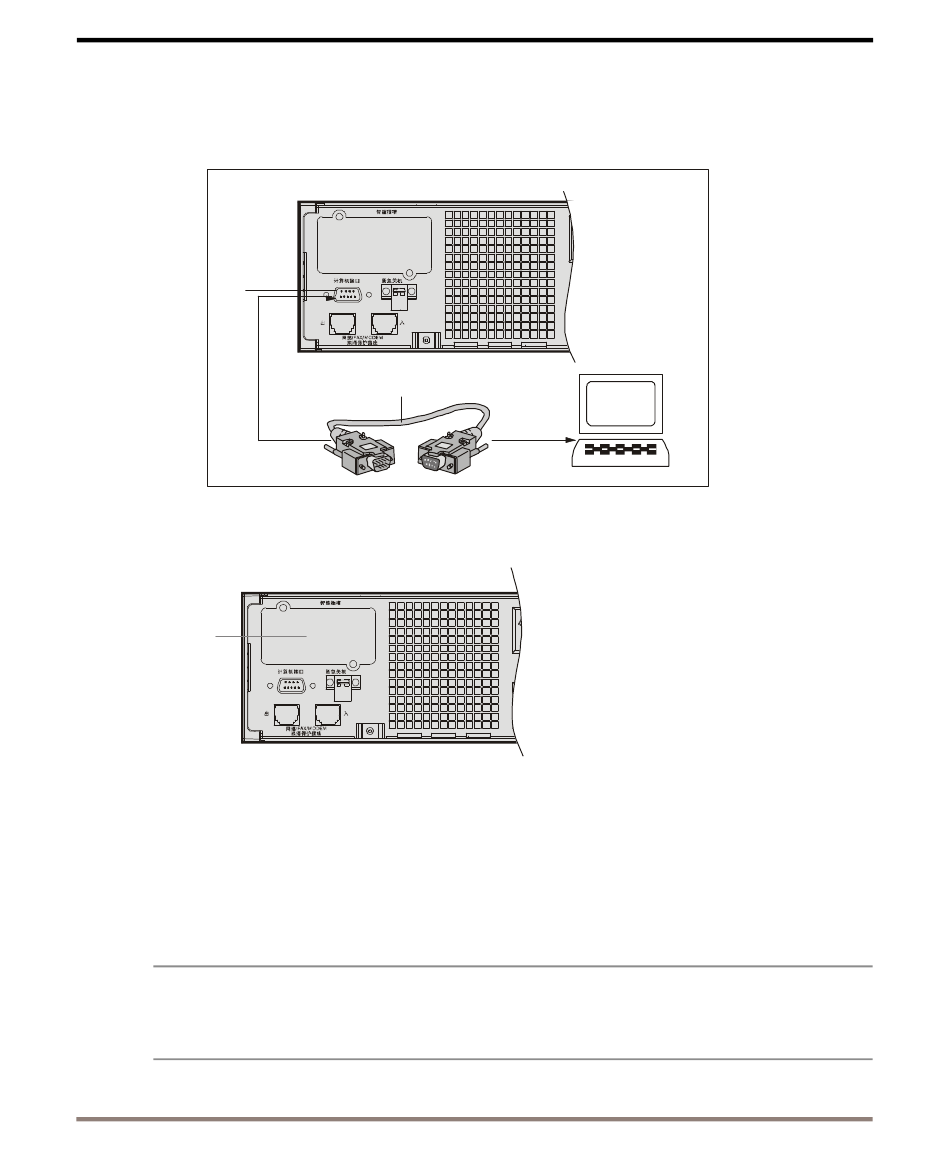

RS232 interface (1) is used to connect UPS with monitor device through communi-
cation cable. Santak's visual Winpower monitor software can be used.
1
2.4.6 XP1K(S)/2K(S)/3K(S) alternative connection of communication
2
Intelligent slot(2) accommodates AS400 card, USB card and Winpower card.
a.
AS400 card: You can utilize AS400's monitor function to manage the power supply
directly.
WebPower card: It enables you monitor the UPS remotely through Internet.
b.
c.
USB card: It enables you use equipment without RS232 interface to monitor the UPS.
※ Note:
1. Remove the cover board of the intelligent slot before any card is installed.
2. Intelligent slot accommodates only one card at once.
RS232 Communication cable
RS232通 讯 电 缆
45
