2. Installation
2.4.4 XP2K(S)/3K(S) input, output connection
4
8
6
电 击危 险 电 击 危险
请 勿取 下 请 勿 取下
11 12
5
O
电 击 危险
请 勿 取下
9 10
44

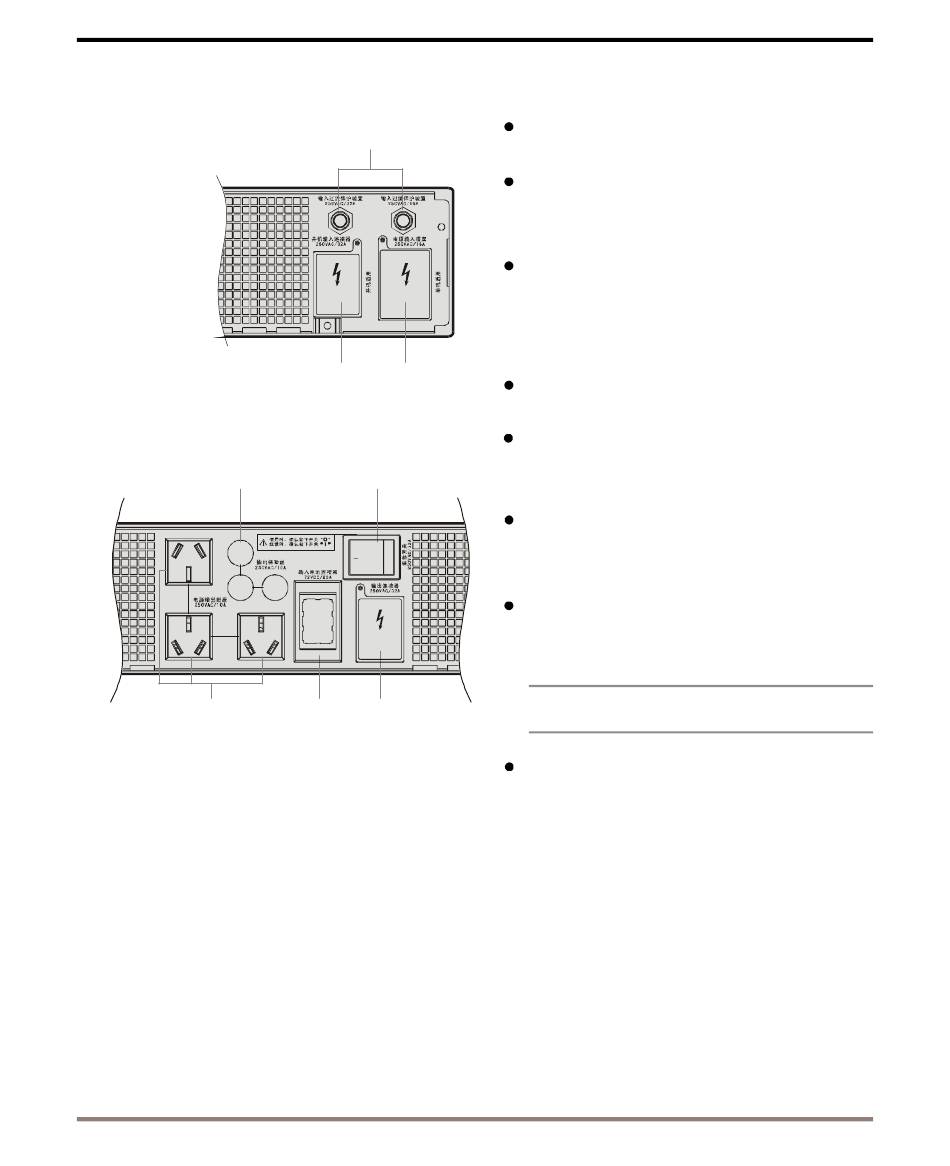

Input receptacle (12) is used to connect UPS
with AC source through power wire.
Input connector for paralleling (11) is used to
connect UPS with AC source through power wire
of paralleling.
Input over current protection device (6) will
pop out when the input current is large. Push
it down to reset the device. Please dial 800
service line if fail to reset the device.
Output receptacles(8) are used to connect UPS
and load through output wire.
Output-fuse (4)will be cut when output current
is huge. Please dial 800 service line and ask ser-
vice personnel to change it.
Battery connector(9) is is used to connect 'S'
type UPS and battery array through battery
wire.
Output connector (10) used to connect UPS and
load when the output current is big.Uncover the
lid when this connector is used.
Note: Install breakers in parallel situation.
Make sure the repairing switch (5) is on
"O"status when start the UPS. Service
personnel operate it when the UPS is under
repair.
