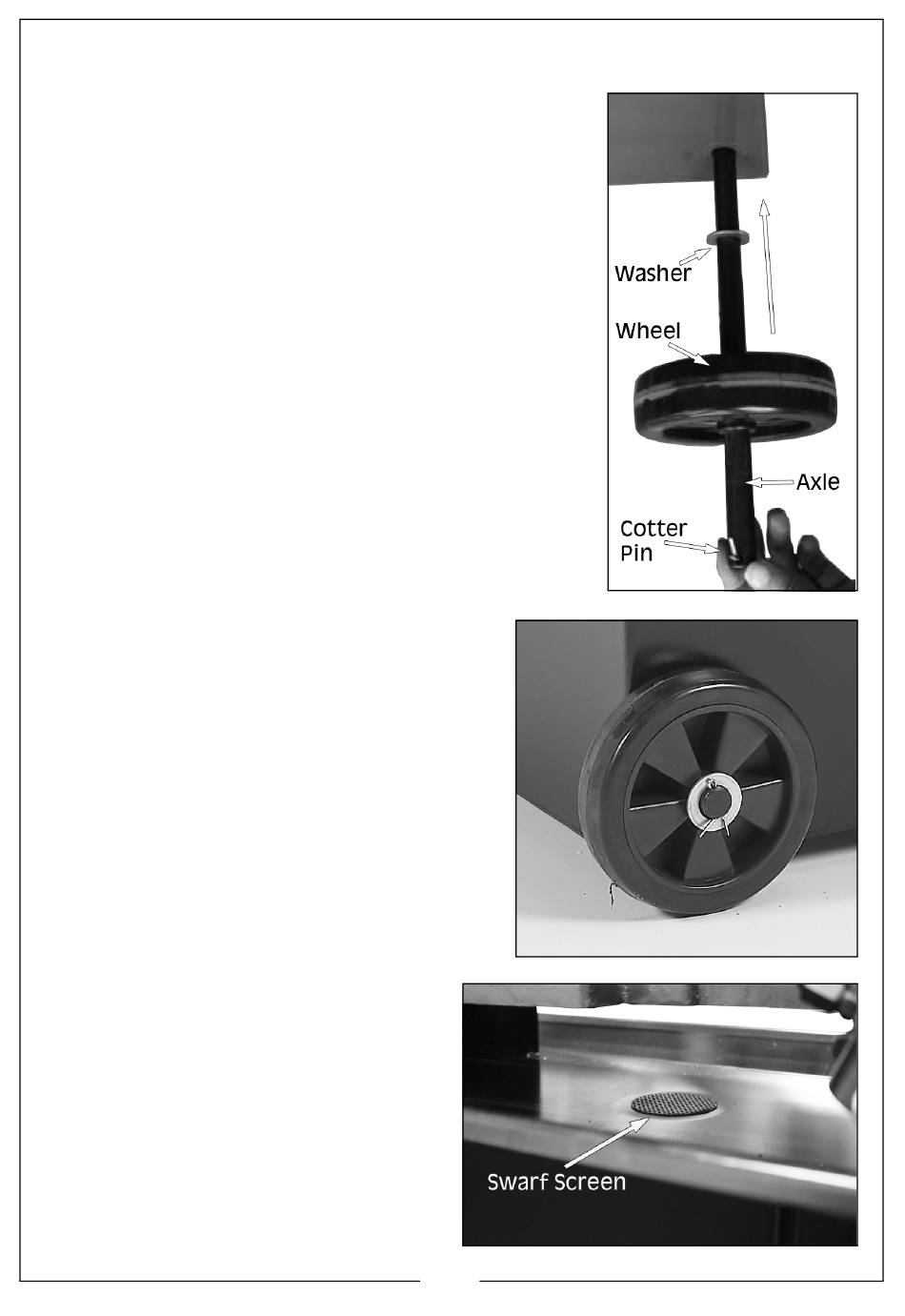

INSTALLING THE WHEELS

COMPONENTS & HARDWARE NEEDED

• 4 x Wheels

• 2 x Axle

• 4 x Cotter Pins (3 x 30mm)

• 4 x Flat Washers (5/8")

1. Slide axle through the holes in the bottom of the

cabinet.

2. Slide the flat washers onto the axle,

followed by the wheels. Secure the

wheels with the cotter pins as shown.

INSTALLING THE SWARF SCREEN

1. To prevent swarf getting into the

blade lubricant and pump, place

the swarf screen over the

drainage hole in the centre of the

drip tray as shown.

Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com
