Installing the wire cutter

Installing the
NOTE!
wire cutter on
the cleaning Wire cutters for conventional applications (one wire electrode) and for twin ap-
plications (two wire electrodes) are installed in the same way - as described be-
device
low.
NOTE!
The wire cutter cannot be supplied with compressed air from the cleaning
device.
The wire cutter must be supplied with compressed air from a separate supply
line.
Maximum wire For conventional applications (one wire electrode), wire electrodes with a diamet-
diameter
er of up to 1.6 mm (0.063 in.) can be cut by the respective wire cutter.
For twin applications (two wire electrodes), two wire electrodes with diameters of
up to 1.6 mm (0.063 in.) can be cut simultaneously by the respective wire cutter.
How the mech-
NOTE!
anically con-
trolled wire cut- Wire cutters for twin applications may differ slightly in appearance from the
ter works one shown in the following figure.
Wire cutters for conventional applications (one wire electrode) and for twin ap-
plications (two wire electrodes) work in the same way - as described below.
44
(3)
(2)
(1)
2 x

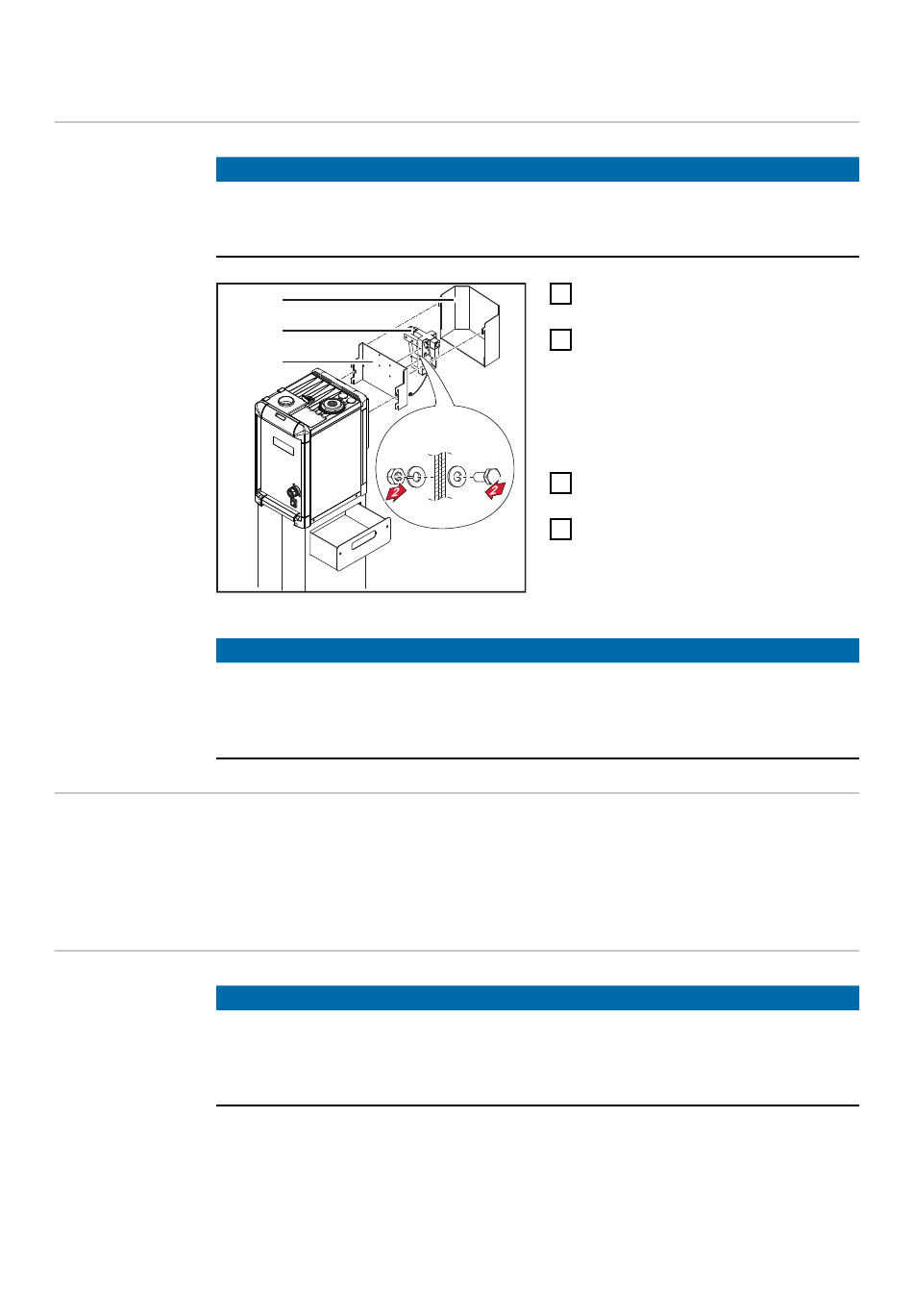

Attach the wire cutter holder (1) to
1
the cleaning device
Fix the wire cutter (2) to the holder
2
(1) using the two screws, two wash-
ers, two lock washers and two nuts
as shown. The installer is respons-
ible for selecting the correct
screws, washers, lock washers and
nuts
Attach the protective cover (3) to
3
the holder (1)
If using an electrically controlled
4
wire cutter: Plug the wire cutter
connecting cable into the wire cut-
ter connection on the cleaning
device
