Controls, connections and mechanical compon-
ents

General

All functions of the cleaning unit are activated by the robot control. For adjust-
ment, the cleaning operation can be manually triggered on the control panel.
NOTE!
The individual illustrations may differ slightly from your device.
However, the functioning of the controls and the connections is identical.

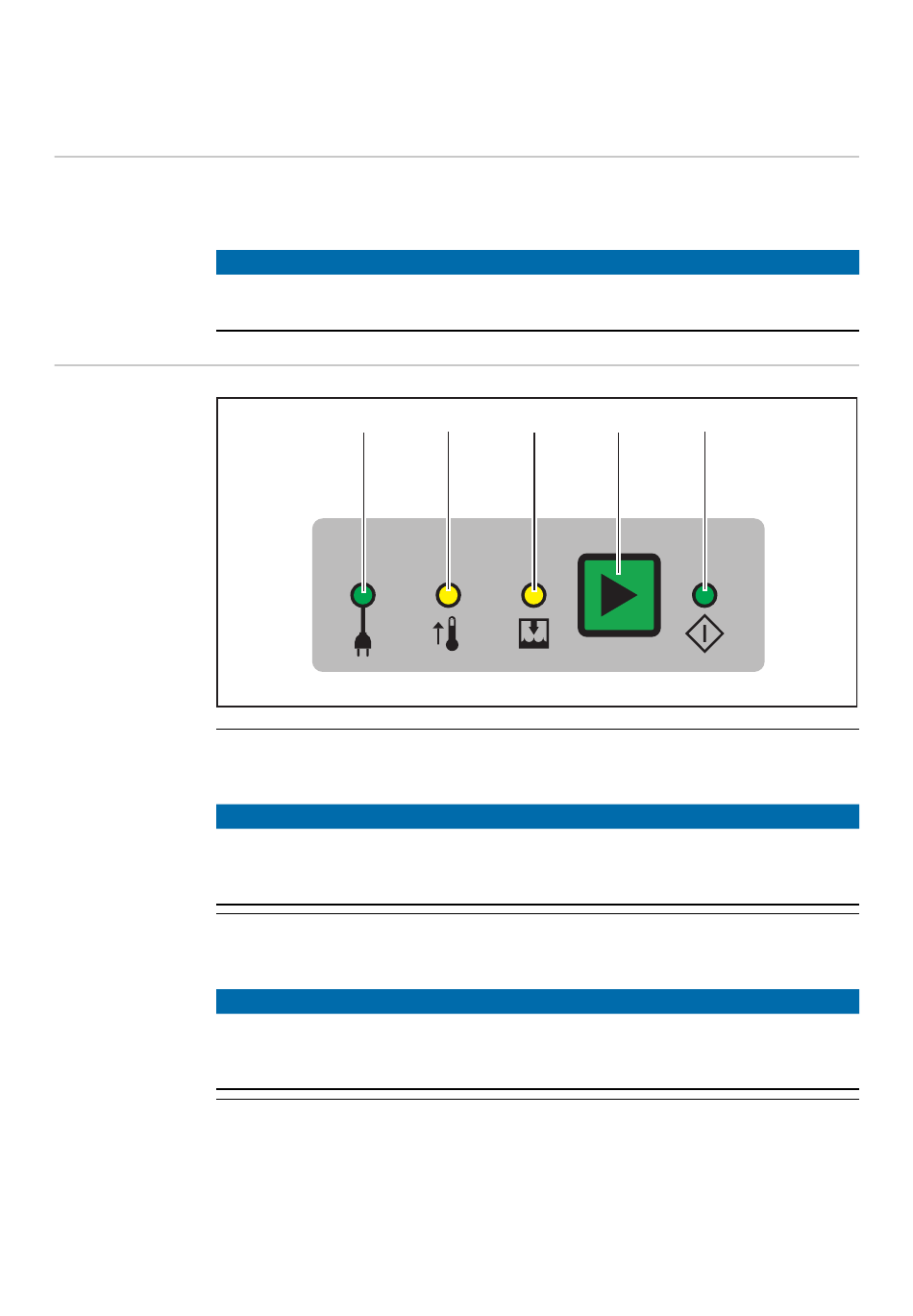

Control panel

(1)
NOTE!
If the capacitors in the device are charged, they will discharge automatically as
soon as the device is unplugged from the mains. Discharge time is approx. 1
second.
(2)
NOTE!
One more cleaning operation can be carried out after this indicator lights up.
Only once the device has cooled back down to the operating temperature will
the device recharge in preparation for the next cleaning operation.
(3)
30
(2)
(1)
Mains voltage indicator
lights up when the device is powered by mains voltage
Overtemperature indicator
lights up when the device overheats
Fill level indicator
will come on
- if the fill level in the dipping bowl drops below minimum
- if the dipping bowl is not used, hence there is no parting agent in the
dipping bowl
