Installation; Wiring Diagram With T-Harness (Thton6) - Directed DIRECTECHS DS3+ Installation Manual

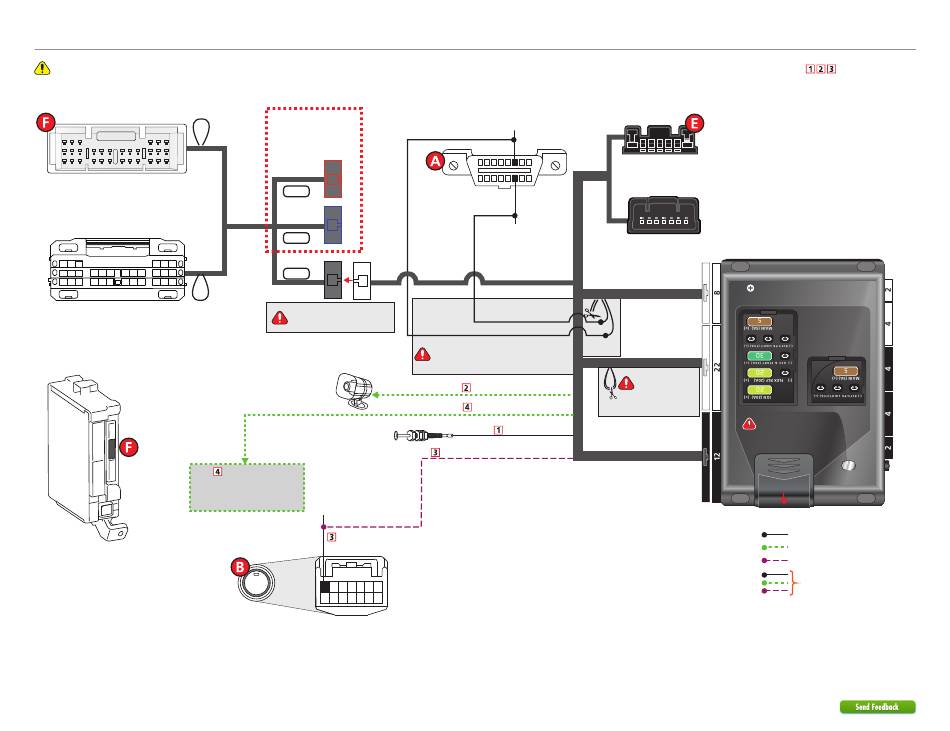

Wiring diagram with T-Harness (THTON6)
Refer to "Pre-installation and application warnings" for important information, such as the description of each special note referenced in the diagram (
Body ECU Connector
(middle conn. left side
of steering column)
Main Body
ECU
Optional starter disable
connection section for relay
and connection details.
6 933.TL2 4.12.193.2 2015 Toyota Sienna (Smart Key)
© 2021-02-19 Directed. All rights reserved.
NOT USED
*
Connectors color may
HS CAN High: Red or Violet, pin 6 HS CAN High: Red or Violet, pin 6
differ depending on
the T-Harness revision.
*
TL8
*
TL6
*
TL2
CONNECT the white 12-pin
connector to the 12-pin
connector labeled TL2.
Siren
Hood Pin
Refer to the
(-) Push-To-Start:
Blue or Lt. Green, pin 7
Black
ENGINE
7
START
connector 6 5 4 1
3 2
STOP
11 10
14 13 12 9 8
Engine Start Stop Switch
(black conn)
Diagnostic Connector OBDII
(connector side view)
1 8
9 16
HS CAN Low: White
or Red, pin 14
8-pin White Connector
HS CAN Low: Tan
HS CAN High: Tan/Black
Cut the Tan & Tan/Black loops labelled
CAN 1 and extend the wires coming
from the module side and connect them
22-pin White Connector
to the CAN wires on the OBDII.
(+) Siren Output: Brown/Red
(-) GWA Output: Blue/White
(-) Hood Input: Gray
(-) Push-to-Start Output: Lt. Blue/Black
12-pin Black Connector
(optional T-Harness)
Steering Lock
(black 7-pin connector)
A module can also be used for
this installation.
Cut the
Dk.Green/Black
and Dk/Blue/Black
loops labelled
Lock/Unlock.
IMPORTANT:
Position the
fuses correctly!
THTON6
Slide to open
Legend:
).
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
