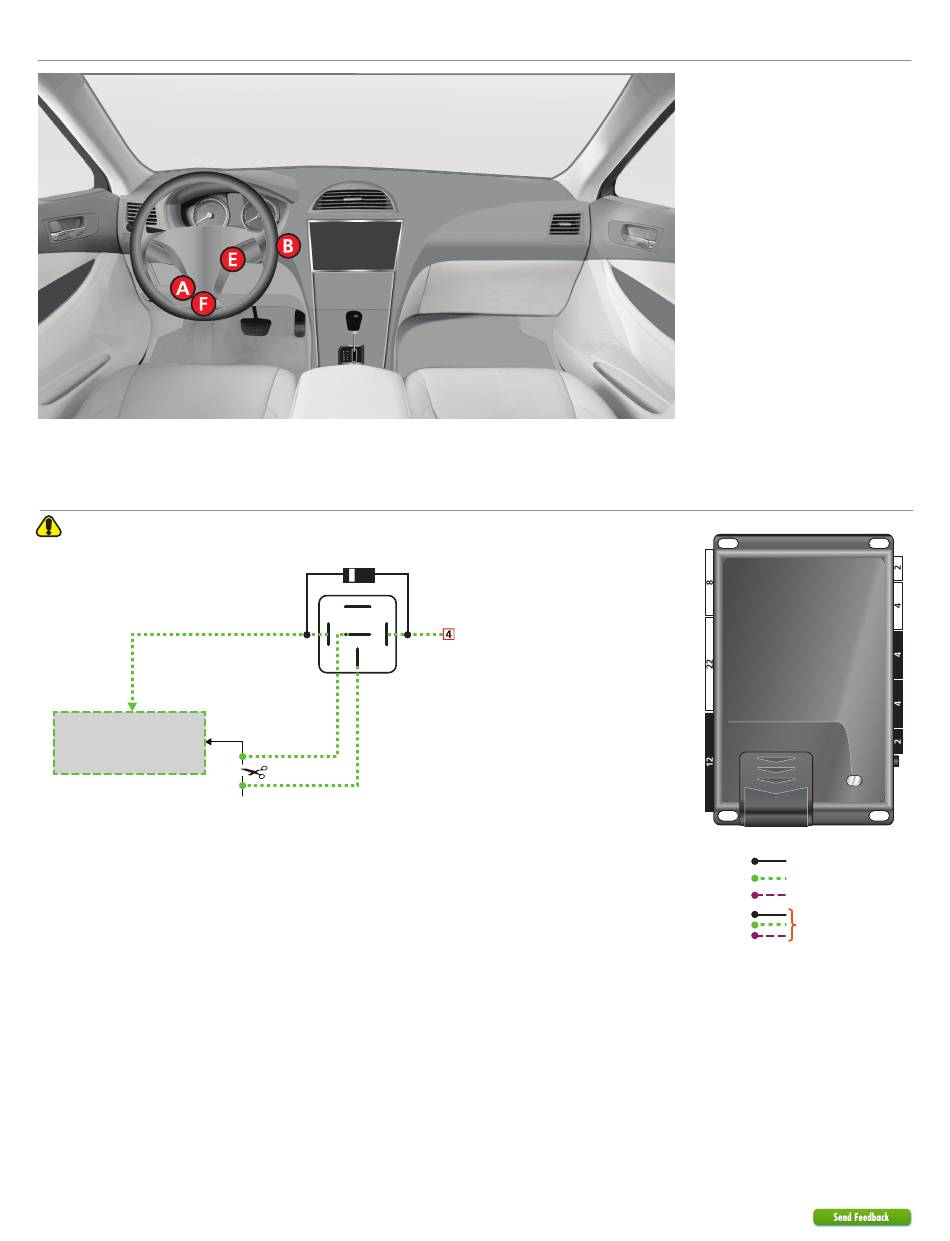

Locating components in the vehicle

Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Refer to the
Vehicle connections
section for wire and
connector details.
8
933.TL2 4.12.193.2 2015 Toyota Sienna (Smart Key)
© 2021-02-19 Directed. All rights reserved.
1A diode [1N4002+ ]
87
(+) Ignition
87a
86 85
30
Starter (conn. side)
Cut
Starter (veh. side)
(-) Ground When Armed (GWA) Output: Blue/White: 2
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
