Manual Transmission

IMPORTANT!
Directed does not approve nor support installations of manual transmission, remote starts on any convertible vehicle
or a vehicle with a removable top, including but not limited to Jeep Wrangler, Honda S2000, Mazda Miata etc...
This system supports manual transmission installations.
Refer to "Directwire" section at www.directechs.com for further information on vehicle-specific wiring connections.

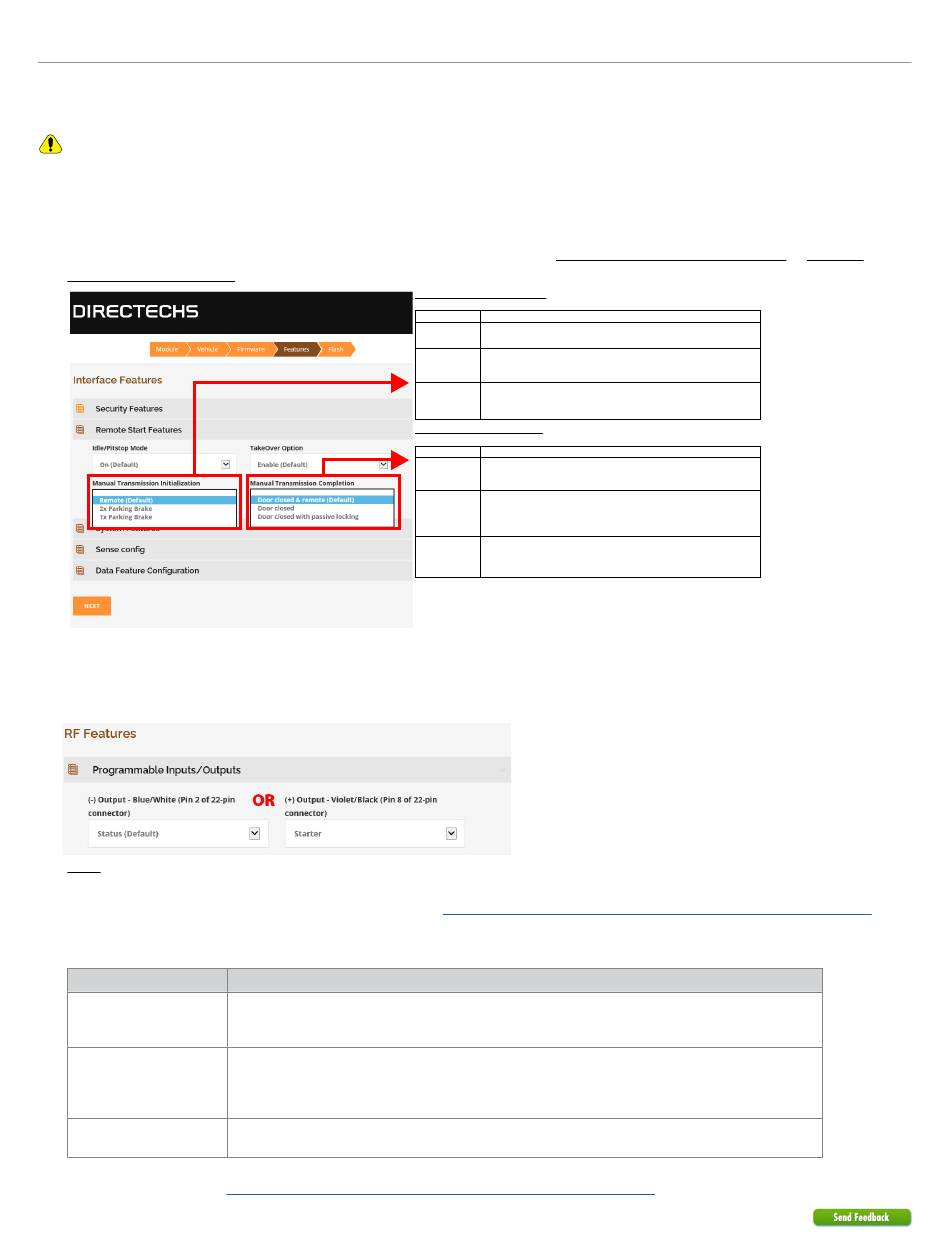

When flashing the module for Manual Transmission on the Directechs website:
1. In the Remote Start Features section, select the desired configurations for Manual Transmission Initialization & Manual
Transmission Completion.
2. In addition, if no Clutch Output is pre-configured in the firmware, an output can be configured when flashing the module
under the Programmable Input/Output section. Use any available positive (+) or negative (-) outputs depending on the
polarity of the clutch switch listed on Directwire, set it to Starter.
3. Note: A Relay may be required depending on your vehicle.
See Tech Tips 10000 - Clutch Bypass for Remote Start -
4. Additional connections may be required if these functions are not supported by the firmware.
Connection
(-) E-Brake Status Input
(Black/White, pin 17)
(-) Door Trigger Input
(Green, pin 20) OR
(+) Door Input (Violet, pin
13)
(AC) Tachometer Input
(Violet/White, pin 22)
See Tech Tips 10001 -
14
933.TL2 4.12.193.2 2015 Toyota Sienna (Smart Key)
© 2021-02-19 Directed. All rights reserved.
Description
Must be connected to a working emergency brake in the vehicle. Although most vehicles have simple
(-) trigger emergency brake circuits note some vehicles do not and may require unique integration
methodologies.
Must be connected to a working door trigger in the vehicle, which monitors all doors. The unit must monitor
the door pins to allow the Ready Mode process to be enabled.
Note: Some vehicles may require unique integration methodologies for this circuit. For more information, refer
to www.directechs.com.
Must be connected to a working tachometer signal in the vehicle (fuel injector, ignition coil, true tach, etc.)
and learned successfully to the DS4+.
https://directechs.blob.core.windows.net/techtips/10001.pdf
Manual Transmission Initialization
Sets how the manual transmission sequence is initialized
Feature visible to Installer
Remote (Default)
With foot on brake, set e-brake, remove foot brake, press ANY button on Directed
remote. Ready mode is activated. Parking lights will flash 5 times confirming.
2x Parking Brake
With foot on brake, setting the parking brake ON, OFF, ON within 10 seconds
then removing foot brake will initialize the manual transmission ready mode.
Parking lights will flash 5 times confirming.
1x Parking Brake
With foot on brake, setting the parking brake ON then removing foot brake will
initialize the manual transmission ready mode. Parking lights will flash 5 times
confirming.
Manual Transmission Completion
Sets how the manual transmission sequence is ended.
Feature visible to Installer
Door closed &
To complete the manual ready mode sequence and shut down the remote start,
Remote (Default)
turn off the ignition (engine stays running), exit the vehicle with your keys, shut all
doors and press lock on the Directed remote.
Door closed with
To complete the manual ready mode sequence and shut down the remote start,
passive locking
turn off the ignition (engine stays running), exit the vehicle with your keys, 8
seconds after the last door is closed, the remote starter will shut down, the door
will automatically lock and the system will arm at the same time.
Door closed
To complete the manual ready mode sequence and shut down the remote start,
turn off the ignition (engine stays running), exit the vehicle with your keys, 8
seconds after the last door is closed, the remote starter will shut down. Doors will
stay unlocked.
Note 1: For PTS vehicle specific instructions, please see the bottom of the "Vehicle Specific Install
Guide" for manual transmission sequence procedures.
Note 2: The trunk input trigger is considered a "door" for manual ready mode. If trunk or any other
door is opened, manual transmission ready mode will be canceled.
