IR Drivers
Once the IPCP 505 is configured and IR drivers have been uploaded to the unit and
linked to specific IR ports, you can view a list of the uploaded drivers using this page. Click
Configuration (see figure 29,
) and IR Drivers (
) to open the page.
1
2
Click on the name of the driver file (
) to switch to a view of the commands loaded for that
3
driver. Clicking on a port and then a command name makes the IPCP send that command
out its linked IR port to the connected device.

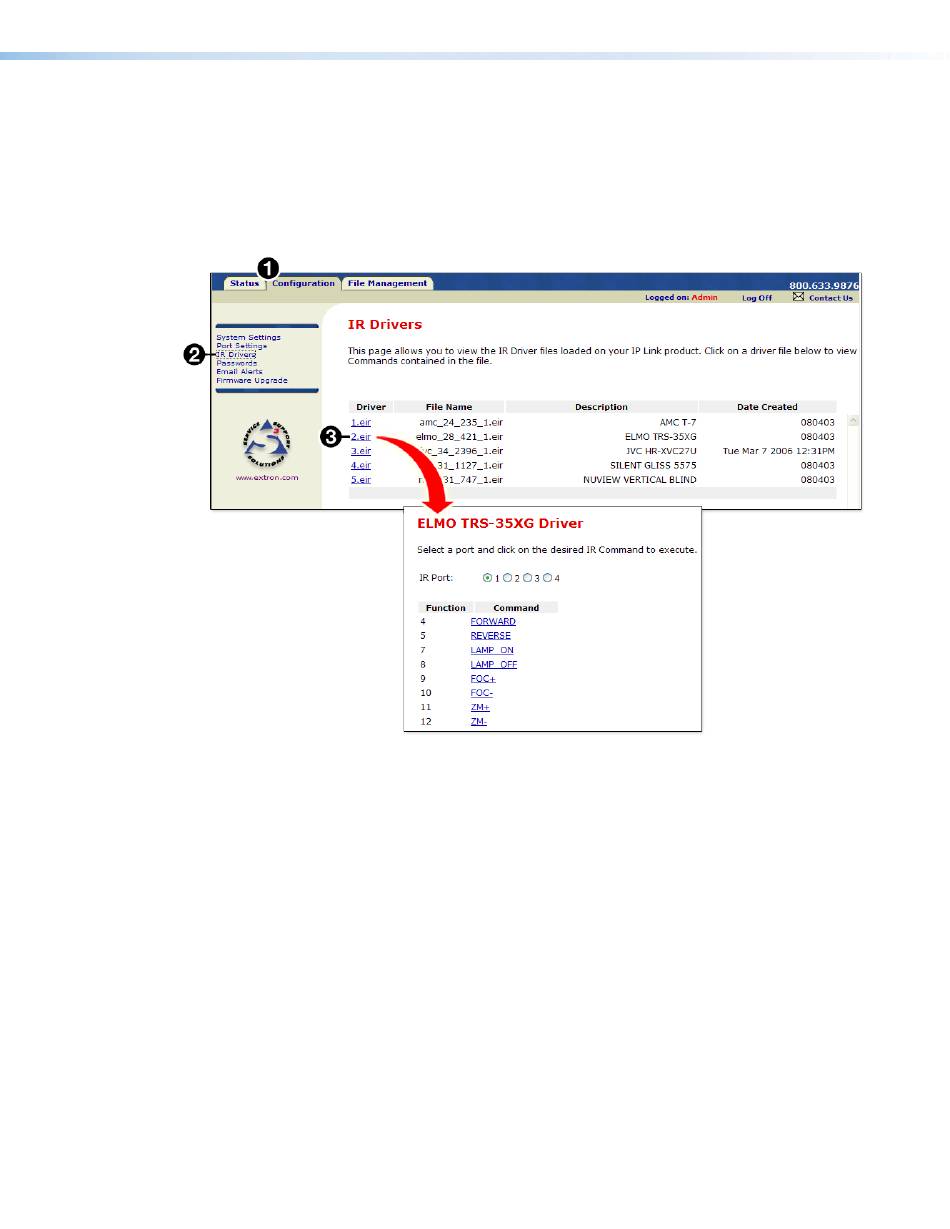

Figure 29.
An IR Drivers Embedded Web Page
IPCP 505 • Software-based Configuration and Control
43
