How the IPCP 505 Works: Components and Interactions

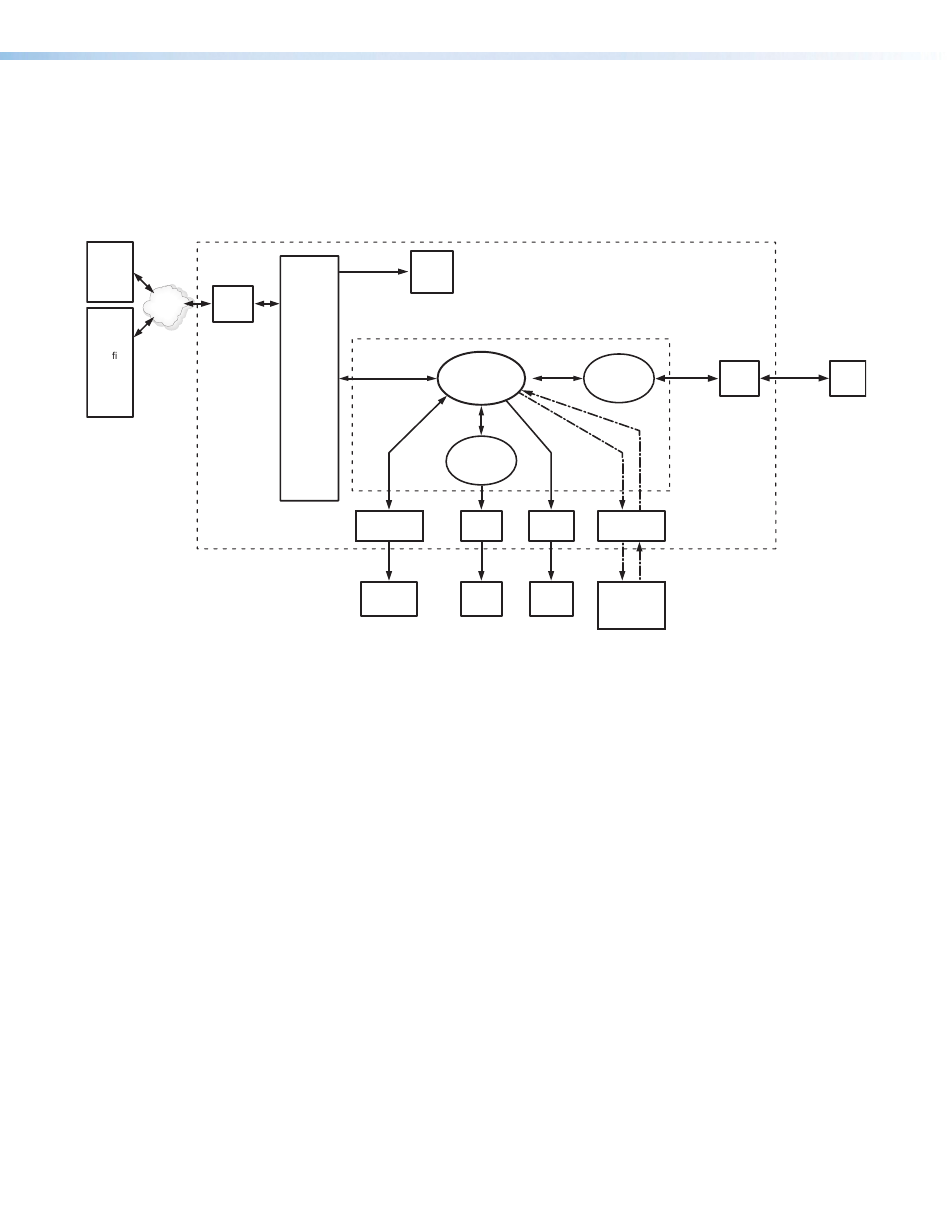

The IPCP 505 requires and uses event files to perform functions. The event files define,
monitor, and govern how an IPCP 505 works. The following diagram is an example of how
the IPCP interacts with accessories, event scripts, drivers, ports, input devices, and output
devices.
Touch-
Link
™
touch-
panel
LAN
TCP/IP
Port
Network
PC
with
Global
Con g-
urator
or
Web
Browser
Figure 5.
The IPCP can be configured completely via Global Configurator software. Once you have
set up how you want it to work (assigned drivers to ports, configured relays and contact
closure input, and set up IP addresses and functions), that information is saved to a project
file that is uploaded into the IPCP.
The configuration information is used to create the "main event" (0.evt) script file that defines
the operation of the IPCP. The main event file also controls and monitors ports and optional
control accessories. Scripts are compiled to generate the main event file to monitor events
and to generate actions (such as issuing commands and triggering relays).
Creating a Control System Using the IPCP with Optional Extron
TouchLink Touchpanels
Not only can the IPCP 505 act as a stand-alone controller that can be accessed via its
internal and GlobalViewer web pages, but it also can act as the centerpiece of a control
system that features Extron TouchLink Touchpanels. The touchpanels provide a convenient,
aesthetically pleasing interface for controlling the IPCP, which, in turn, controls the other
system components.
If you have additional questions or require support for your Extron control system
installation, contact the
Front
Panel
LEDs
IPCP 505
MAIN EVENT
Firmware
(___.evt)
DVD Driver
(___.evt)
Power Output
Port
12 VDC
Powered
Device
How the IPCP 505 Works
Extron S3 Control Systems Support
IPCP 505
Memory
Proj. Driver
(___.evt)
or
IR Relay Flex I/O
Port Port Port
IR
DVD Screen Sensor,
Player Control Switch, LED,
or Relay
Serial 2-way
Com
Proj.
Port
Driver RS-232
Hotline.
