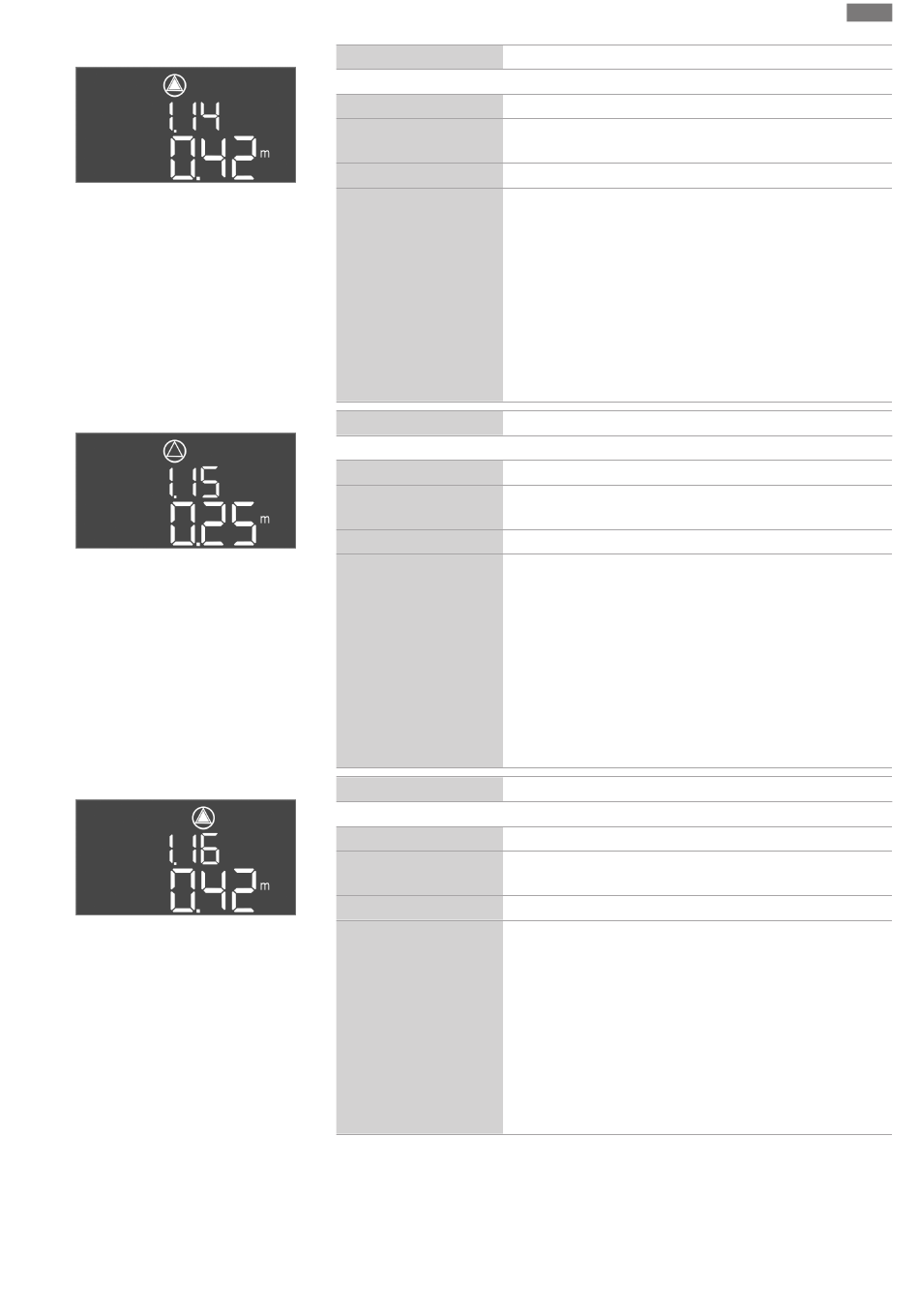

Fig. 61: Menu 1.14
Fig. 62: Menu 1.15
Fig. 63: Menu 1.16
Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09
Menu no. 1.14
Software version: All
Description Level peak-load pump 1 on
Value range
0.06 ... 12.5 m (NOTICE! The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.42 m
Explanation "Drain" operating mode: The value must be 0.03 m higher than
the "Peak-load pump 1 On" level (menu 1.15). The switch-on
level must be greater than/equal to the switch-on level of the
base-load pump (menu 1.12).
"Fill" operating mode: The value must be 0.03 m lower than the
"Peak-load pump 1 Off" level (menu 1.15). The switch-on level
must be lower than/equal to the switch-on level of the base-
load pump (menu 1.12).
NOTICE! The menu item is only visible if the value "Level" or
"Bell" have been set in menu 5.07.
Menu no. 1.15
Software version: All
Description Peak-load pump 1 Off level
Value range 0.06 ... 12.5 m (NOTICE! The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.25 m
Explanation
"Drain" operating mode: The value must be 0.03 m lower than
the "Peak-load pump 1 On" level (menu 1.14). The switch-off
level must be greater than/equal to the switch-on level of the
base-load pump (menu 1.13).
"Fill" operating mode: The value must be 0.03 m higher than
the "Peak-load pump 1 On" level (menu 1.14). The switch-off
level must be lower than/equal to the switch-off level of the
base-load pump (menu 1.13).
NOTICE! The menu item is only visible if the value "Level" or
"Bell" have been set in menu 5.07.
Menu no. 1.16
Software version: All
Description Peak-load pump 2 On level
Value range
0.06 ... 12.5 m (NOTICE! The actual value range is dependent
on the setting in menu 5.09.)
Factory setting 0.42 m
Explanation "Drain" operating mode: The value must be 0.03 m higher than
the "Peak-load pump 2 Off" level (menu 1.17). The switch-on
level must be greater than/equal to the switch-on level of the
peak-load pump (menu 1.14).
"Fill" operating mode: The value must be 0.03 m lower than the
"Peak-load pump 2 Off" level (menu 1.17). The switch-on level
must be lower than/equal to the switch-on level of the peak-
load pump (menu 1.14).
NOTICE! The menu item is only visible if the value "Level" or
"Bell" have been set in menu 5.07.
