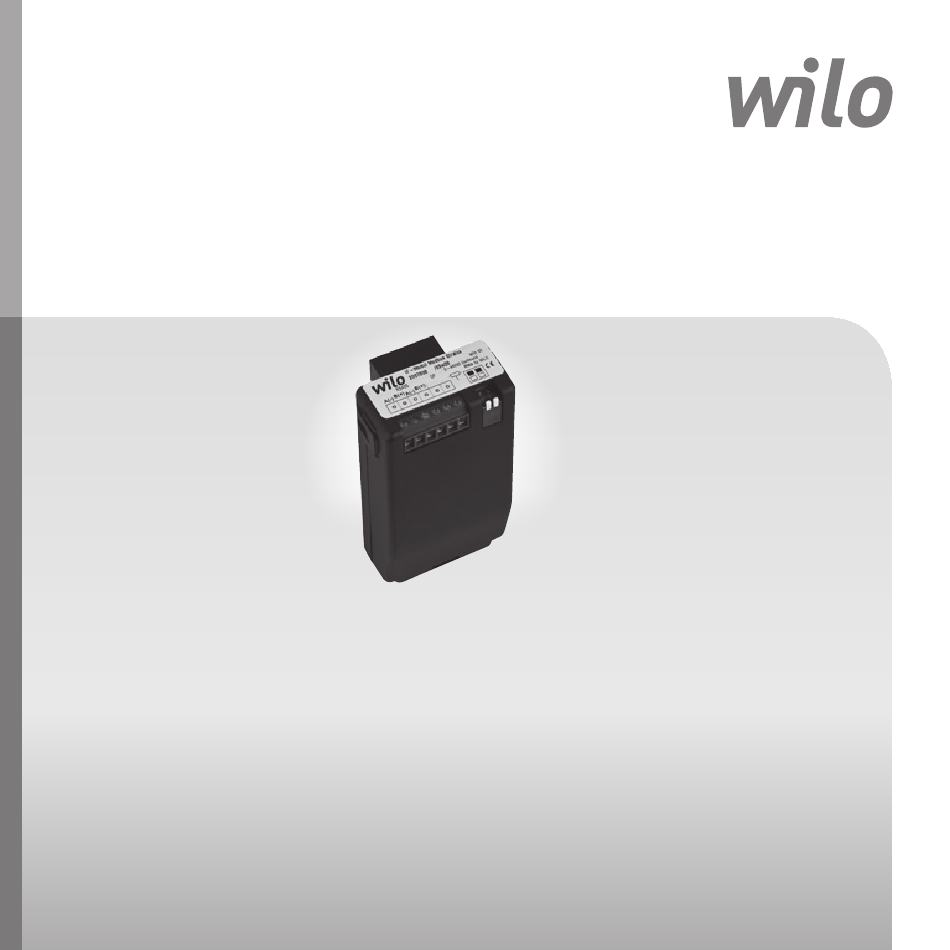

- Page 1 Pioneering for You Wilo-IF-Module Stratos RS485 en Installation and operating instructions 2 105 328-Ed.02 / 2013-11-Wilo...
- Page 3 Fig. 1:...
-
Page 5: Instrucciones De Instalación Y Funcionamiento
Einbau- und Betriebsanleitung Installation and operating instructions Notice de montage et de mise en service Instrucciones de instalación y funcionamiento Istruzioni di montaggio, uso e manutenzione... - Page 7 It is not only the general safety instructions listed under the main point “safety” that must be adhered to but also the special safety instructions with danger symbols included under the following main points. WILO SE 11/2013...
- Page 8 There is a risk of damage to the product/unit. 'Caution' implies that damage to the product is likely if this information is disregarded. NOTE: Useful information on handling the product. It draws attention to possi- ble problems. Installation and operating instructions Wilo-IF-Modules Stratos RS485...
- Page 9 Children must be kept under supervision in order to ensure that they do not play with the device. WILO SE 11/2013...
-
Page 10: Improper Use
The operating reliability of the supplied product is only guaranteed if the prod- uct/unit is used as intended in accordance with Section 4 of the operating instructions. The limit values must on no account fall under or exceed those specified in the catalogue/data sheet. Installation and operating instructions Wilo-IF-Modules Stratos RS485... -
Page 11: Transport And Interim Storage
CAUTION! Danger of damage to the IF-Module! Danger of damage due to incorrect handling during transportation and stor- age. The unit must be protected from moisture, frost and mechanical damage during transport and interim storage. WILO SE 11/2013... -
Page 12: Intended Use
Example: IF-Module Stratos Modbus Stratos IF-Module IF-Module = Interface module Stratos = Suitable for these series Modbus Model/function identifier: Modbus = RS485 interface, Modbus RTU protocol BACnet = RS485 interface, BACnet MS/TP protocol Installation and operating instructions Wilo-IF-Modules Stratos RS485... -
Page 13: Scope Of Delivery
1/8 unit load Input voltage Max. 12 V (differential A-B) Terminal resistance 120 Ω (integrated, switchable) Double pump interface (DP) Interface Wilo-specific, sustained short circuit protection, cannot be twisted out of place Voltage Max. 10 Vss Frequency Approx. 150 kHz Cable length Max. -
Page 14: Description And Function
6.1 Description of the IF-Modules The Stratos IF-Modules expand the pump to include communication interfaces in accordance with the RS485 standard and protocols as indicated by the type key. The modules also provide the connections for the double pump interface. -
Page 15: Installation
• Double pump: install DP module in the slave pump and insert the accompanying cable here • Strip and prepare the shield and the core wires (4c) • Insert the cable(s) (4d) • Screw the cable gland(s) into place (4e) Electrical connection follows (see section below). WILO SE 11/2013... - Page 16 Terminal numbering as shown in Fig. 1, (3) from bottom to top: Terminal No. Terminal Wire* A(-) B(+) A(-) White (WH) B(+) Blue (BU) Red (RD) Black (BK) * Connecting cable to the DP module (double pump only) Installation and operating instructions Wilo-IF-Modules Stratos RS485...
- Page 17 • Check the terminal box seal for any visible damage • Close the terminal box lid with the screws provided so that the seal is tight all around • Carry out commissioning / functional test in accordance with the following main section WILO SE 11/2013...
-
Page 18: General Settings
• Set the baud rate with parameter A in accordance with the following table: Parameter A Baud rate 1200 2400 4800 9600 19200 38400 57600 115200 Additional baud rates may be defined in the relevant protocol description. Installation and operating instructions Wilo-IF-Modules Stratos RS485... - Page 19 • C contains the two digits on the right (34h) • E contains the two digits in the middle (12h) • F contains the two digits on the left (00h) For example with the calc.exe program in the scientific view WILO SE 11/2013...
-
Page 20: Maintenance
• The pump should be electrically isolated and secured against unauthorised switch-on prior to any repair work. • Damage to the mains connection cables should always be rectified by a qual- ified electrician only. Installation and operating instructions Wilo-IF-Modules Stratos RS485... -
Page 21: Spare Parts
Wilo after-sales service point or representative. 11 Spare parts Spare parts may be ordered via a local specialist retailer and/or Wilo customer service. To avoid queries and incorrect orders, all data on the name plate should be sub- mitted with each order. - Page 23 T +971 4 880 91 77 ZLORLQIR#ZLORJU T +370 5 2136495 T +421 2 33014511 =,3 &RGH LQIR#ZLORDH PDLO#ZLOROW LQIR#ZLORVN T + 55 11 2923 (WILO) 9456 Hungary ZLOR#ZLOREUDVLOFRPEU :,/2 0DJ\DURUV]–J .IW Morocco Slovenia 7ªUªNE–OLQW WILO MAROC SARL...
- Page 24 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
