Summary of Contents for Wilo IF-Module Stratos

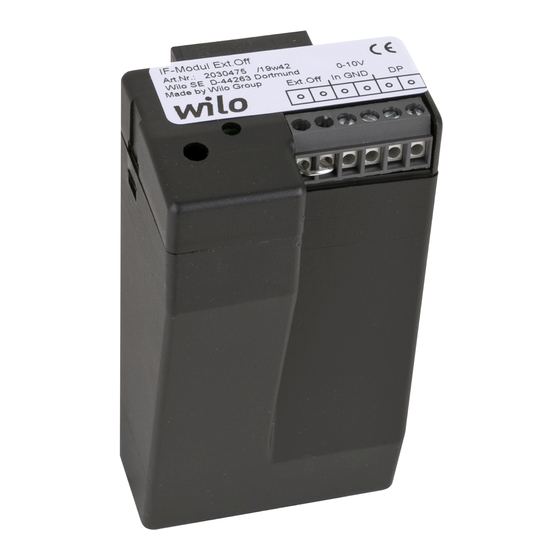

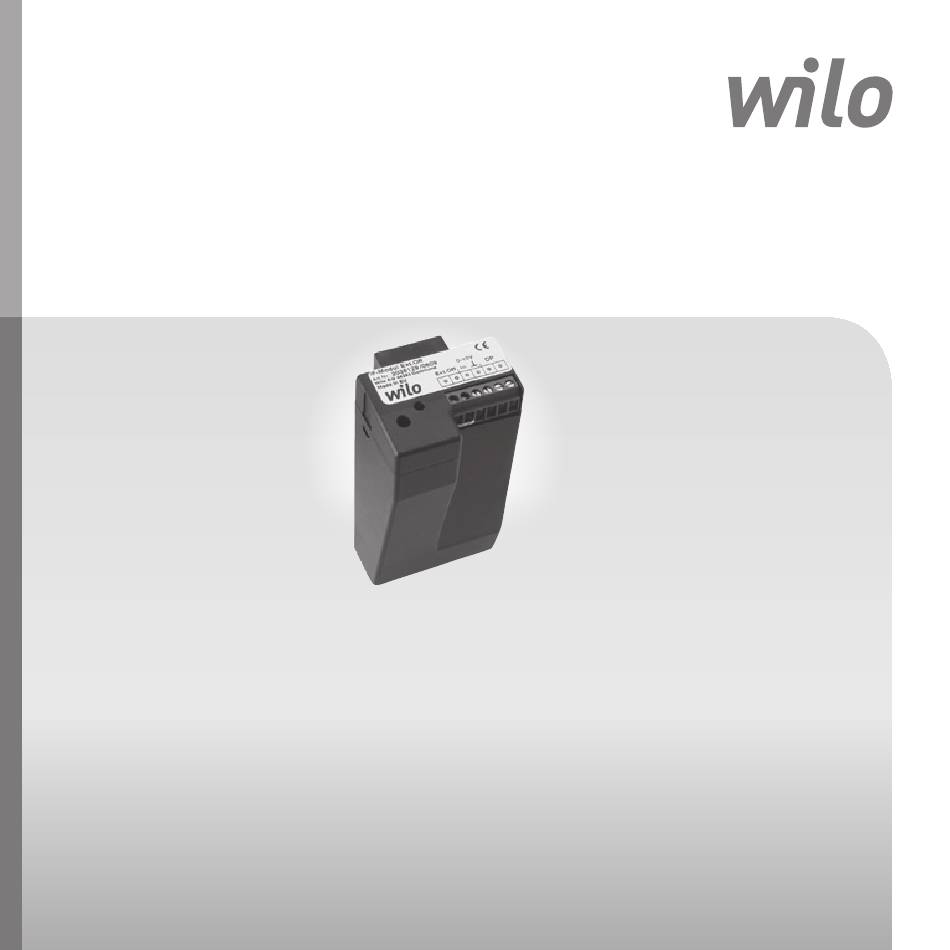

- Page 1 Pioneering for You Wilo-IF-Module Stratos en Installation and operating instructions 2 105 323-Ed.02 / 2013-11-Wilo...
- Page 3 Fig. 1: H max / n max H min / n min Off / Aus 10 U[V]...
- Page 4 Fig. 2:...
-
Page 5: Instrucciones De Instalación Y Funcionamiento
Einbau- und Betriebsanleitung Installation and operating instructions Notice de montage et de mise en service Instrucciones de instalación y funcionamiento Istruzioni di montaggio, uso e manutenzione... - Page 6 WILO SE 11/2013...
-
Page 7: About This Document
It is not only the general safety instructions listed under the main point “safety” that must be adhered to but also the special safety instructions with danger symbols included under the following main points. Installation and operating instructions Wilo-IF-Modules Stratos... - Page 8 There is a risk of damage to the product/unit. 'Caution' implies that damage to the product is likely if this information is disregarded. NOTE: Useful information on handling the product. It draws attention to possi- ble problems. WILO SE 11/2013...
- Page 9 Children must be kept under supervision in order to ensure that they do not play with the device. Installation and operating instructions Wilo-IF-Modules Stratos...
-
Page 10: Improper Use
The operating reliability of the supplied product is only guaranteed if the product is used as intended in accordance with Section 4 of the operating instructions. The limit values must on no account fall under or exceed those specified in the catalogue/data sheet. WILO SE 11/2013... -
Page 11: Transport And Interim Storage
CAUTION! Danger of damage to the IF-module! Danger of damage due to incorrect handling during transportation and stor- age. The unit must be protected from moisture, frost and mechanical damage during transport and interim storage. Installation and operating instructions Wilo-IF-Modules Stratos... -
Page 12: Intended Use
4 Intended use The Stratos IF-Modules are designed for external control and operating status signalling of pumps in the Wilo-Stratos series. The IF-Modules are not designed for proper safe deactivation of the pump. DANGER! Risk of injury and material damage! Using the control inputs for safety functions can lead to serious damage and injury. - Page 13 12 V DC, 10 mA Control input 0-10 V Version SELV, isolated Earth reference Shared with contact input Voltage range 0-10 V Input resistance > 100 k Accuracy 5 % absolute Dielectric strength 24 V DC Installation and operating instructions Wilo-IF-Modules Stratos...
-
Page 14: Scope Of Delivery
English Technical data Double pump interface (DP) Interface Wilo-specific, sustained short circuit protection, cannot be twisted out of place Voltage Max. 10 Vss Frequency Approx. 150 kHz Cable length Max. 3 m 5.3 Scope of delivery • IF-Module • Metal EMC cable gland Pg 9 (Pg 9 and Pg 7 in case of DP model) •... - Page 15 • Contact closed: pump operates under auto control. • Contact open: pump off. Ext. Min: Input for potential-free NC contact. • Contact closed: pump operates under auto control. • Contact open: pump operates at a fixed minimum speed. Installation and operating instructions Wilo-IF-Modules Stratos...
-
Page 16: Installation And Electrical Connection
The existing directives for accident prevention must be adhered to. Warning! Risk of fatal electrical shock! Danger from electrical current must be eliminated. Local directives or gen- eral directives [e.g. IEC, VDE etc.] and those of local power supply companies must be adhered to. WILO SE 11/2013... -
Page 17: Installation
• Install the accompanying metal EMC cable glands (4b) • Strip and prepare the shield and the core wires (4c) • Insert the cable (4d) • Screw the cable gland into place (4e) Electrical connection follows (see section below). Installation and operating instructions Wilo-IF-Modules Stratos... - Page 18 English 7.2 IF-Module Stratos DP Installation steps in accordance with Fig. 2: • Remove the lid of the pump's terminal box • Remove the cover (1) • Install the IF-Module in the pump's terminal box (2) • Push the connection plug in all the way (3) •...
- Page 19 English 7.3.1 IF-Module Stratos Ext. Off Terminal No. Terminal Ext. Off Ext. Off 0-10 V GND (for 0-10 V) • Check that the Ext. Off wires are free of interference voltage • Connect the Ext. Off wires to external devices •...
- Page 20 0-10 V GND (for 0-10 V) • Connect the SBM wires to external devices • Connect the wires to 0-10 V (make sure polarity is correct) 7.3.4 IF-Module Stratos Ext. Off/SBM Terminal No. Terminal Ext. Off Ext. Off WILO SE 11/2013...
- Page 21 • Check the terminal box seal for any visible damage • Close the terminal box lid with the screws provided so that the seal is tight all around • Carry out commissioning / functional test in accordance with the following main section Installation and operating instructions Wilo-IF-Modules Stratos...
- Page 22 • Input voltage to 2 V: pump runs; the displayed speed is the minimum speed 8.4 SBM output • Contact via Ext. Off terminals is closed (if installed) • Switch on the pump via the menu: symbol appears • SBM contact is closed WILO SE 11/2013...
-
Page 23: Maintenance
• Damage to the mains connection cables should always be rectified by a qual- ified electrician only. WARNING! Risk of scalding! At high fluid temperatures and system pressures, allow the pump to cool down first and then depressurise the system. Installation and operating instructions Wilo-IF-Modules Stratos... -
Page 24: Spare Parts
Wilo after-sales service point or representative. 11 Spare parts Spare parts may be ordered via a local specialist retailer and/or Wilo customer service. To avoid queries and incorrect orders, all data on the name plate should be sub- mitted with each order. - Page 25 T +971 4 880 91 77 ZLORLQIR#ZLORJU T +370 5 2136495 T +421 2 33014511 =,3 &RGH LQIR#ZLORDH PDLO#ZLOROW LQIR#ZLORVN T + 55 11 2923 (WILO) 9456 Hungary ZLOR#ZLOREUDVLOFRPEU :,/2 0DJ\DURUV]–J .IW Morocco Slovenia 7ªUªNE–OLQW WILO MAROC SARL...
- Page 26 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
