During operation

46
✓ Parameter input enabled: Menu 7.01 shows on.
1. Press the operating button for 3 s.
⇒ Menu 1.00 appears.
2. Turn the operating button until menu 3.00 appears
3. Press the operating button.
⇒ Menu 3.01 appears.
4. Press the operating button.
5. Change value to "on".
6. Press the operating button.
⇒ Value saved, pump enabled.
▶ Automatic mode switched on.
Make sure the following points are observed during operation:
• Keep the switchgear closed and secure it against unauthorised opening.
• Switchgear attached in an overflow-proof manner (protection class IP54).
• Not exposed to direct sunlight.
• Ambient temperature: -30 ... +50 °C.
The following items of information are shown on the main screen:
• Pump status:
–
Number of registered pumps
–
Pump activated/deactivated
–
Pump On/Off
• Operation with standby pump
• Operating mode: fill or drain
• Current water level or switching state of the float switch
• Active field bus operation
Furthermore, the following information is available via menu 4:
1. Press the operating button for 3 s.
⇒ Menu 1.00 appears.
2. Turn the operating button until menu 4 appears.
3. Press the operating button.
▶ Menu 4.xx appears.

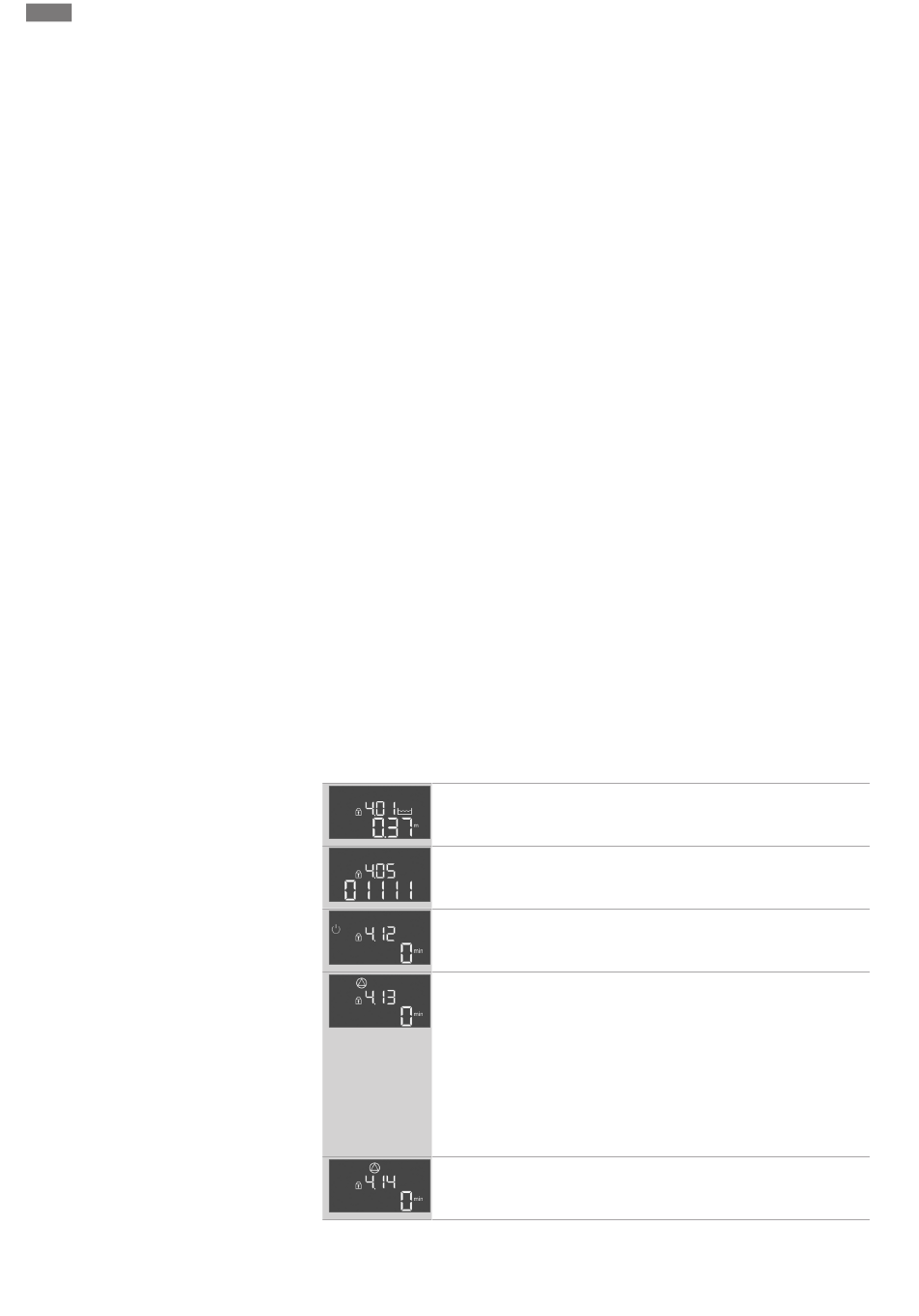

Current water level in m
Current switching state of the float switch
Switchgear running time
The time* is stated depending on the unit, in minutes (min), hours (h) or
days (d).
Running time: Pump 1
The time is stated in minutes (min), hours (h) or days (d) depending on
the unit. The display varies depending on the timespan:
• 1 hour: Display in 0 ... 59, unit: min
• 2 hours to 24 hours: Display in hours and minutes separated by a
decimal point, e.g. 10.59, unit: h
• 2 days to 999 days: Display in days and hours separated by a decimal
point, e.g. 123.7, unit: d
• From 1000 days: Display in days, unit: d
Running time: Pump 2
The time is stated in minutes (min), hours (h) or days (d) depending on
the unit.
