en
1
5
4
3

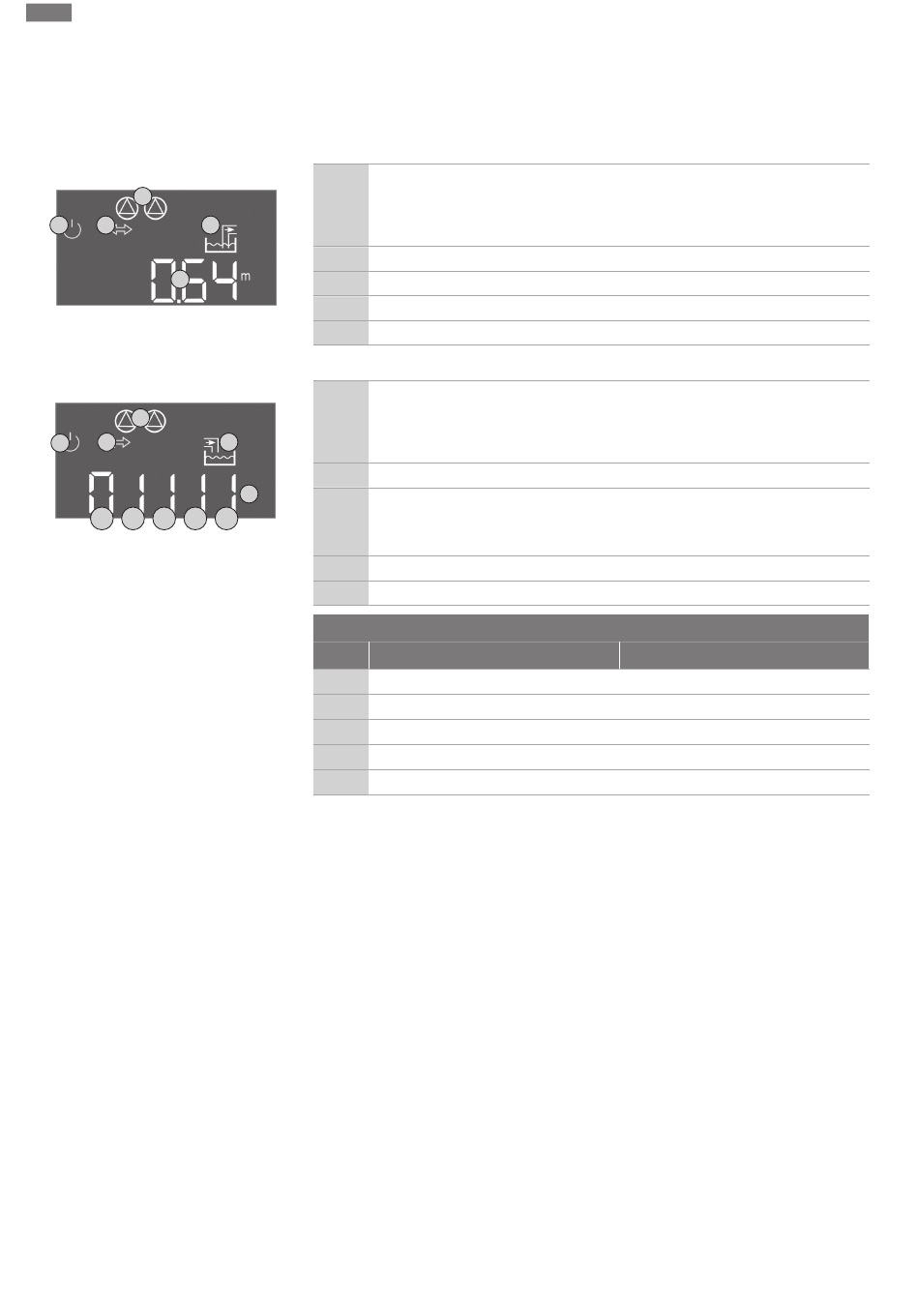

Fig. 29: Start screen: Level sensor/dynamic
pressure bell
1
5
4
3a
3b
3c
3d
Fig. 30: Start screen: Float switch/electrode
8.5

Start initial configuration

8.5.1
Enable parameter input
32
– The display illuminates and the start screen appears.
- The standby symbol appears in the display.
The switchgear is ready for operation. Start the initial configuration or automatic
mode.
Display with level sensor or dynamic pressure bell
1
Current pump status:
- Number of registered pumps
- Pump activated/deactivated
2
- Pumps On/Off
2
Set operating mode (e.g. drain)
3
Current water level in m
4
Standby: Switchgear is ready for operation.
5
Field bus active
Display with float switch or electrodes
1
Current pump status:
- Number of registered pumps
- Pump activated/deactivated
2
- Pumps On/Off
2
Set operating mode (e.g. fill)
3
3
Switching status of the float switch/electrode
3e
4
Standby: Switchgear is ready for operation.
5
Field bus active
Designation of the float switch/electrode depending on the operating mode
No.
drain
3a
High water level
3b
Pump 2 On
3c
Pump 1 On
3d
Pump 1 and 2 Off
3e
Dry-running level
Set the following parameters during initial configuration:
Enable parameter input.
Menu 5: Basic settings
Menu 1: Activation/deactivation values
Menu 2: Fieldbus connection (if available)
Menu 3: Enable pumps.
Set motor current monitoring.
Check the direction of rotation of the connected pumps.
Observe the following points during the configuration:
If there is no input or operation for 6 minutes:
the display illumination is switched off.
the display returns to the main screen.
parameter input is locked.
Some settings can only be adjusted when there is no pump in operation.
The menu is automatically adapted based on the settings. Example: The Menus 5.41 ...
5.43 are only visible when the "pump kick" function (Menu 5.40) is activated.
The menu structure is valid for all EC switchgears (e.g. HVAC, Booster, Lift, Fire, etc.).
This may lead to gaps in the menu structure.
As standard, the values are only displayed. To change the values, the parameter input in
Menu 7.01 must be enabled:
0 = Float switch open/electrode not immersed
1 = Float switch closed/electrode immersed
Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09
fill
High water level
Pump 1 and 2 Off
Pump 1 On
Pump 2 On
Min. level (low water)
