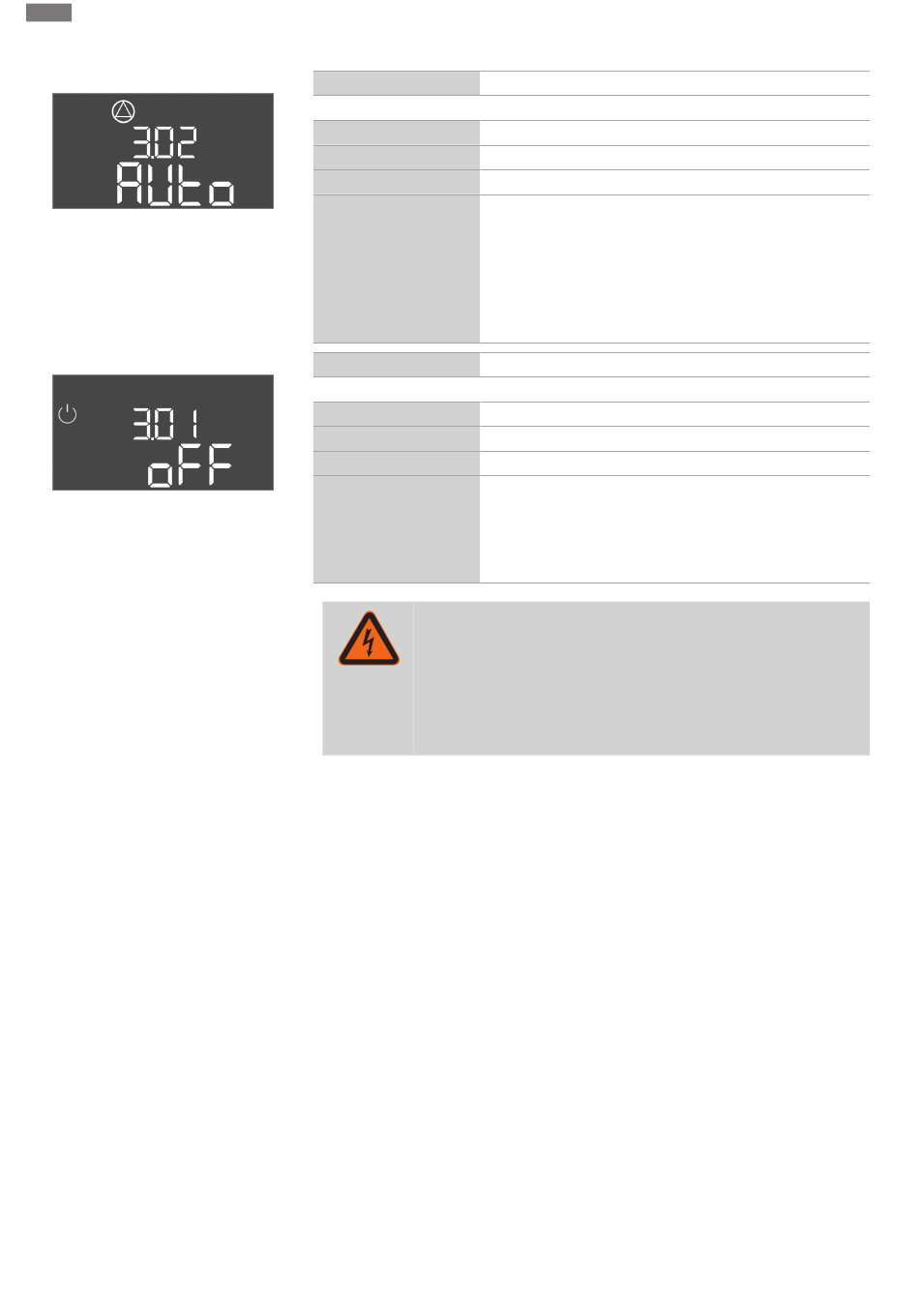

Fig. 70: Menu 3.02
Fig. 71: Menu 3.01
8.5.6 Adjust motor current monitoring
44
• Enable pumps: Set menu 3.01 to "on".
Menu no.
Software version: All
Description
Value range
Factory setting
Explanation
Menu no.
Software version: All
Description
Value range
Factory setting
Explanation
DANGER
Risk of fatal injury due to electrical current!
There is a risk of fatal injury when performing work on the open
switchgear! The components carry current!
• Have work carried out by a qualified electrician.
• Avoid contact with earthed metal parts (pipes, frames etc.).
Indicate the actual value of the motor current monitoring
1. Press the operating button for 3 s.
⇒ Menu 1.00 appears.
2. Turn the operating button until menu 4.00 appears.
3. Press the operating button.
⇒ Menu 4.01 appears.
4. Turn the operating button until menu 4.25 to 4.27 appears.
⇒ Menu 4.25: Shows the set motor current for pump 1.
⇒ Menu 4.26: Shows the set motor current for pump 2.
⇒ Menu 4.27: Shows the set motor current for pump 3.
▶ Actual value of the motor current monitoring checked.
Compare the set value with the specification on the rating plate. If the set value dif-
fers from the specification on the rating plate, adjust the value.
Adjust the motor current monitoring value
✓ Motor current monitoring settings checked.
1. Turn the operating button until menu 4.25 to 4.27 appears.
⇒ Menu 4.25: Shows the set motor current for pump 1.
⇒ Menu 4.26: Shows the set motor current for pump 2.
⇒ Menu 4.27: Shows the set motor current for pump 3.
Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09
3.02 ... 3.04
Pump 1 ... Pump 3 operating mode
off, Hand, Auto
Auto
• off = pump switched off
• Hand = manual operation pump, as long as the button is
pressed.
• Auto = level-control-dependent automatic operation of the
pump
NOTICE! Change the value to "off" for the initial configura-
tion!
3.01
Enable pumps
on, off
off
• off = pumps are locked and cannot be started.
NOTICE! Manual operation or forced switch-on are also
not possible!
• on = pumps are switched on/off, depending on the operat-
ing mode set
