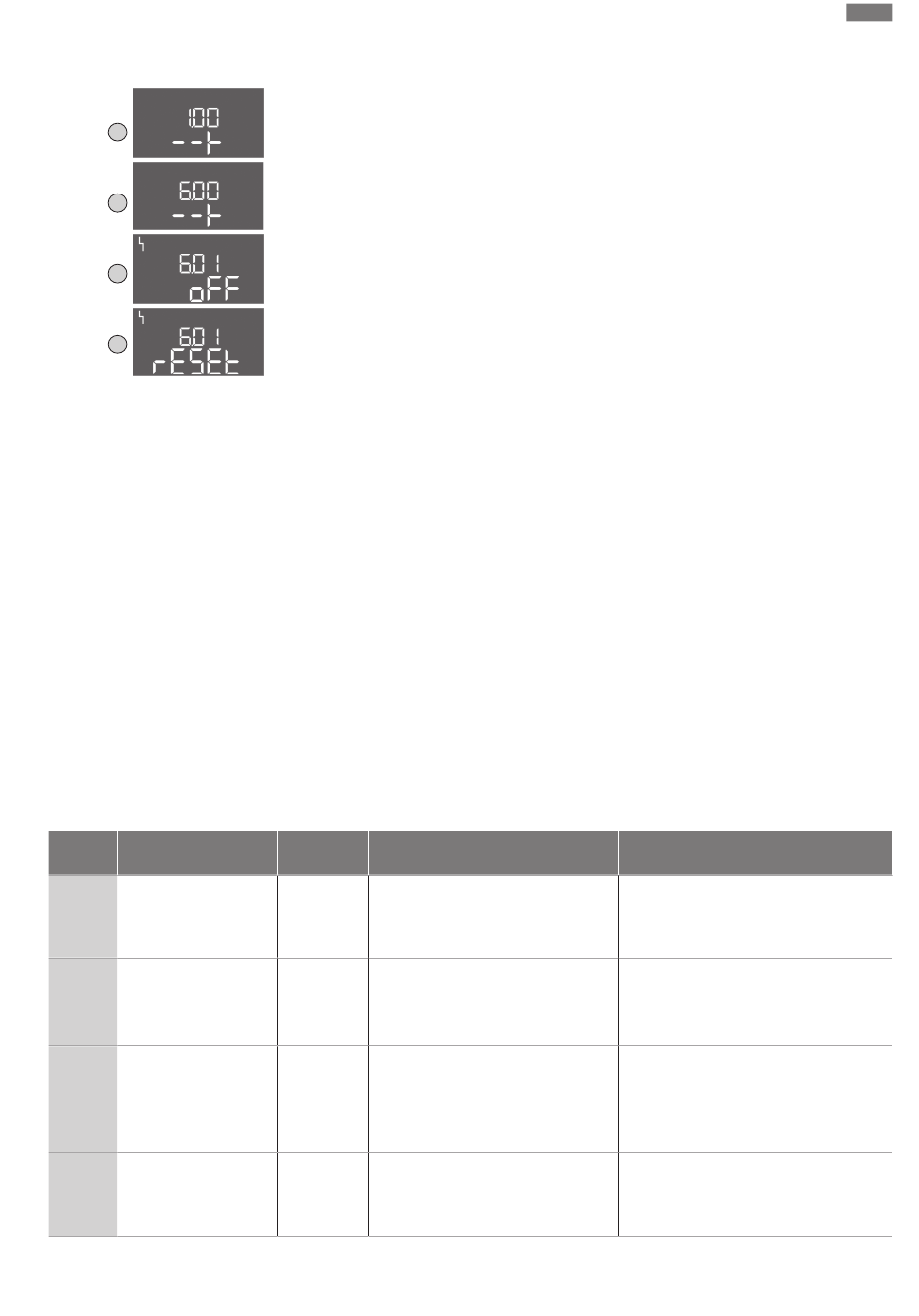

Fig. 75: Acknowledge fault
11.4

Fault memory

11.5

Error codes

Code* Fault
E006 Rotating field error
E014.x Leakage detection
E040 Fault, level sensor
E062 Dry-running protection
active** / min. water
level active**
E066 High water alarm active
Installation and operating instructions • Wilo-Control EC-L • Ed.04/2022-09
Main menu
✓ All faults rectified.
1. Press the operating button for 3 s.
⇒ Menu 1.00 appears.
2. Turn the operating button until menu 6 appears.
3. Press the operating button.
⇒ Menu 6.01 appears.
4. Press the operating button.
5. Change the value to "reset": Turn the operating button.
6. Press the operating button.
▶ The fault indication is reset.
Easy Actions menu
✓ All faults rectified.
1. Starting the Easy Actions menu: Turn the operating button 180°.
2. Select menu item "Err reset".
3. Press the operating button.
▶ The fault indication is reset.
Fault acknowledgement failed
If there are further faults, the faults are displayed as follows:
• The fault LED lights up.
• The error code of the last fault is shown in the display.
All other faults can be called up from the fault memory.
If all faults have been rectified, acknowledge the faults again.
The switchgear stores the last ten faults in the fault memory. The fault memory works ac-
cording to the first in/first out principle. The faults are displayed in descending order in the
menu items 6.02 to 6.11:
• 6.02: the last/latest fault
• 6.11: the oldest fault
The functions may operate differently depending on the software version. That is why a
software version is included with every error code.
The details regarding the software version used can be read on the rating plate or displayed
via menu 4.24.
Software Cause
version
all • Incorrect rotating field
• Operation via single-phase current
connection
all The moisture probe of the connected
pump was tripped.
all No connection to the sensor
all • Operating mode "drain":
Dry-running level reached
• Operating mode "fill":
Min. water level, below minimum
value
all High water level reached
Remedies
• Establish a clockwise rotating field at the
mains connection.
• Deactivate rotating field monitoring
(menu 5.68)!
See the installation and operating instruc-
tions of the connected pump
Check the connection cable and sensor. Re-
place the defective component.
• Check inlet and system parameters.
• Check that the float switch is working
correctly, replace the defective compo-
nent.
• Check inlet and system parameters.
• Check that the float switch is working
correctly, replace the defective compo-
nent.
